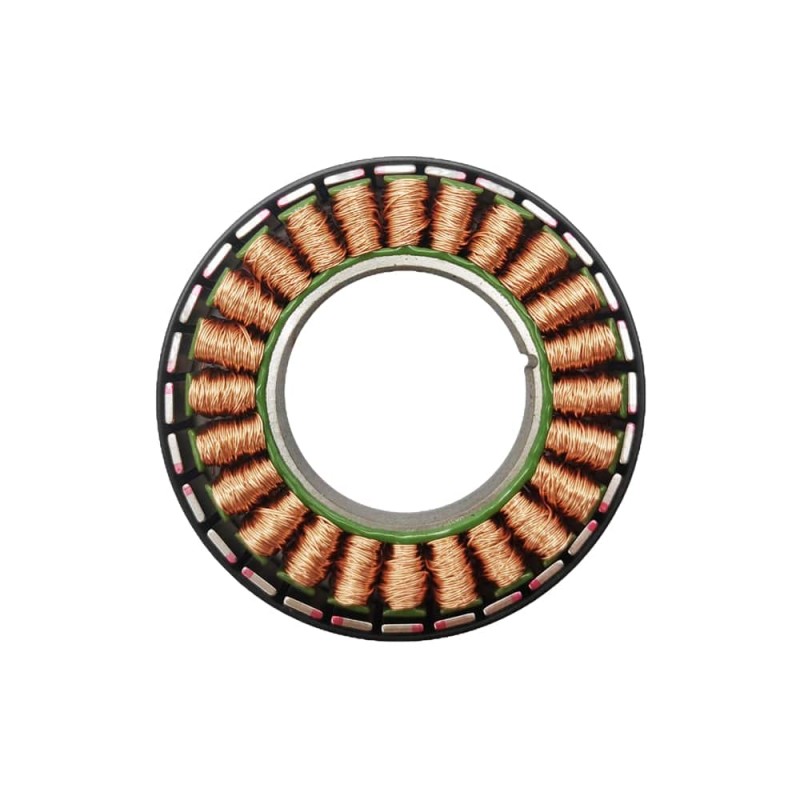

WK6010 Frameless Outer Rotor DC Motor 24V 1.19A 0.73Nm 182RPM
- Part Number: WK6010
- Lead Time: One Week
- Unit Price: $45.00
- Sales: 3
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
The frameless motor is an electric motor that is designed without a housing, shaft, bearings, or end bells. It consists solely of the rotor (the rotating part with permanent magnets) and the stator (the stationary part with windings). Frankhumotor's WK series framless outer rotor dc motor can be be directly integrated into the mechanical structure of the machine or device it powers. They are ideal for applications where compactness, high performance, and efficient integration are crucial such as robotics, aerospace and aviation, medical equipment, etc.
Key Features:
- Number of Phase: 3
- Rated Voltage: 24VDC
- Maximum Speed: 275RPM
- Rated Speed: 182RPM
- Rated Current: 1.19A
- Rated Torque: 0.73Nm
- Insulation Class: B
- Weight: 0.16KG
Contact Us
| Electrical Specification | |
| Phase Number | 3 |
| Rated Speed(RPM) | 294 |
| Rated Torque(Nm) | 0.8 |
| Drive Integrated | No |
| Input Voltage(V) | 36 |
| Encoder Feedback | No |
