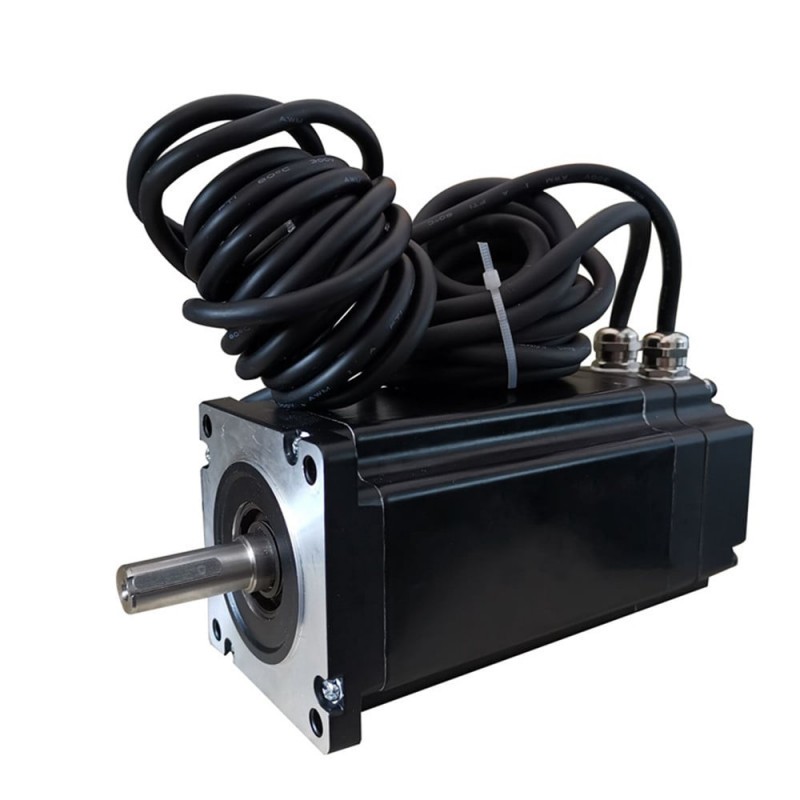

This NEMA 34 stepper motor has a optimal holding torque output 8.5Nm/1207oz.in with 1000CPR optical encoder, which can acheieve a closed-loop system. A protection level IP65 is perfectly designed and sealed for this stepper motor so it can be protected well against dust and wet situation. A higher IP protection such as IP67 and IP68 can be customzied.

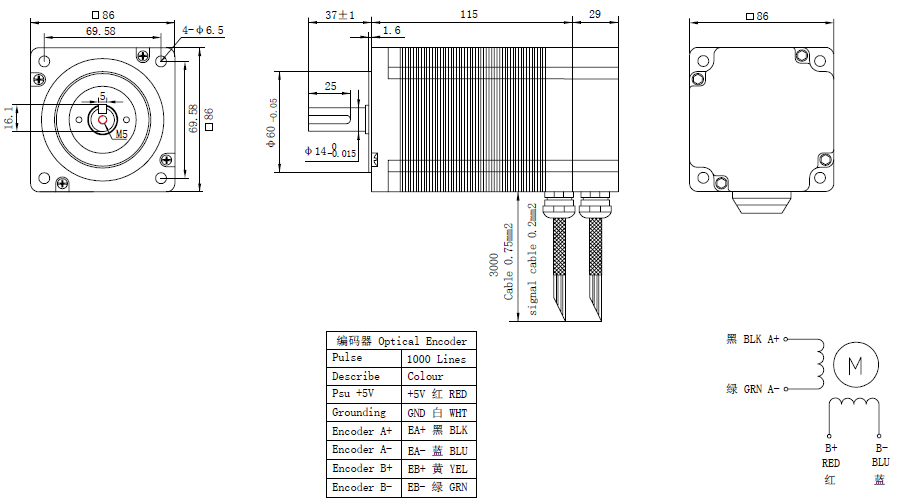

Motor Specification
- Part Number: 86IP65-85E
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 8.5Nm(1207oz.in)
- Rated Current: 6.0A
- Frame Size: 86x86mm
- Body Length: 115mm
- Shaft Diameter: Φ14mm
- Shaft Length: 37mm
- Keyway Length: 25mm
- Number of Leads: 4
- Lead Length: 3000mm
- Protection Level: IP65
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000CPR
- Encoder Signal Channels: 2
- No. of Leads: 6
- Lead Length: 3000mm
- Supply Voltage: 5.0V
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 8.5 |
| Holding Torque(oz.in) | 1207 |
| Rated Current(A) | 6.0 |
| Driving Voltage(VDC) | 24-110 |
| Encoder Specification | |
| Encoder Resolution(CPR) | 1000 |
| Encoder Type | |
| Supply Voltage(VDC) | 5.0 |
