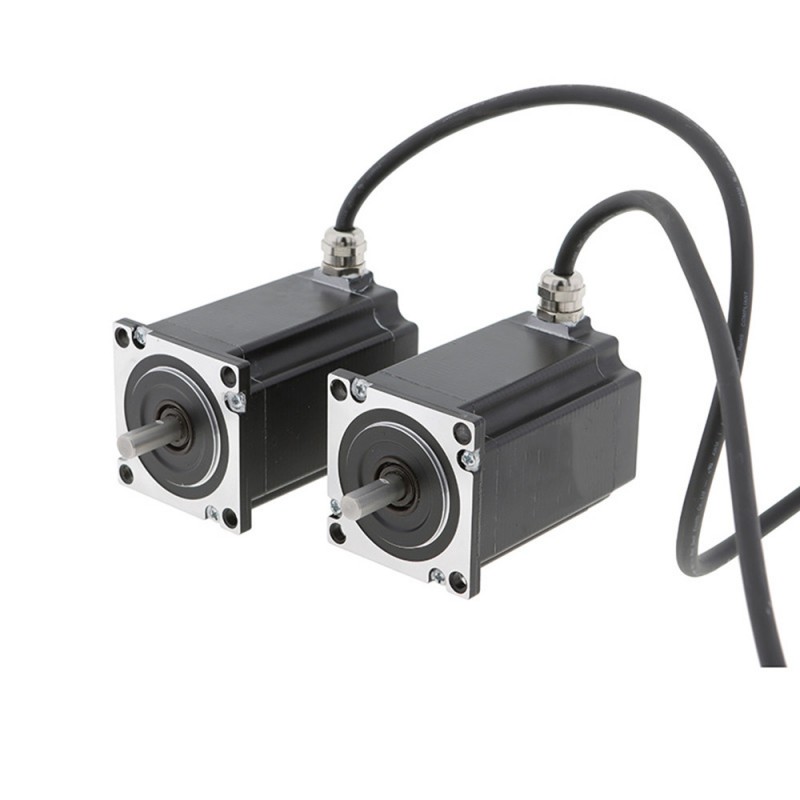

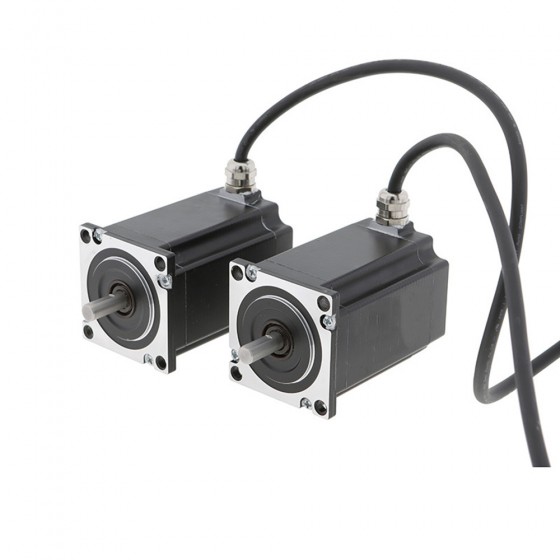

This size 57mm NEMA 23 stepper motor has 1.5Nm/213oz.in holding torque with an IP65 waterproof rating, which means this IP65 stepper motor can be fully protected against dust, and also can be protected against low pressure jets if water from all directions and limited ingress permitted. Frankhumotor also provides higher protective levels IP67 and IP 68 if necessary.
Electrical Specification
- Part Number: 57HS65-IP65
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 1.5Nm/213oz.in
- Rated Current/phase: 4.0A
- Phase Resistance: 0.47ohms
- Inductance: 1.4mH
- Driving Voltage: 24-72V

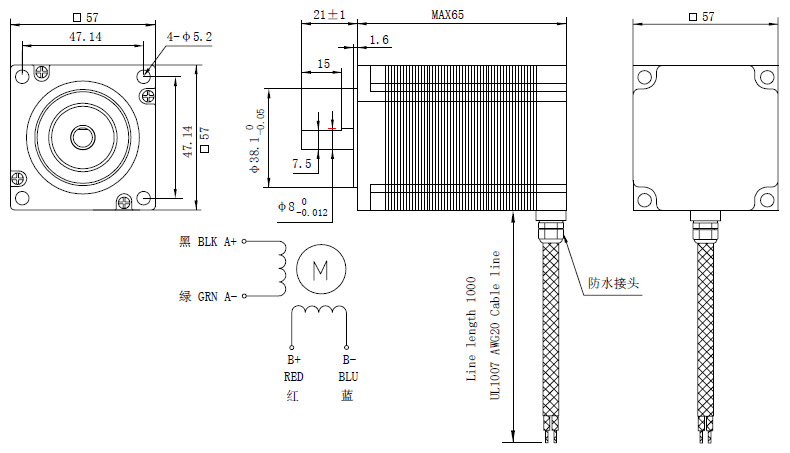

Physical Specification
- Frame Size: 57x57mm
- Body Length: 65mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-cut Length: 15
- No. of Leads: 4
- Lead Length: 1000mm
- Waterproof Level: IP65
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 1.5 |
| Holding Torque(oz.in) | 213 |
| Rated Current(A) | 4.0 |
| Phase Resistance(ohm) | 0.47 |
| Phase Inductance(mH) | 1.4 |
| Physical Specification | |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 65 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| Waterproof Level | IP65 |
| No. of Leads | 4 |
| Lead Length(mm) | 1000 |
