SMT Stepper Servo Motor Hollow Shaft NEMA 14 0.13Nm/18.46oz.in 35x32.5mm with 2500CPR Encoder
- Part Number: 35HS32-1504E-SMT
- Lead Time: In Stock
- Unit Price: $99.00
- Sales: 3
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

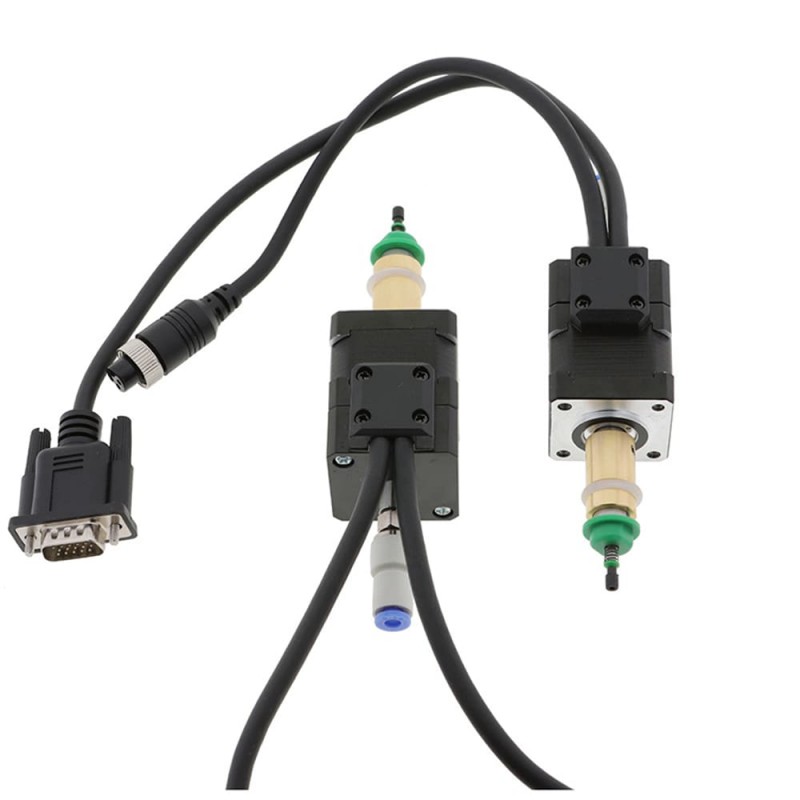

This SMT mounter kit is composed of a size 35mm NEMA 14 hollow shaft stepper servo motor 2500CPR incremental encoder with JUKI nozzles and a rotary trachea. It is specially designed for SMT Machine.
Electrical Specification
- Part Number: 35HS32-1504E-SMT
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.13Nm/18.46oz.in
- Rated Current/phase: 1.5A
- Phase Resistance: 1.8ohms
- Inductance: 1.9mH
- Driving Voltage: 12-24V

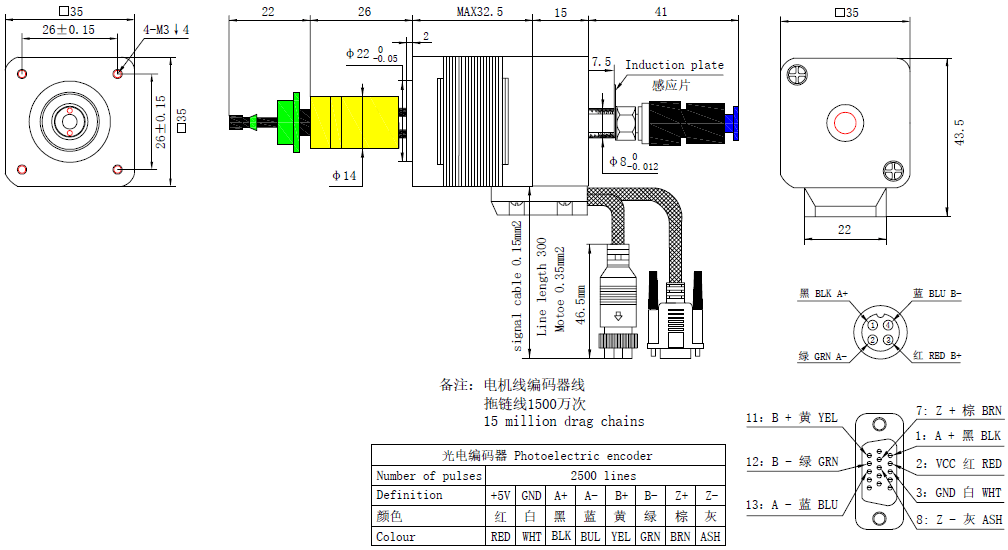

Physical Specification
- Frame Size: 35x35mm
- Body Length: 32.5mm
- Outer Shaft Diameter: Φ8.0mm
- Inner Shaft Diameter: Φ3.7mm
- Front Shaft Length: 16.0mm
- Rear Shaft Length: 7.5mm
- Number of Leads: 4
- Lead Length: 300mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 2500CPR
- Encoder Signal Channels: 3
- No. of Leads: 8
- Lead Length: 300mm
- Supply Voltage: 5.0V
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.13 |
| Holding Torque(oz.in) | 18.46 |
| Rated Current(A) | 1.5 |
| Frame Size(mm) | 35x35 |
| Body Length(mm) | 32.5 |
| Front Shaft Length(mm) | 16 |
| Rear Shaft Length(mm) | 7.5 |
| Driving Voltage(VDC) | 12-24 |
| Encoder Specification | |
| Encoder Resolution(CPR) | 2500 |
| Encoder Type | Incremental |
| Supply Voltage(VDC) | 5.0 |
JUKI Nozzle
