SMT Stepper Motor Hollow Shaft NEMA 8 0.04Nm/5.68oz.in 20x38mm with JUKI Nozzle
- Part Number: 20HS38-0604K-SMT
- Lead Time: In Stock
- Unit Price: $50.00
- Sales: 122
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

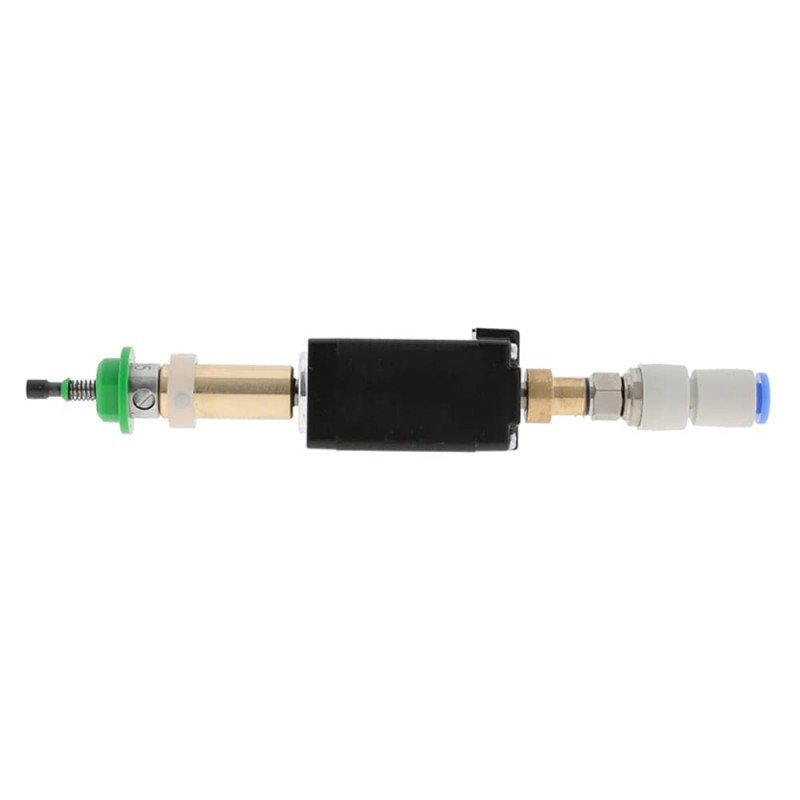

This SMT mounter kit is composed of a size 20mm NEMA 8 hollow shaft stepper motor with JUKI nozzles and a rotary trachea. It is specially designed for SMT Machine.
Electrical Specification
- Part Number: 20HS38-0604K-SMT
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.04Nm/5.68oz.in
- Rated Current/phase: 0.6A
- Phase Resistance: 12.5ohms
- Inductance: 5.5mH
- Driving Voltage: 12-24V

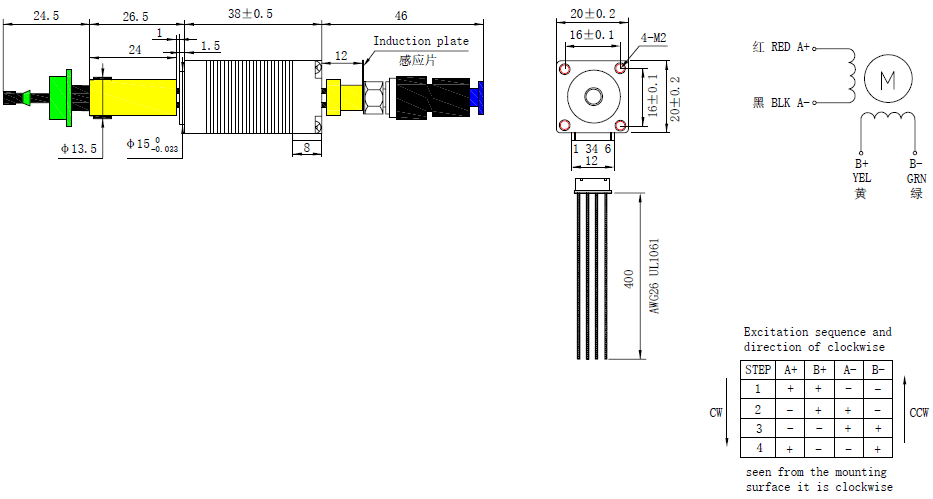

Physical Specification
- Frame Size: 20x20mm
- Body Length: 38mm
- Outer Shaft Diameter: Φ5.0mm
- Inner Shaft Diameter: Φ2.5mm
- Front Shaft Length: 12mm
- Rear Shaft Length: 8mm
- Number of Leads: 4
- Lead Length: 400mm
- Weight: 0.08kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.04 |
| Holding Torque(oz.in) | 5.68 |
| Rated Current(A) | 0.6 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | 20x20 |
| Body Length(mm) | 38 |
| Inner Shaft Diameter(mm) | 2.5 |
| Outer Shaft Diameter(mm) | 5.0 |
| Front Shaft Length(mm) | 12 |
| Rear Shaft Length(mm) | 8 |
| No. of Leads | 4 |
| Lead Length(mm) | 400 |
| Weight(KG) | 0.08 |

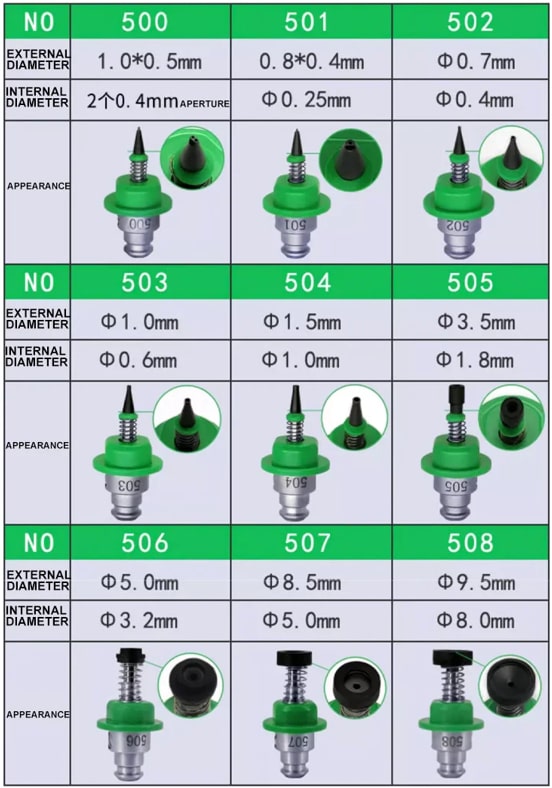

JUKI 50 series nozzles
