SMT Stepper Motor Hollow Shaft NEMA 11 0.07Nm/9.94oz.in 28x33mm with YAMAHA Nozzle
- Part Number: 28HS33-1004C-SMT
- Lead Time: In Stock
- Unit Price: $75.00
- Sales: 12
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

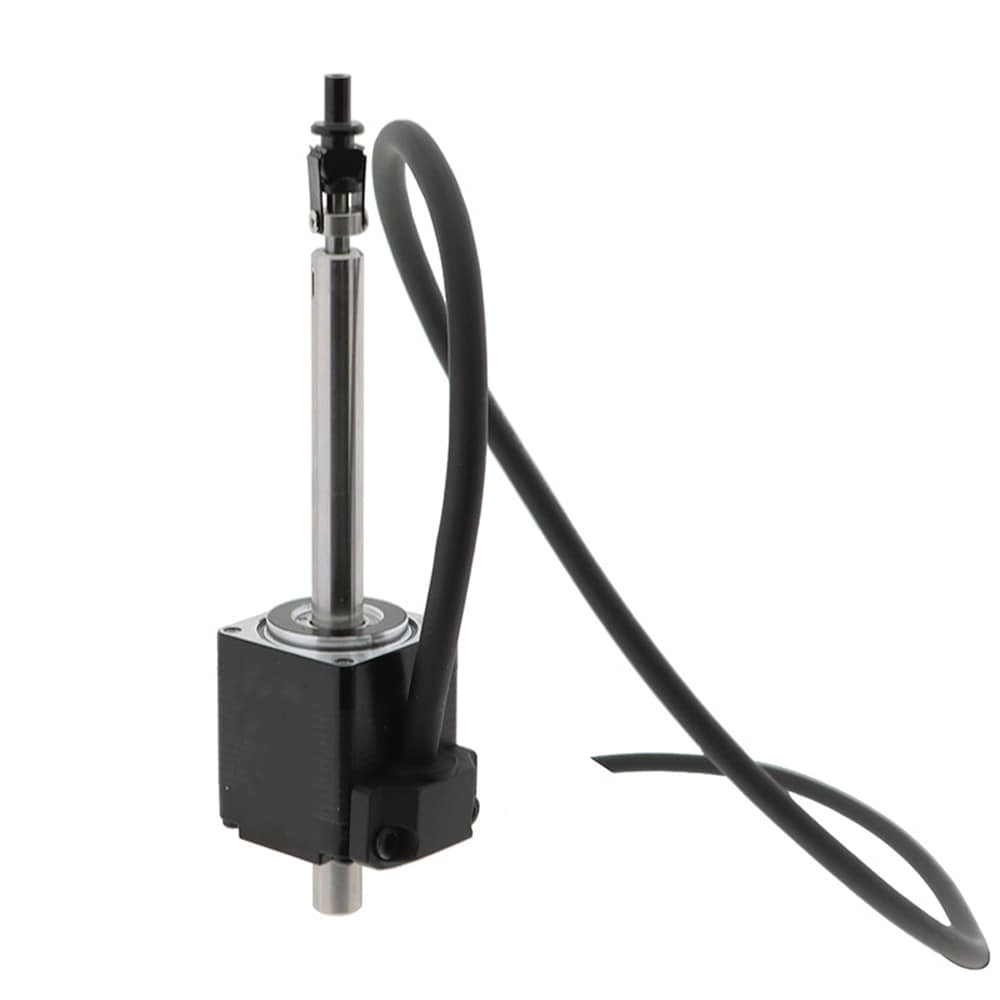

This SMT mounter kit is composed of a size 28mm NEMA 11 hollow shaft stepper motor with YAMAHA nozzle. It is specially designed for SMT Machine.
Electrical Specification
- Part Number: 28HS33-1004C-SMT
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.07Nm/9.94oz.in
- Rated Current/phase: 1.0A
- Phase Resistance: 2.6ohms
- Inductance: 2.4mH
- Driving Voltage: 12-24V

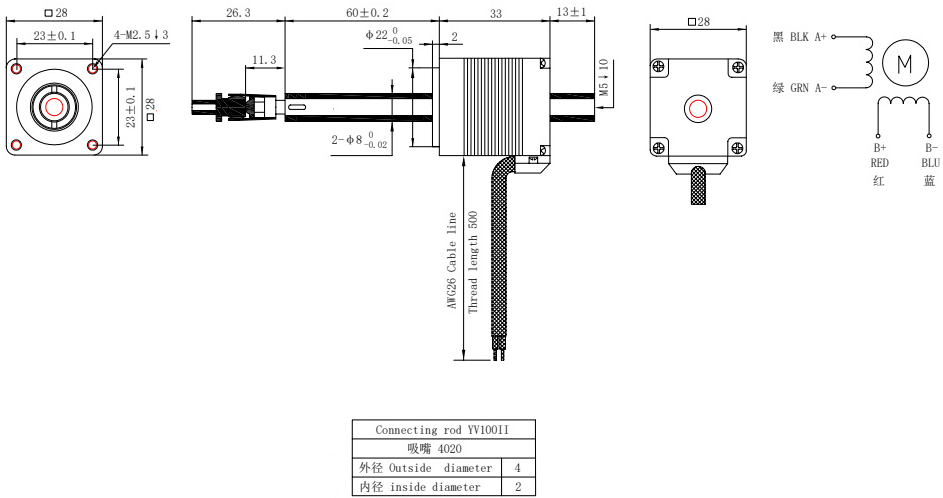

Physical Specification
- Frame Size: 28x28mm
- Body Length: 33.2mm
- Outer Shaft Diameter: Φ8.0mm
- Inner Shaft Diameter: Φ4.2mm
- Front Shaft Length: 60mm
- Rear Shaft Length: 13mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.14kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.07 |
| Holding Torque(oz.in) | 9.94 |
| Rated Current(A) | 1.0 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | 28x28 |
| Body Length(mm) | 33 |
| Inner Shaft Diameter(mm) | 4.2 |
| Outer Shaft Diameter(mm) | 8.0 |
| Front Shaft Length(mm) | 60 |
| Rear Shaft Length(mm) | 13 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.14 |
