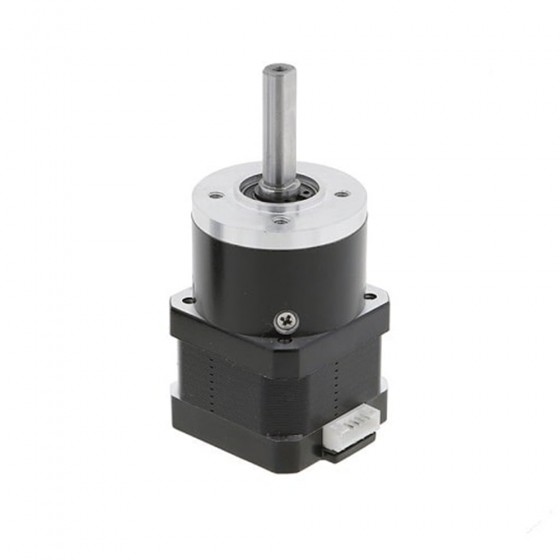

Robot Geared Motor NEMA 17 Stepper L=34mm 1.33A with Gear Ratio 10:1 Precision Short Planetary Gearbox
- Part Number: 42AI34-1334S-HCG10
- Lead Time: In Stock
- Unit Price: $80.00
- Sales: 7
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 17 geared reduction stepper motor has a moderate body length 34mm and 1.33A rated current and is integrated with a high precision & low backlash short planetary gearbox of 10:1 gear ratio, which generates a strong holding torque otuput upto 2.8Nm/397.6oz.in & a very low speed 0-100rpm. It's an ideal solution to the applications that require limited space but low speed and high torque.
Motor Specification
- Part Number: 42AI34-1334S-HCG10
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.3Nm/42.6oz.in
- Rated Current/phase: 1.33A
- Frame Size: 42x42mm
- Motor Length: 34mm
- Number of Leads: 4
- Lead Length: 1000mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 10:1
- Efficiency: 96%
- Backlash at No-load: <=15arcmin
- Rated Torque: 8Nm/1136oz.in
- Gearbox Length: 28mm
- Shaft Diameter: Φ8mm
- Shaft Length: 32mm
- D-cut Length: 29mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.3 |
| Holding Torque(oz.in) | 42.6 |
| Rated Current(A) | 1.33 |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 34 |
| Driving Voltage(VDC) | 12-24 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 10:1 |
| Efficiency | 96% |
| Backlash at No-load | 15arcmin |
| Gearbox Length(mm) | 28 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 32 |
