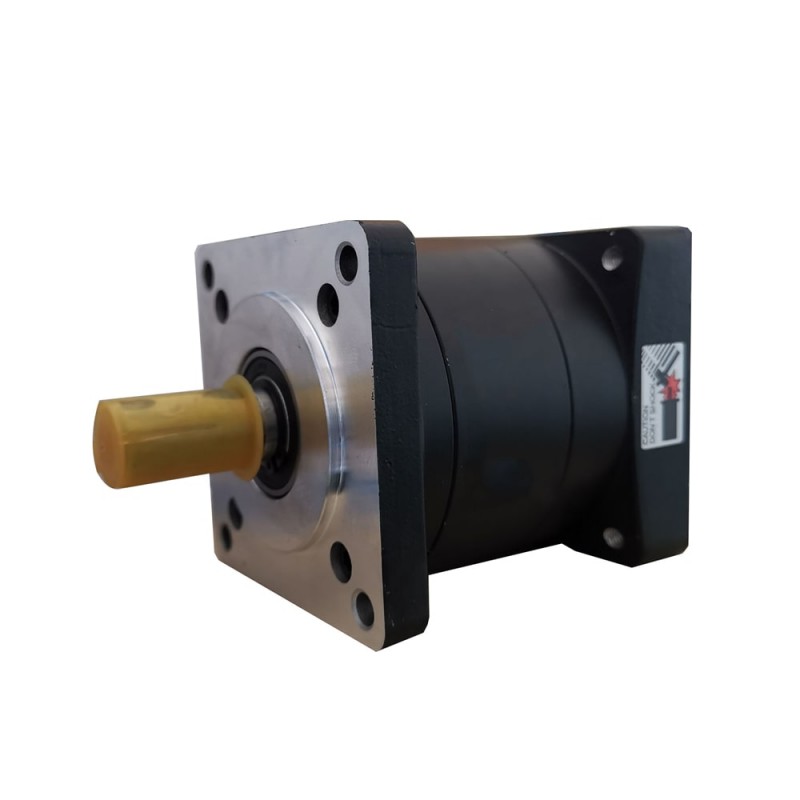

Precision Planetary Gearbox Gear Ratio 10:1 Backlash 35arc-min for 80mm Servo Motor
- Part Number: MA80-G10
- Lead Time: One Week
- Unit Price: $80.00
- Sales: 3
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 80mm precision planetary gearbox has a gear ratio 10:1 and a maximum 25arcmin low backlash. And this in-line planetary reducer has a built-in input shaft coupling so it can commonly match the 80 servo motor with a diameter of 19mm and a shaft length of 30-40mm or other motors who also has the same flange frame size. It's an excellent solution to applications that require good accuracy and reliability at an exceptional value.
Specifications
- Part Number: MA80-G10
- Gearbox Type: Planetary
- Gear Ratio: 10:1
- Efficiency: 94%
- Backlash at No-load: <=25arcmin
- Rated Torque: 50Nm
- Noise: <=60dB
- Waterproof Rating: IP65
- Lifetime: 20,000 hours
- Frame Size: 80x80mm
- Gearbox Length: 96mm
- Output Shaft Type: Keyway
- Output Shaft Diameter: Φ16mm
- Output Shaft Length: 36mm
- Input Shaft Diameter: Φ19mm
- Input Shaft Length: 30-40mm
Contact Us
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 10:1 |
| Efficiency | 94% |
| Backlash at No-load | 25arcmin |
| Frame Size(mm) | 80x80 |
| Gearbox Length(mm) | 96 |
| Input Shaft Diameter(mm) | 19 |
| Input Shaft Length(mm) | 30-40 |
| Output Shaft Diameter(mm) | 16 |
| Output Shaft Length(mm) | 36 |
| Output Shaft Type | Keyway |

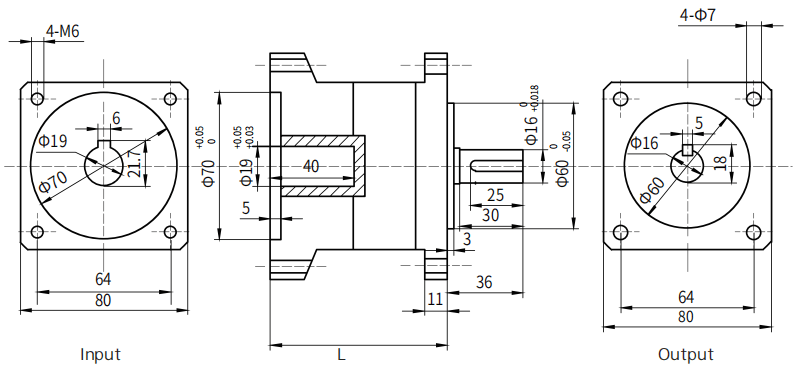

L=96mm
