Precision Planetary Gearbox Gear Ratio 10:1 Backlash 25arc-min for NEMA 34 Motor

  • Part Number: MGL34-G10
  • Lead Time: One Week
  • Unit Price: $85.00
  • Sales: 7

  • *Ship from China

- +
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

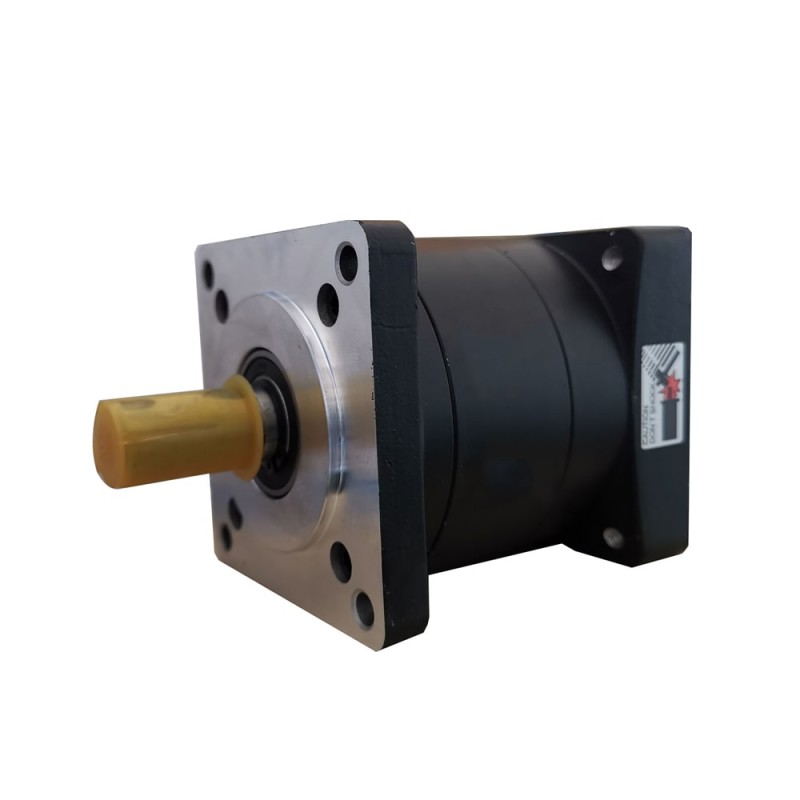

This size 86mm precision planetary gearbox has a gear ratio 10:1 and a maximum 25arcmin low backlash. And this NEMA 34 in-line planetary reducer has a built-in input shaft coupling so it can commonly match the NEMA 34 stepper motor/Brushless Motor with a diameter of 14mm and a shaft length of 30-37mm or other motors who has the same frame size. It's an excellent solution to applications that require good accuracy and reliability at an exceptional value.

Specifications

  • Part Number: MGL34-G10
  • Gearbox Type: Planetary
  • Gear Ratio: 10:1
  • Efficiency: 94%
  • Backlash at No-load: <=25arcmin
  • Rated Torque: 50Nm
  • Noise: <=60dB
  • Waterproof Rating: IP65
  • Lifetime: 20,000 hours
  • Frame Size: 86x86mm
  • Gearbox Length: 94mm
  • Output Shaft Type: Keyway
  • Output Shaft Diameter: Φ16mm
  • Output Shaft Length: 35mm
  • Input Shaft Diameter: Φ14mm
  • Input Shaft Length: 30-37mm

Contact Us

Gearbox Specification
Gearbox TypePlanetary
Gear Ratio10:1
Efficiency94%
Backlash at No-load25arcmin
Frame Size(mm)86x86
Gearbox Length(mm)94
Input Shaft Diameter(mm)14
Input Shaft Length(mm)30-37
Output Shaft Diameter(mm)16
Output Shaft Length(mm)35
Output Shaft TypeKeyway
  • All(0)
  • Good(0)
  • Fair(0)
  • Poor(0)
  • Image(0)

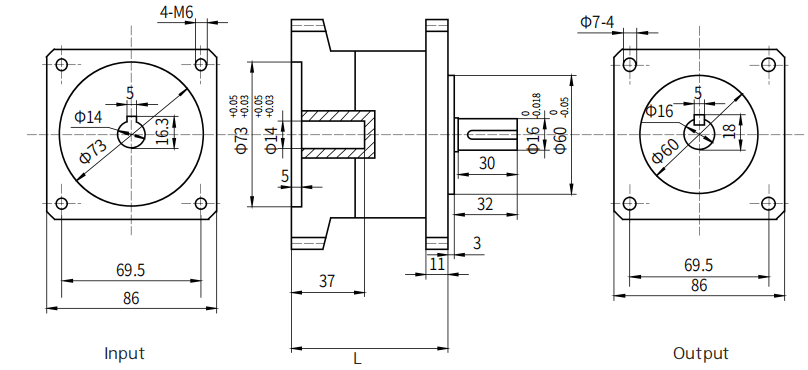

L=94mm
