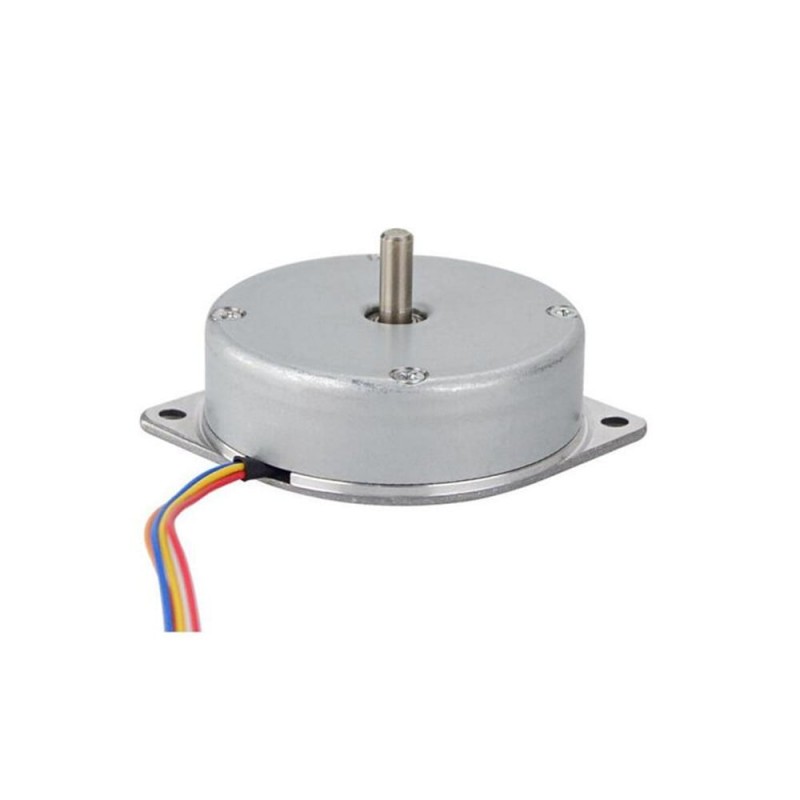

This NEMA 18 pancake stepper motors have one thin body 16mm and 4 wires, each phase drawing current 1.0A with holding torque 0.1Nm/14.2oz.in.
Electrical Specification
- Part Number: 46HR16-1004S
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.1Nm/14.2oz.in
- Rated Current/phase: 1.0A
- Phase Resistance: 3.2ohms
- Inductance: 2.7mH
- Driving Voltage: 12-24V

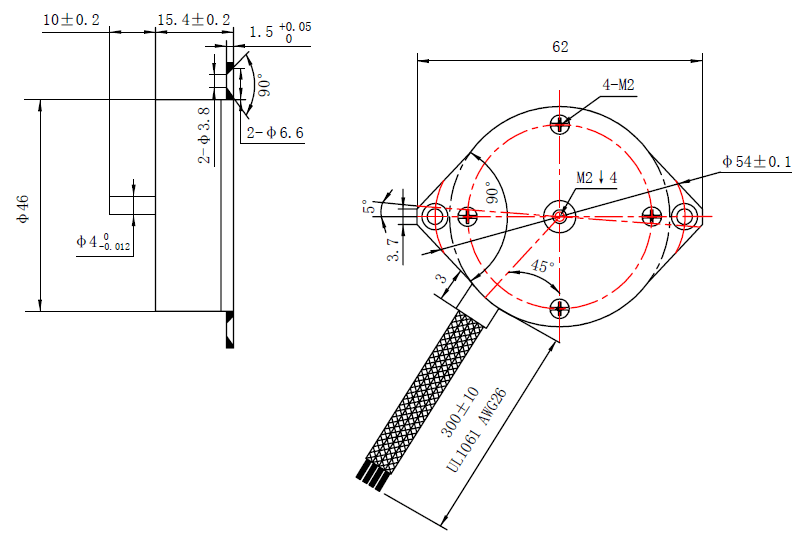

Physical Specification
- Frame Size: Φ46mm
- Body Length: 15.4mm
- Shaft Type: Round
- Shaft Diameter: Φ4mm
- Shaft Length: 10mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 110g
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.1 |
| Holding Torque(oz.in) | 14.2 |
| Rated Current(A) | 1.0 |
| Phase Resistance(ohm) | 3.2 |
| Phase Inductance(mH) | 2.7 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | Φ46 |
| Body Length(mm) | 15.4 |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 10 |
| No. of Leads | 4 |
| Lead Length(mm) | 300 |
| Weight(KG) | 0.11 |
