This is round NEMA 14 stepper motor with step angle 0.9deg and size Φ36.5x20mm. It has 4 wires, each phase draws 0.65A with holding torque 0.08Nm/11.36oz.in.
Electrical Specification
- Part Number: 36HR20-0654S
- Step Angle: 0.9deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.08Nm/11.36oz.in
- Rated Current/phase: 0.65A
- Phase Resistance: 7.0hms
- Inductance: 6.0mH
- Driving Voltage: 12-24V

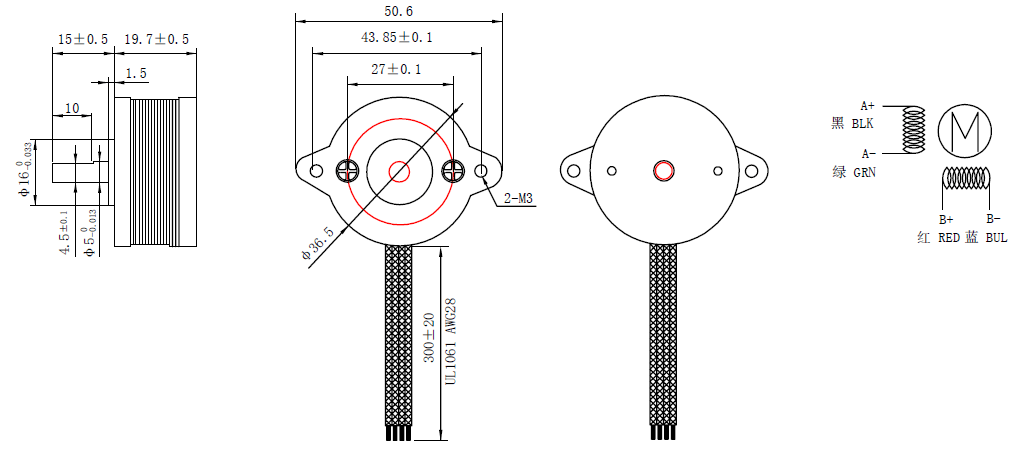

Physical Specification
- Frame Size: Φ36mm
- Body Length: 19.7mm
- Shaft Diameter: Φ5mm
- Shaft Length: 15mm
- D-cut Length: 10mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 130g
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 0.9 |
| Holding Torque(Nm) | 0.08 |
| Holding Torque(oz.in) | 11.36 |
| Rated Current(A) | 0.65 |
| Phase Resistance(ohm) | 7.0 |
| Phase Inductance(mH) | 6.0 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | Φ36.5 |
| Body Length(mm) | 19.7 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 15 |
| No. of Leads | 4 |
| Lead Length(mm) | 300 |
| Weight(KG) | 0.13 |
