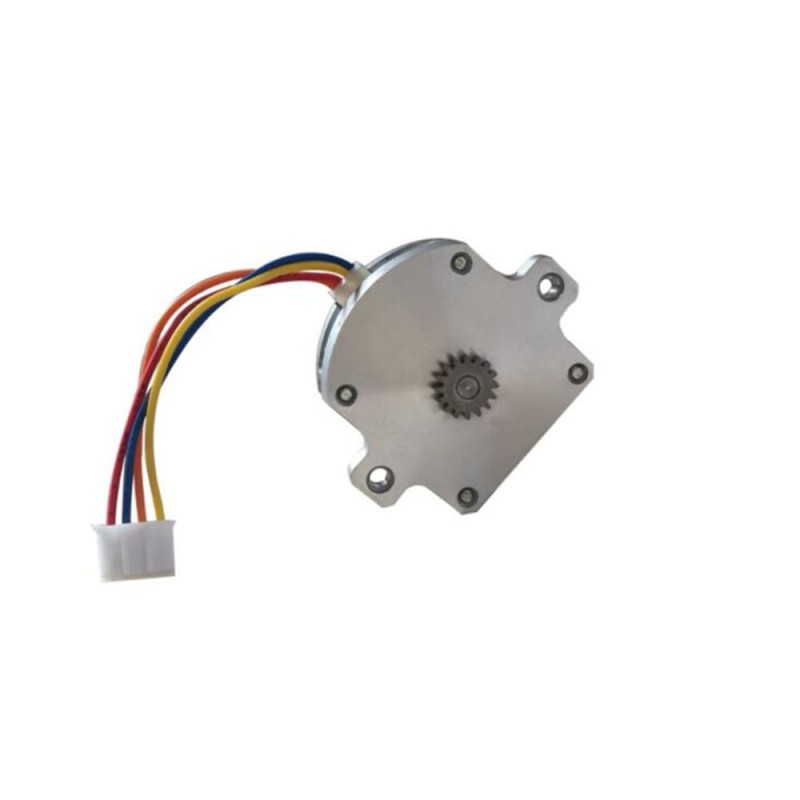

This NEMA 11 pancake stepper motors has one ultra thin body 9.5mm and 4 wires, each phase drawing 0.5A current with holding torque 0.016Nm/2.27oz.in. A 0.5 module 16 teeth gear is fixed into the output shaft.
Electrical Specification
- Part Number: 28HR09-0504B
- Step Angle: 1.8deg
- Bi/UnIpolar: Bipolar
- Holding Torque: 0.016Nm(2.27oz.in)
- Rated Current/phase: 0.5A
- Phase Resistance: 3.5ohms
- Inductance: 0.9mH
- Driving Voltage: 12-24V

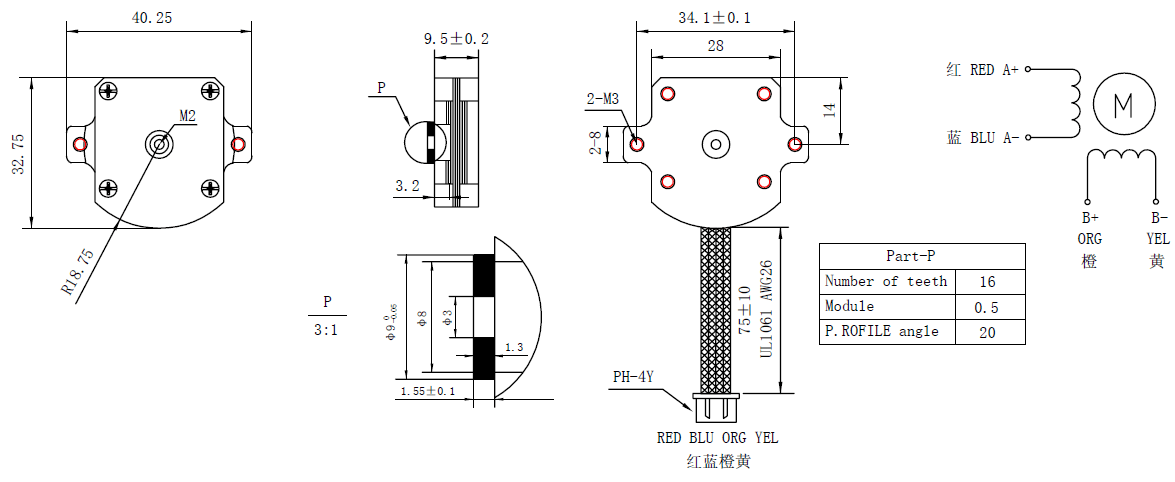

Physical Specification
- Frame Size: Φ28mm
- Body Length: 9.5mm
- Shaft Diameter: Φ3mm
- Shaft Length: 1.55mm
- Gear Module: 0.5
- Gear Teeth: 16 Teeth
- Presssure Angle: 20°
- Number of Leads: 4
- Lead Length: 75mm
- Weight: 30g
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.016 |
| Holding Torque(oz.in) | 2.27 |
| Rated Current(A) | 0.5 |
| Phase Resistance(ohm) | 0.9 |
| Phase Inductance(mH) | 3.8 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | Φ28 |
| Body Length(mm) | 9.5 |
| Shaft Diameter(mm) | 3 |
| Shaft Length(mm) | 1.55 |
| No. of Leads | 4 |
| Lead Length(mm) | 75 |
| Weight(KG) | 0.03 |
