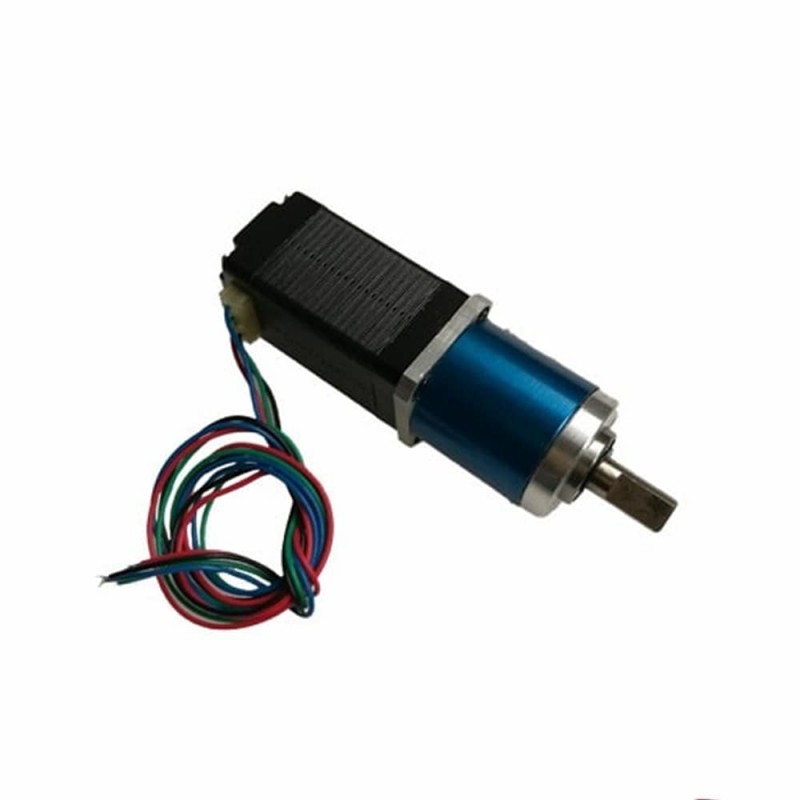

NEMA 8 Stepper Motor Bipolar L=38mm w/ Gear Ratio 5:1 Planetary Gearbox 8HS15-0604S-PG5
- Part Number: 8HS15-0604S-PG5
- Lead Time: In Stock
- Unit Price: $30.00
- Sales: 5
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This geared NEMA 8 stepper motor has 38mm body and 0.6A rated current, integrated with one planetary gearbox of 4.75:1 gear ratio. It's an ideal solution to the applications that require limited space but low speed and high torque.
Motor Specification
- Part Number: 8HS15-0604S-PG5
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.04Nm/5.68oz.in
- Rated Current/phase: 0.6A
- Driving Voltage: 12-24V
- Frame Size: 20x20mm
- Motor Length: 38mm
- Number of Leads: 4
- Lead Length: 280mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 4.75:1
- Efficiency: 90%
- Backlash at No-load: <=1.0deg
- Rated Torque: 0.5Nm
- Maximun Torque: 1.0Nm
- Gearbox Length: 21.2mm
- Shaft Diameter: Φ6mm
- Shaft Length: 15mm
- D-cut Length: 9mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.04 |
| Holding Torque(oz.in) | 5.68 |
| Rated Current(A) | 0.6 |
| Frame Size(mm) | 20x20 |
| Body Length(mm) | 38 |
| Driving Voltage(VDC) | 12-24 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 5:1 |
| Efficiency | 90% |
| Backlash at No-load | 1.0deg |
| Gearbox Length(mm) | 21.2 |
| Shaft Diameter(mm) | 6 |
| Shaft Length(mm) | 15 |
L=21.2mm
