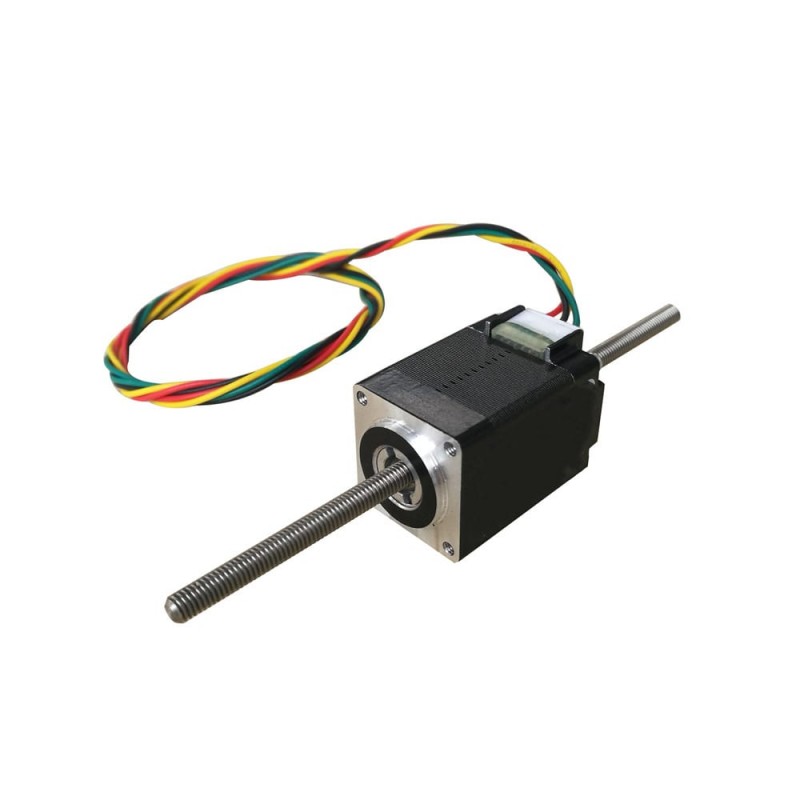

NEMA 8 Non-captive Linear Actuator Stepper Motor L=30mm Lead 4mm Length 100mm
- Part Number: 20LS30-0604N-100L4
- Lead Time: Two Weeks
- Unit Price: $50.00
- Sales: 2
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This small electric linear motion motor is a size 20 Non-captive linear actuator with body part 30mm NEMA 8 stepper motor, 1.8 degree step angle and 0.6A rated current, a Φ3.5mm diameter, 100mm lead screw length and the linear travel is 4mm per revolution/0.02mm per step. The lead screw can be customzied to meet your special demand.
Electrical Specification
- Part Number: 20LS30-0604N-100L4
- Motor Type: Non-captive
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.02Nm/2.84oz.in
- Rated Current/phase: 0.6A
- Phase Resistance: 6.5ohms
- Inductance: 2.0mH
- Driving Voltage: 12-24V

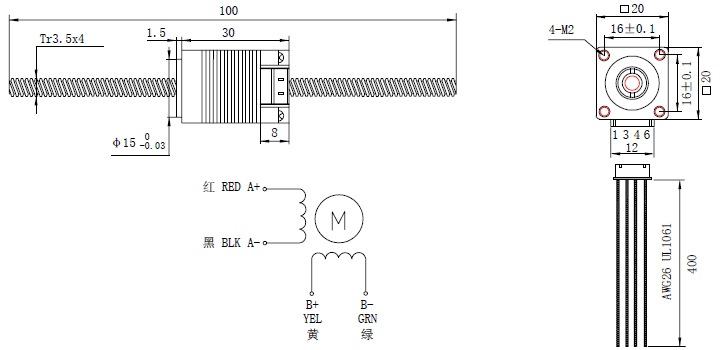

Physical Specification
- Frame Size: 20x20mm
- Body Length: 30mm
- Lead Screw Length: 100mm
- Lead Screw Diameter: Φ3.5mm
- Lead Travel/Step: 0.02mm
- Lead Travel/Revolution: 4.0mm
- Number of Leads: 4
- Lead Length: 400mm
- Weight: 0.06kg
Contact Us
| Motor Specification | |
| Motor Type | Non-captive |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.02 |
| Holding Torque(oz.in) | 2.84 |
| Rated Current(A) | 0.6 |
| Frame Size(mm) | 20x20 |
| Stack Length(mm) | 30 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 100 |
| Lead Screw Diameter(mm) | 3.5 |
| Lead Travel/Revolution(mm) | 4 |
| Lead Travel/Step(mm) | 0.02 |
