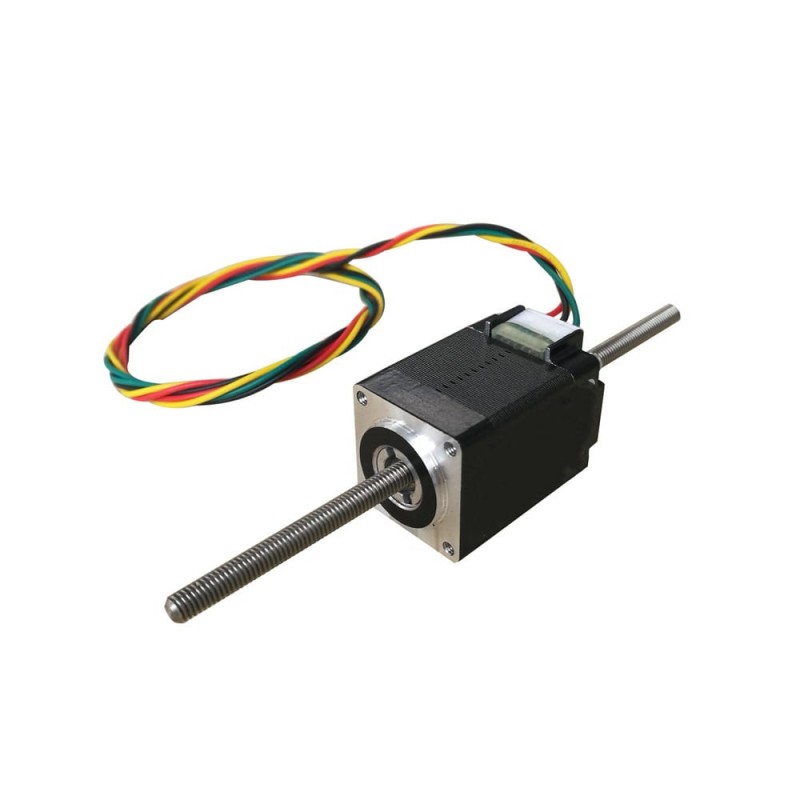

This Non-captive linear actuator electric motor is one size 20mm NEMA 8 linear motion stepper motor with a 30mm body length, 1.8 degree step angle, and 0.6A rated current. It is integrated with a 3.5mm diameter lead screw & lead travel 0.61mm per revolution/0.00305mm per step, and the lead screw length is 100mm.
Electrical Specification

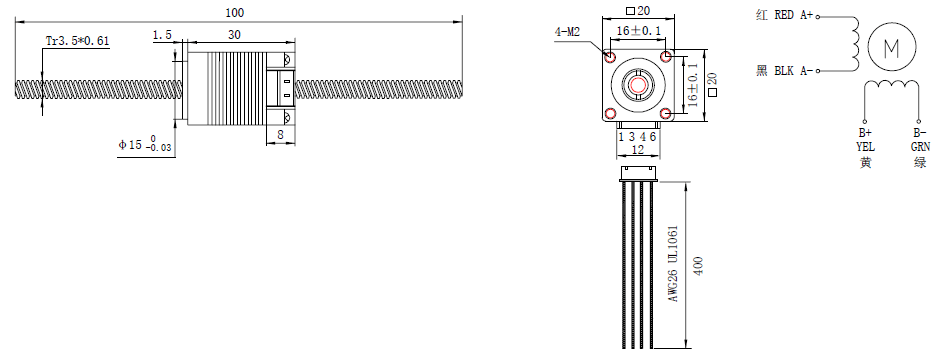

- Part Number: 20HS30-0604N-100N0.61
- Motor Type: Non-captive Linear Stepper
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.02Nm(2.84oz.in)
- Rated Current/phase: 0.6A
- Driving Voltage: 12-24V
Physical Specification
- Frame Size: 20x20mm
- Motor Length: 30mm
- Lead Length: 100mm
- Lead Screw Diameter: Φ3.5mm
- Lead Screw/Step: 0.00305mm
- Lead Screw/Revolution: 0.61mm
- Number of Leads: 4
- Lead Length: 400mm
- Weight: 0.1KG
Contact Us
| Motor Specification | |
| Motor Type | Non-captive Linear Stepper |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.02 |
| Holding Torque(oz.in) | 2.84 |
| Rated Current(A) | 0.6 |
| Frame Size(mm) | 20x20 |
| Stack Length(mm) | 30 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 100 |
| Lead Screw Diameter(mm) | 6 |
| Lead Travel/Revolution(mm) | 0.61 |
| Lead Travel/Step(mm) | 0.00305 |
