NEMA 8 Linear Actuator Captive Stepper Motor 28mm Stack 0.5A Lead 1mm Travel 19.05
- Part Number: 20HS28-0504C-1905
- Lead Time: In Stock
- Unit Price: $125.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

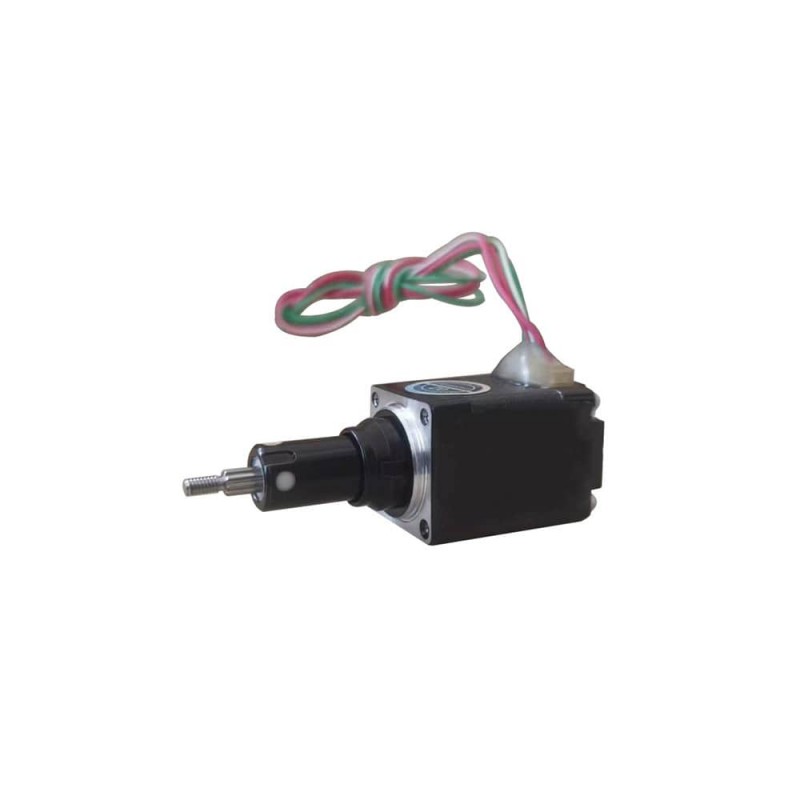

This captive linear actuator electric motor is a size 20mm NEMA 8 linear motion stepper motor with a 28.35mm body length, 1.8 degree step angle, and 0.5A rated current. It is integrated with a 3.5mm diameter lead screw & lead travel 1mm per revolution/0.005mm per step, and the travel distance is 19.05mm.
Electrical Specification
- Part Number: 20HS28-0504C-1905
- Motor Type: Captive Linear Stepper
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.02Nm/2.84oz.in
- Rated Current/phase: 0.5A
- Driving Voltage: 12-24V

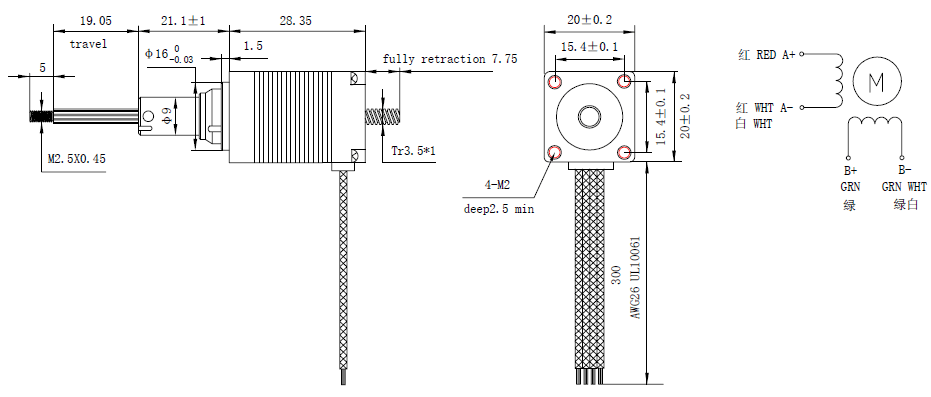

Physical Specification
- Frame Size: 20x20mm
- Motor Length: 28.35mm
- Travel Distance: 19.05mm
- Lead Screw Diameter: Φ3.5mm
- Lead Screw/Step: 0.005mm
- Lead Screw/Revolution: 1mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.1KG
Contact Us
| Motor Specification | |
| Motor Type | Captive Linear Stepper |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.02 |
| Holding Torque(oz.in) | 2.84 |
| Rated Current(A) | 0.5 |
| Frame Size(mm) | 20x20 |
| Stack Length(mm) | 28 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Travel Distance(mm) | 19.05 |
| Lead Screw Diameter(mm) | 3.5 |
| Lead Travel/Revolution(mm) | 1 |
| Lead Travel/Step(mm) | 0.005 |
