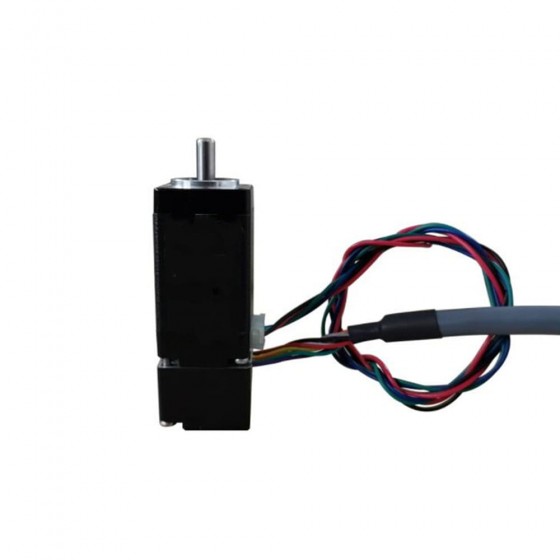

NEMA 8 Closed-loop Stepper Motor 0.6A 0.04Nm/5.68oz.in
- Part Number: 20HS38-0604E1K
- Lead Time: In Stock
- Unit Price: $50.00
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This small closed-loop NEMA 8 stepper motor, which is integrated with a 1000cpr optical incremental encoder, has a rated current of 0.6A and generates a good holding 0.04Nm/5.68oz.in. It performs more accuracy, higher torque, less motor heating, lower power consumption, and better response to external factors, compared to the open loop stepper motors.
Motor Specification
- Part Number: 20HS38-0604E1K
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.04Nm/1568oz.in
- Rated Current/phase: 0.6A
- Driving Voltage: 12-24V
- Frame Size: 20x20mm
- Body Length: 38mm
- Shaft Diameter: Φ4mm
- Shaft Length: 10mm
- Number of Leads: 4
- Lead Length: 300mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000CPR
- Encoder Signal Channels: 3
- No. of Leads: 8
- Lead Length: 300mm
- Supply Voltage: 5.0V
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.04 |
| Holding Torque(oz.in) | 5.68 |
| Rated Current(A) | 0.6 |
| Frame Size(mm) | 20x20 |
| Body Length(mm) | 38 |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 10 |
| Driving Voltage(VDC) | 12-24 |
| Encoder Specification | |
| Encoder Resolution(CPR) | 1000 |
| Encoder Type | Incremental |
| Supply Voltage(VDC) | 5.0 |
