NEMA 6 Bipolar 1.8deg 0.58Ncm(0.82oz.in) 0.3A 14x14x30mm 6HS12-0304S
- Part Number: 6HS12-0304S
- Lead Time: In Stock
- Unit Price: $45.00
- Sales: 125
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

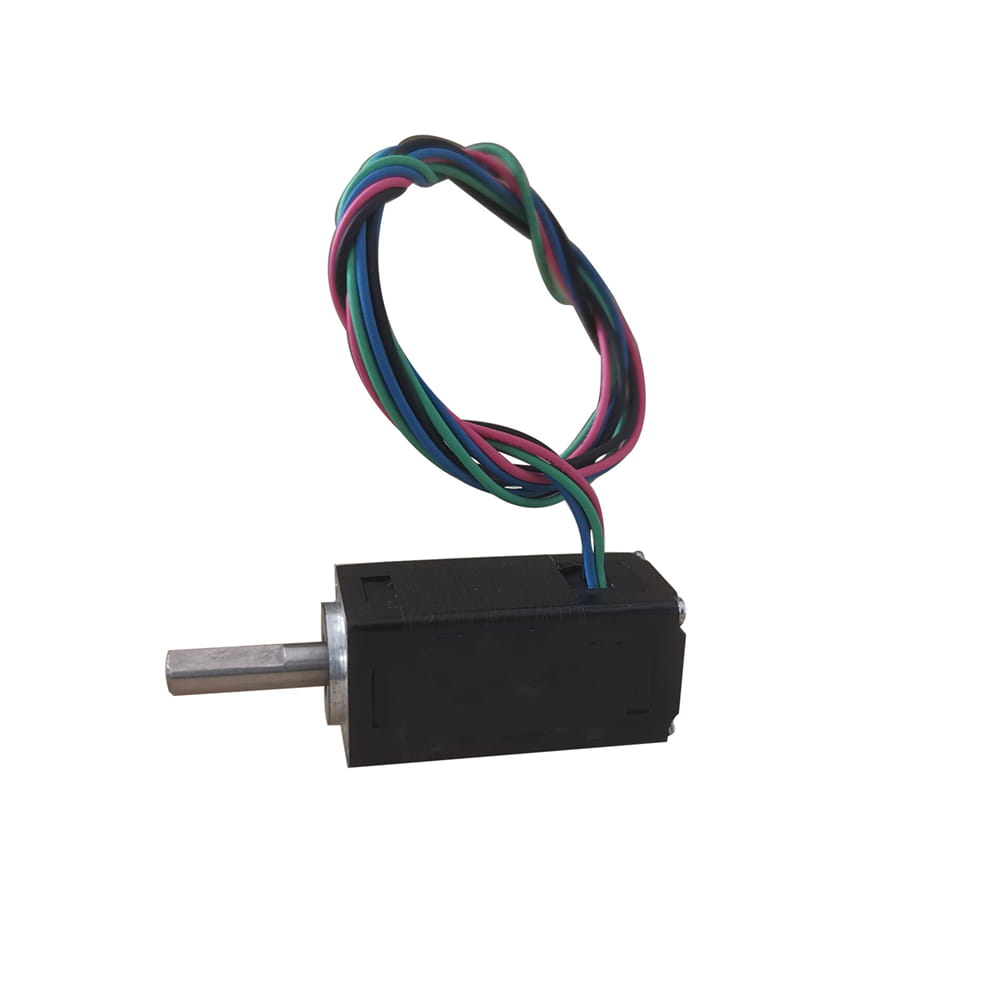

This micro engine is a bipolar NEMA 6 stepper motor with step angle 1.8deg and size 14x14x30mm. It has 4 wires, each phase draws 0.3A with holding torque 0.58Ncm(0.82oz.in).
Electrical Specification
- Part Number: 6HS12-0304S
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.58Ncm(0.82oz.in)
- Rated Current/phase: 0.3A
- Phase Resistance: 22ohms
- Inductance: 4.4mH
- Driving Voltage: 12-24V

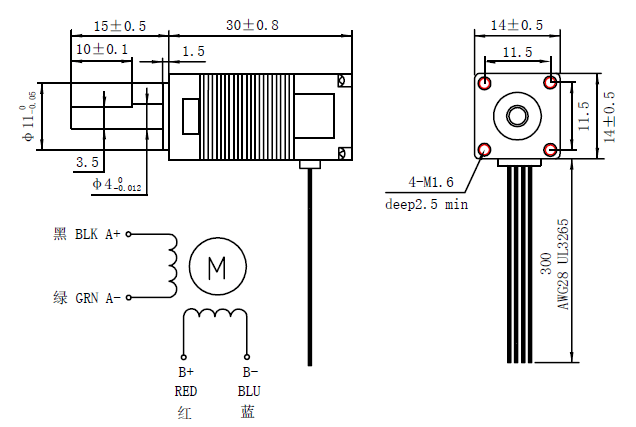

Physical Specification
- Frame Size: 14x14mm
- Body Length: 30mm
- Shaft Diameter: Φ4mm
- Shaft Length: 15mm
- D-cut Length: 10mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.03kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.0058 |
| Holding Torque(oz.in) | 0.85 |
| Rated Current(A) | 0.3 |
| Phase Resistance(ohm) | 22 |
| Phase Inductance(mH) | .2 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | 14x14 |
| Body Length(mm) | 30 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 15 |
| No. of Leads | 4 |
| Lead Length(mm) | 300 |
| Weight(KG) | 0.03 |
