NEMA 6 Ball Screw Linear Actuator Stepper Motor 30mm Stack 0.3A Lead 1mm Length 150mm
- Part Number: 14HS30-0304G-150L41
- Lead Time: Four Weeks
- Unit Price: $320.00
- Sales: 3
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

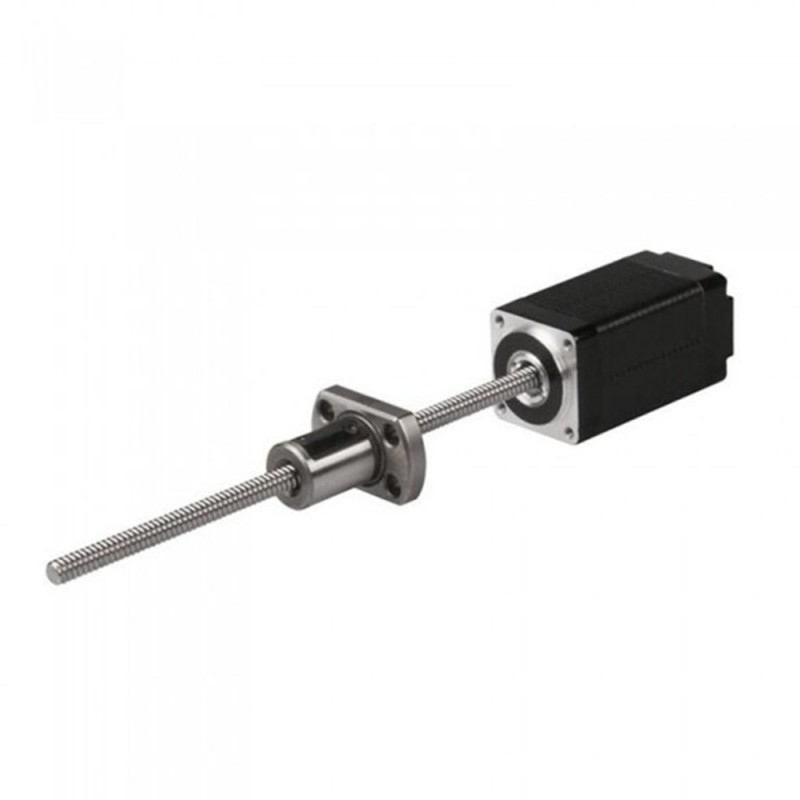

This micro ball screw stepper motor is a NEMA 6 external linear actuator with body part 30mm NEMA 6 stepper motor. It is integrated with a ball screw diameter 4mm, lead travel 1mm per revolution 1mm or lead travel 0.005mm per step and a screw nut moving along the threaded rod.
Electrical Specification
- Part Number: 14HS30-0304G-150L41
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipoalr: Bipolar
- Rated Current/phase: 0.3A
- Phase Resistance: 22ohms
- Inductance: 3.6mH
- Driving Voltage: 12-24V

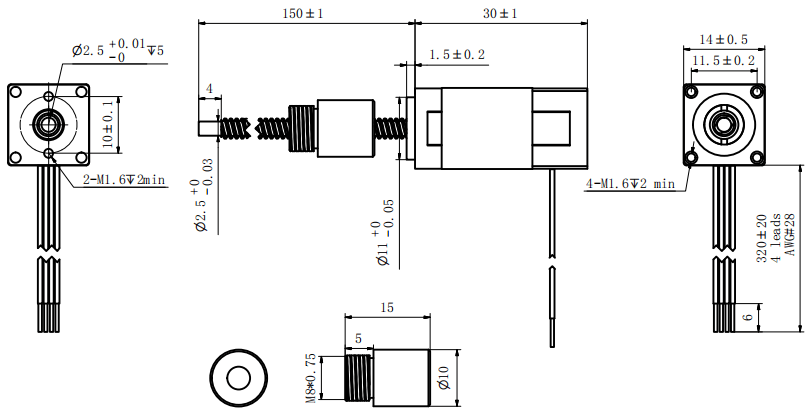

Physical Specification
- Frame Size: 14x14mm
- Body Length: 30mm
- Ball Screw Length: 150mm
- Ball Screw Diameter: Φ4mm
- Lead/Step: 0.005mm
- Lead/Revolution: 1mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.1kg
Contact Us
| Electrical Specification | |
| Driving Voltage(VDC) | 12-24 |
| Motor Specification | |
| Motor Type | External |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Rated Current(A) | 0.5 |
| Frame Size(mm) | 14x14 |
| Stack Length(mm) | 30 |
| Ball Screw Specification | |
| Ball Screw Size | 0401 |
| Ball Screw Length(mm) | 150 |
| Ball Screw Diameter(mm) | 4 |
| Ball Screw Travel/Revolution(mm) | 1 |
| Ball Screw Travel/Step(mm) | 0.005 |
