NEMA 42 CNC Stepper Motor Bipolar 1.8deg 8.0A 30Nm/4260oz.in 110x201mm 4 Wires
- Part Number: 110HS201-8004S
- Lead Time: One Week
- Unit Price: $200.00
- Sales: 10
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

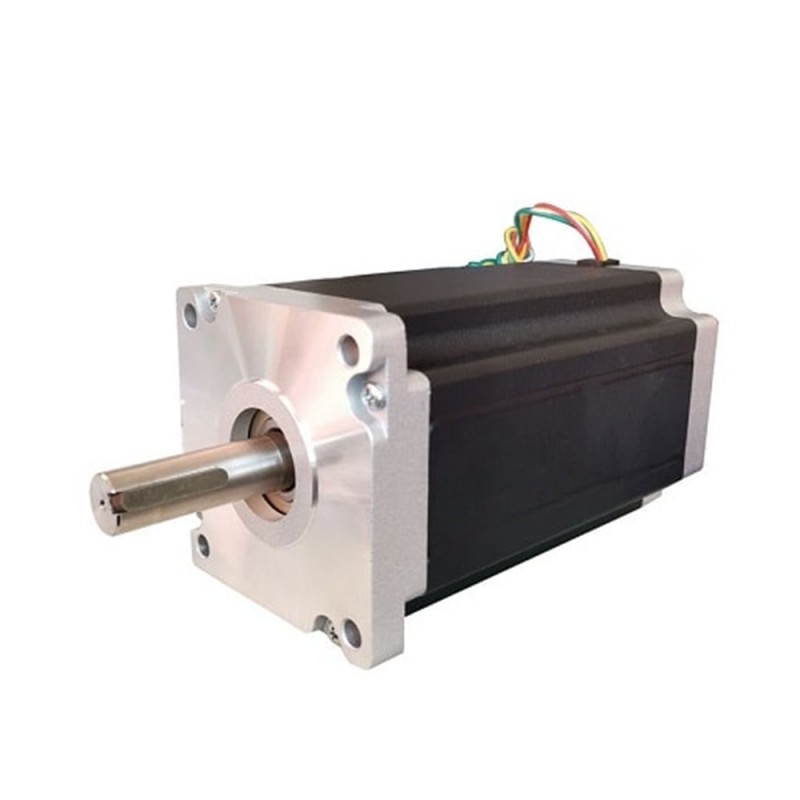

This is NEMA 42 CNC stepper motor with size 110x110x201mm. It has 4 wires, each phase draws 8.0A with holding torque 30Nm/4260oz.in.
Electrical Specification
- Part Number: 110HS201-8004S
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 30Nm/4260oz.in
- Rated Current/phase: 8.0A
- Phase Resistance: 0.7ohms
- Inductance: 13.5mH
- Driving Voltage: 110-220VAC

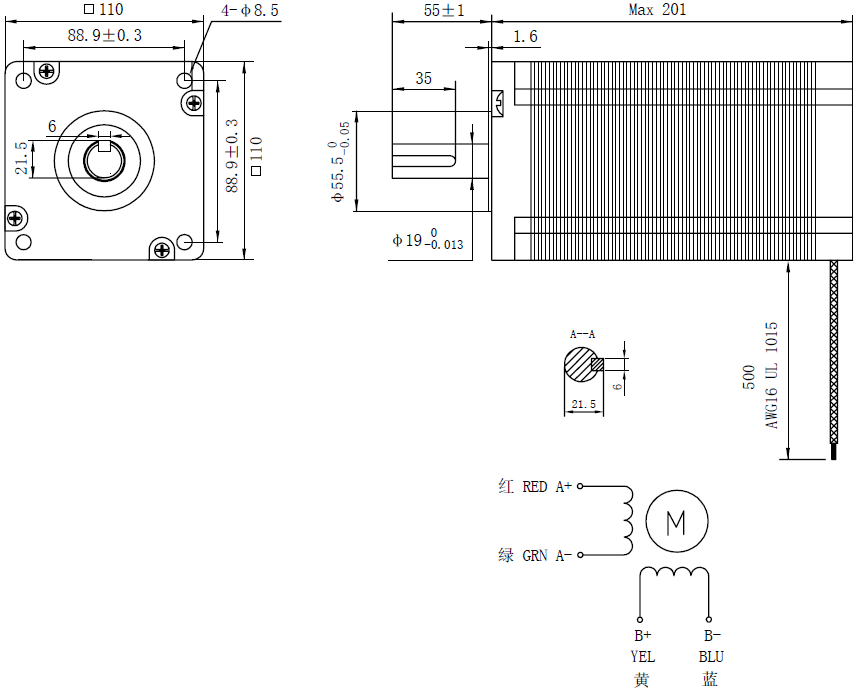

Physical Specification
- Frame Size: 110x110mm
- Body Length: 201mm
- Shaft Diameter: Φ19mm
- Shaft Length: 55mm
- keyway Shaft Length: 35mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 12.5kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 30 |
| Holding Torque(oz.in) | 4260 |
| Rated Current(A) | 8.0 |
| Phase Resistance(ohm) | 0.7 |
| Phase Inductance(mH) | 13.5 |
| Driving Voltage(VAC) | 110-220 |
| Physical Specification | |
| Frame Size(mm) | 110x110 |
| Body Length(mm) | 201 |
| Shaft Type | keyway |
| Shaft Diameter(mm) | 19 |
| Shaft Length(mm) | 55 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 12.5 |
