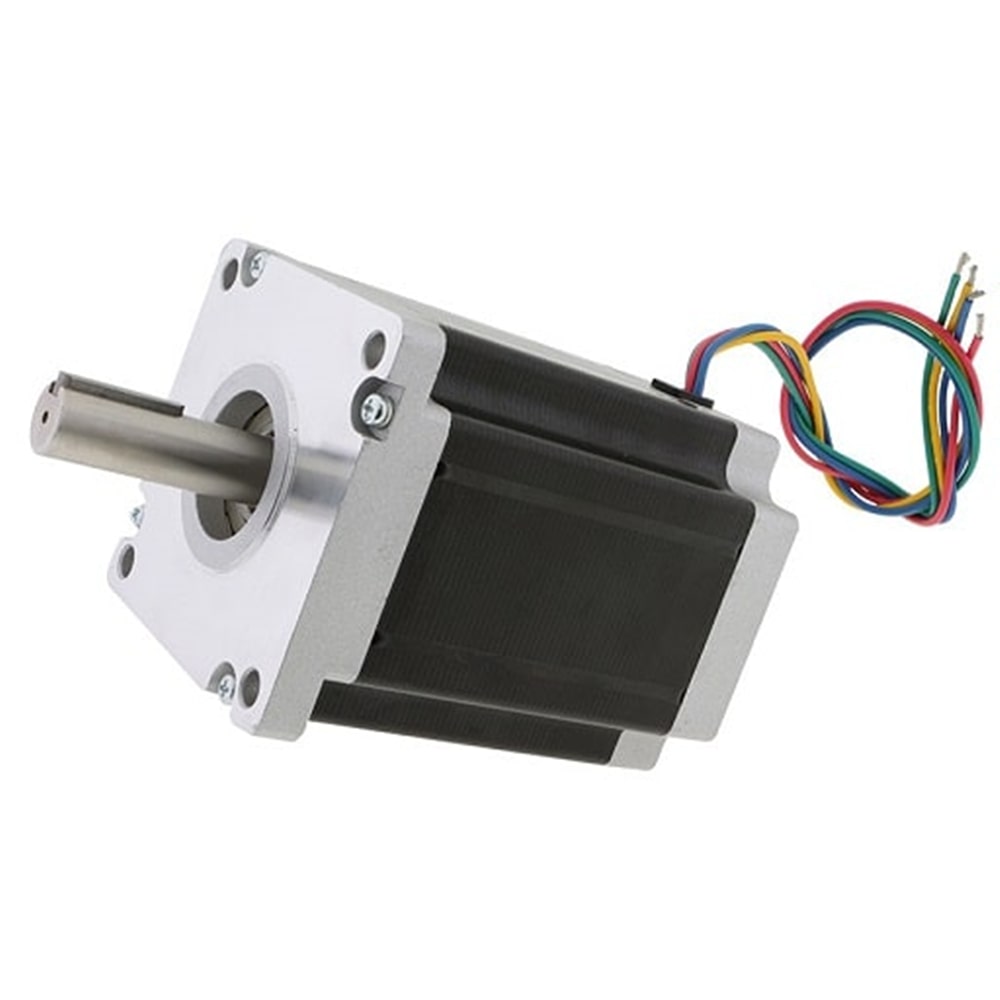

This is bipolar NEMA 42 CNC stepper motor with size 110x110x150mm. It has 4 wires, each phase draws 6.0A with holding torque 22Nm/3124oz.in.
Electrical Specification
- Part Number: 110HS150-6004S
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 22Nm/3124oz.in
- Rated Current/phase: 6.0A
- Phase Resistance: 0.8ohms
- Inductance: 14.0mH
- Driving Voltage: 110-220VAC

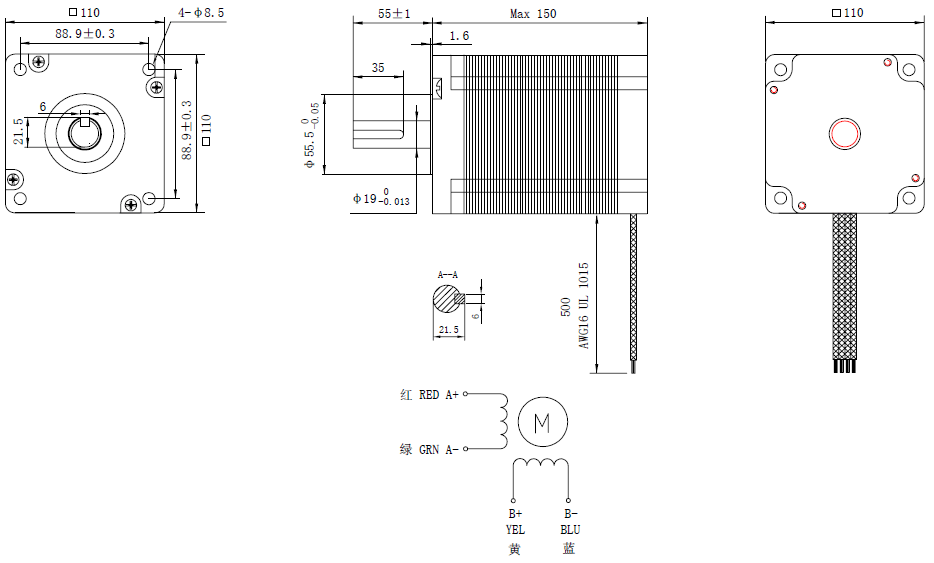

Physical Specification
- Frame Size: 110x110mm
- Body Length: 150mm
- Shaft Diameter: Φ19mm
- Shaft Length: 55mm
- keyway Length: 35mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 8.5kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 22 |
| Holding Torque(oz.in) | 3124 |
| Rated Current(A) | 6.0 |
| Phase Resistance(ohm) | 0.8 |
| Phase Inductance(mH) | 14.0 |
| Driving Voltage(VAC) | 110-220 |
| Physical Specification | |
| Frame Size(mm) | 110x110 |
| Body Length(mm) | 150 |
| Shaft Type | keyway |
| Shaft Diameter(mm) | 19 |
| Shaft Length(mm) | 55 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 8.5 |
