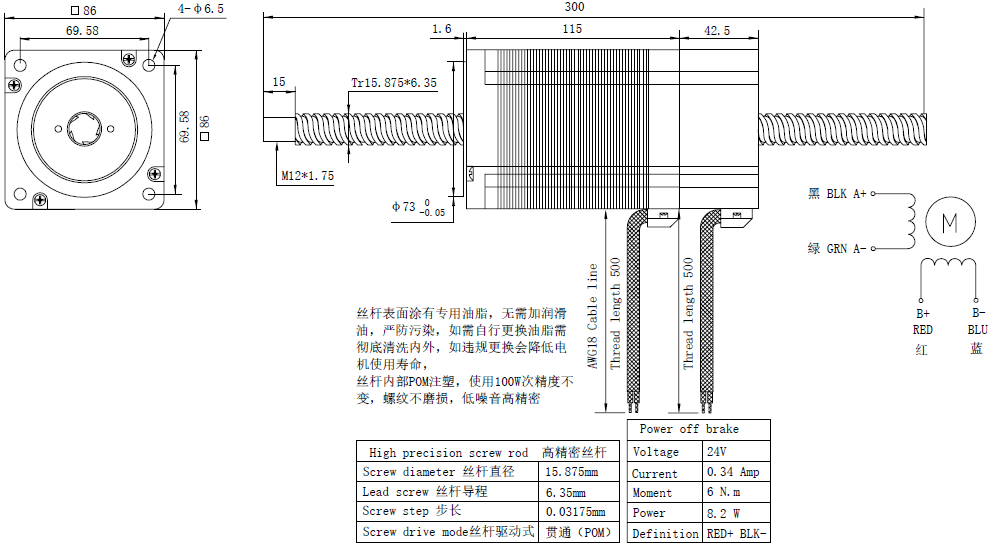

This noncaptive linear actuator electric motor is one size 86mm NEMA 34 linear motion stepper motor with a 115mm body length, 1.8 degree step angle and 6.0A rated current. It is integrated with a 15.875mm diameter, 300mm length lead screw, and the linear travel is 6.35mm per revolution/0.03175mm per step. A 24V electromagnetic brake is assembled for vertical working situation or repetitive tasks.
Electrical Specification
- Part Number: 86HS115YS-6004N-300G3
- Motor Type: Noncaptive Linear Stepper
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 8.5Nm(1207oz.in)
- Rated Current/phase: 6.0A
- Phase Resistance: 0.5ohms
- Inductance: 7.0mH
- Driving Voltage: 24-72V
Physical Specification
- Frame Size: 86x86mm
- Motor Length: 115mm
- Lead Screw Length: 300mm
- Lead Screw Diameter: Φ15.875mm
- Lead Screw/Step: 0.03175mm
- Lead Screw/Revolution: 6.35mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 3.8KG
Brake Specification
- Brake Type: Electromagnetic
- Brake Length: 42.5mm
- Brakge Voltage: 24V
Contact Us
| Motor Specification | |
| Motor Type | Non-captive Linear Stepper |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 8.5 |
| Holding Torque(oz.in) | 1207 |
| Rated Current(A) | 6.0 |
| Frame Size(mm) | 86x86 |
| Stack Length(mm) | 115 |
| Driving Voltage(VDC) | 24-72 |
| Brake Specification | |
| Brake Type | Electromagnetic |
| Brake Voltage(VDC) | 24 |
| Brake Length(mm) | 42.5 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 300 |
| Lead Screw Diameter(mm) | 15.875 |
| Lead Travel/Revolution(mm) | 6.35 |
| Lead Travel/Step(mm) | 0.03175 |
