NEMA 34 External Linear Actuator Stepper Motor 76mm Stack 5.0A Lead 5.08mm Length 235mm
- Part Number: 86LS76-5004E-235L508
- Lead Time: In Stock
- Unit Price: $150.00
- Sales: 2
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

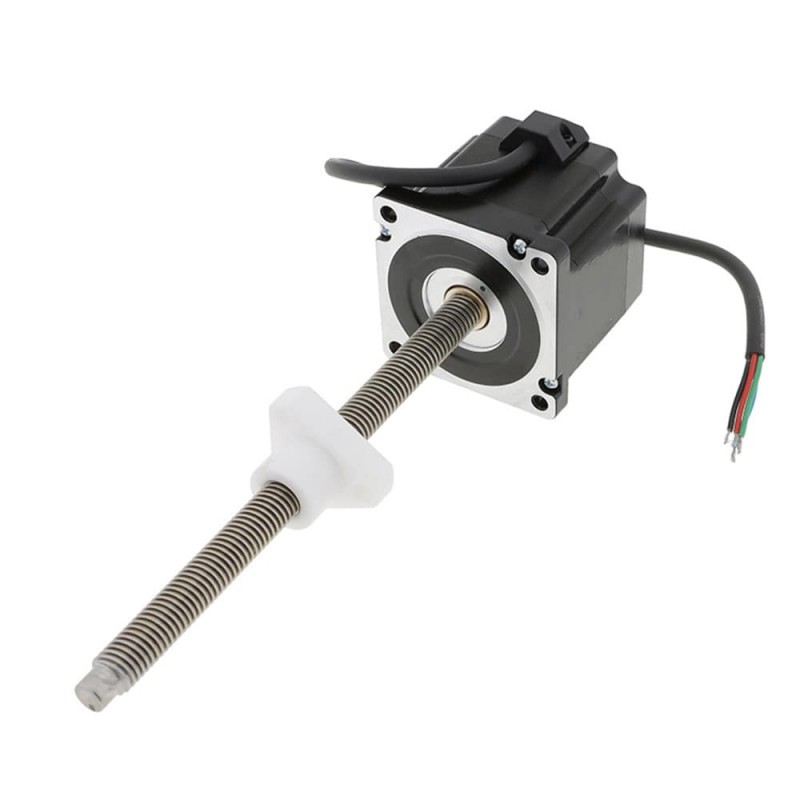

This is NEMA 34 External linear actuator with body part 76mm size 86 stepper motor. It is integrated with with a 15.875mm diameter 235mm length lead screw and a POM screw nut and the linear travel is 5.08mm per revolution & 0.0254mm per step.
Electrical Specification
- Part Number: 86LS76-5004E-235L508
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 4.5Nm/639oz.in
- Rated Current/phase: 5.0A
- Driving Voltage: 24-110V

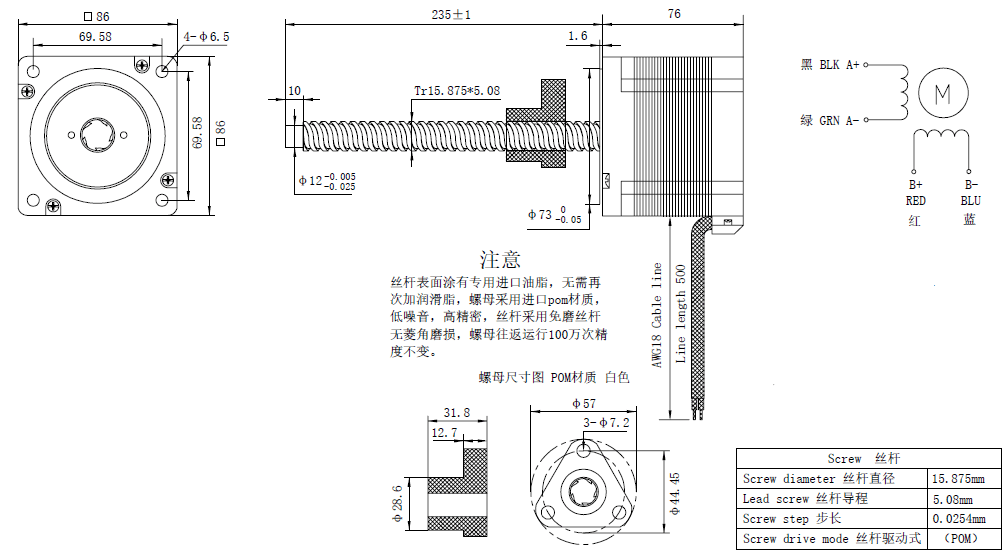

Physical Specification
- Frame Size: 86x86mm
- Body Length: 76mm
- Lead Screw Length: 235mm
- Lead Screw Diameter: Φ15.875mm
- Lead /Step: 0.0254mm
- Lead/Revolution: 5.08mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 2.5kg
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 4.5 |
| Holding Torque(oz.in) | 639 |
| Rated Current(A) | 5.0 |
| Frame Size(mm) | 86x86 |
| Stack Length(mm) | 76 |
| Driving Voltage(VDC) | 24-110 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 235 |
| Lead Screw Diameter(mm) | 15.875 |
| Lead Travel/Revolution(mm) | 5.08 |
| Lead Travel/Step(mm) | 0.0254 |
