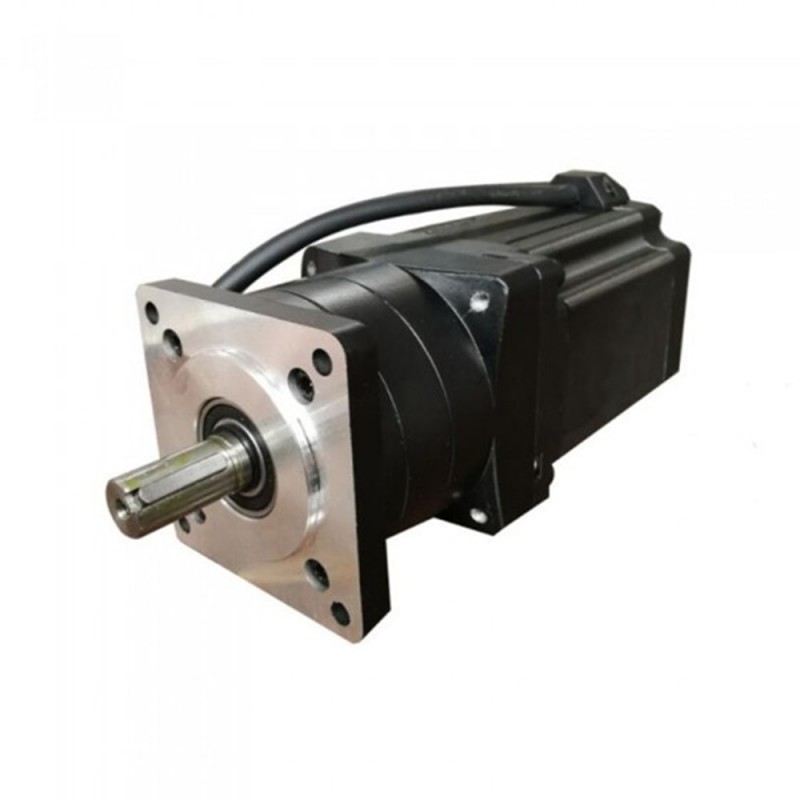

NEMA 34 CNC Stepper Motor L=118mm 6.0A with Gear Ratio 20:1 Planetary Gearbox
- Part Number: 86HS118-6004S-PG20
- Lead Time: One Week
- Unit Price: $150.00
- Sales: 9
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 34 geared reduction CNC stepper motor has a body length 118mm and 6.0A rated current and is integrated with a planetary gearbox of 20:1 gear ratio, which generates a strong holding torque otuput upto 50Nm/7100oz.in & a very low speed 0-50rpm. It's an ideal solution to the applications that require limited space but low speed and high torque.
Motor Specification
- Part Number: 86HS118-6004S-PG20
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 8.5Nm/1207oz.in
- Rated Current/phase: 6.0A
- Driving Voltage: 24-110V
- Motor Length: 118mm
- Number of Leads: 4
- Lead Length: 500mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 20:1
- Efficiency: 90%
- Backlash at No-load: ≤25arcmin
- Gearbox Length: 95mm
- Shaft Diameter: Φ16mm
- Shaft Length: 35mm
- Keyway Length: 25mmm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 8.5 |
| Holding Torque(oz.in) | 1207 |
| Rated Current(A) | 6.0 |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 118 |
| Driving Voltage(VDC) | 24-110 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 20:1 |
| Efficiency | 90% |
| Backlash at No-load | 25arcmin |
| Gearbox Length(mm) | 95 |
| Shaft Diameter(mm) | 16 |
| Shaft Length(mm) | 35 |
