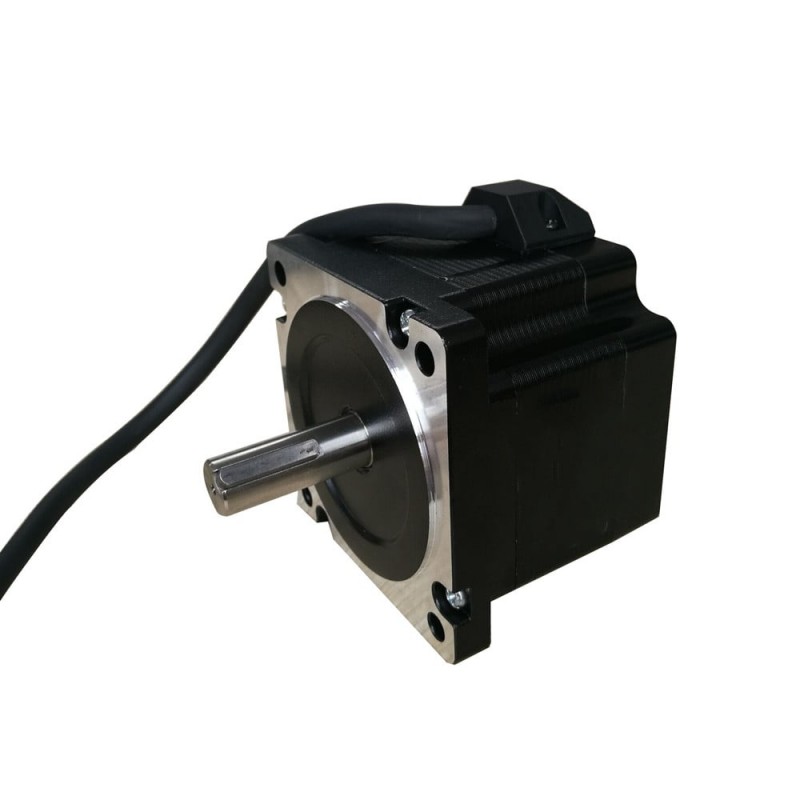

This powerful electric motor is a bipolar NEMA 34 CNC stepper motor has holding torque 3.5Nm/497oz.in with keyway shaft dimeter Φ12.7mm.
Electrical Specification
- Part Number: 86HS65-4004S
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 3.5Nm/497oz.in
- Rated Current: 4.0A
- Phase Resistance: 0.6ohms
- Inductance: 1.6mH
- Driving Voltage: 24-110V

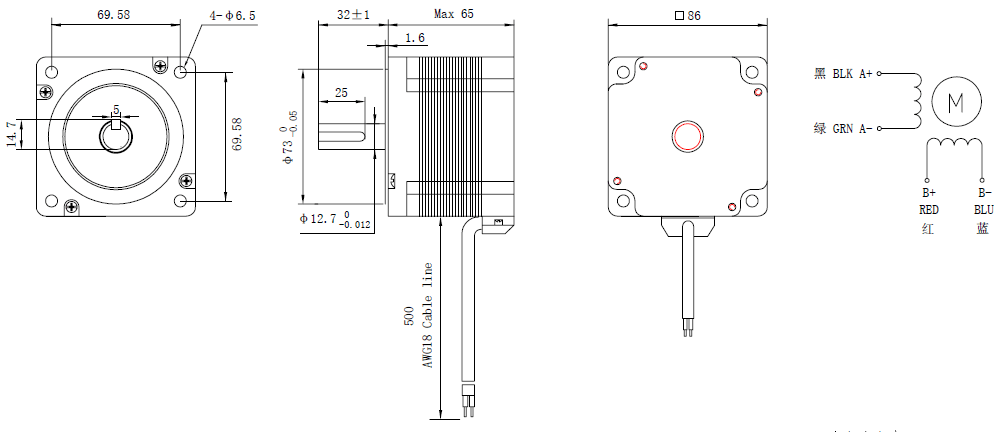

Physical Specification
- Frame Size: 86x86mm
- Body Length: 67mm
- Shaft Diameter: Φ12.7mm
- Shaft Length: 32mm
- Keyway Length: 25mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 1.8kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 3.5 |
| Holding Torque(oz.in) | 497 |
| Rated Current(A) | 4.0 |
| Phase Resistance(ohm) | 0.6 |
| Phase Inductance(mH) | 1.6 |
| Driving Voltage(VDC) | 24-110 |
| Physical Specification | |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 65 |
| Shaft Type | Keyway |
| Shaft Diameter(mm) | 12.7 |
| Shaft Length(mm) | 32 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 1.8 |
