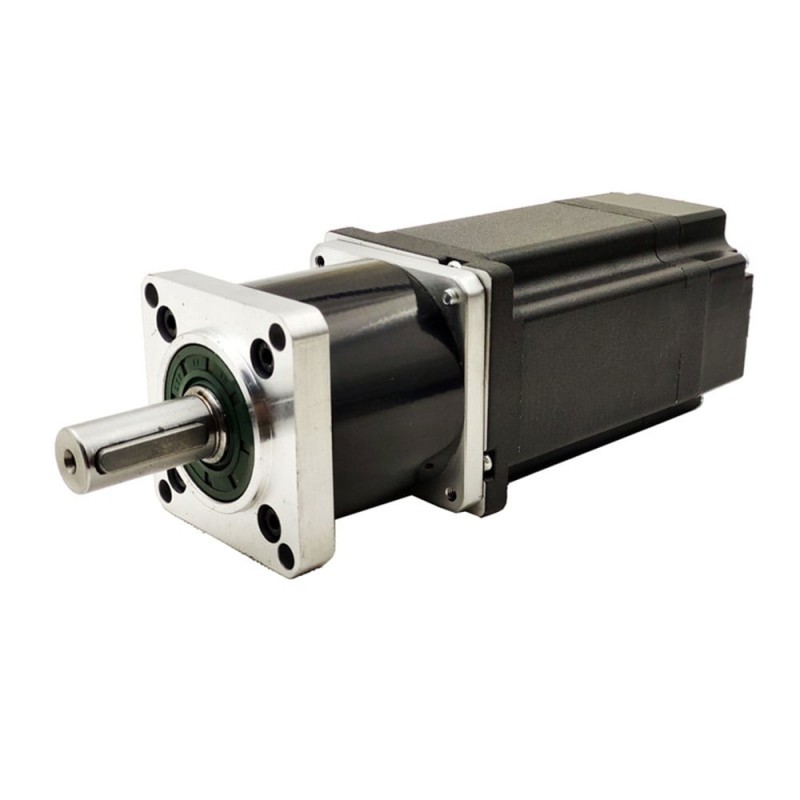

NEMA 34 Closed Loop Stepper Motor L=76mm with 1000CPR Encoder & Gear Ratio 5:1 High Precision Planetary Gearbox
- Part Number: 86HS76-HG5-E1000
- Lead Time: Two Weeks
- Unit Price: $175.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This large size 86mm NEMA 34 stepper motor with 76mm body length has a strong torque output 4.5Nm/639oz.in, which is combined with a 1000CPR incremental optical encocer & a gear ratio of 5:1 high precision planetary gearbox. It is absolutely an ideal solution the applications require closed-loop servo control and low speed/high torque output.
Motor Specification
- Part Number: 86HS76-HG5-E1000
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 4.5Nm(639oz.in)
- Rated Current/phase: 6.0A
- Driving Voltage: 24-110V
- Frame Size: 86x86mm
- Body Length: 76mm
- Number of Leads: 4
- Lead Length: 2000mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 5:1
- Efficiency: 96%
- Backlash at No-load: <=15arcmin
- Gearbox Length: 73mm
- Shaft Diameter: Φ16mm
- Shaft Length: 35mm
- Keyway Length: 25mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000CPR
- Encoder Signal Channels: 2
- No. of Leads: 6
- Lead Length: 270mm
- Supply Voltage: 5.0V
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 4.5 |
| Holding Torque(oz.in) | 639 |
| Rated Current(A) | 6.0 |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 76 |
| Driving Voltage(VDC) | 24-110 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 5:1 |
| Efficiency | 96% |
| Backlash at No-load | 15arcmin |
| Gearbox Length(mm) | 73 |
| Shaft Diameter(mm) | 16 |
| Shaft Length(mm) | 35 |
| Encoder Specification | |
| Encoder Resolution(CPR) | 1000 |
| Encoder Type | Incremental |
| Supply Voltage(VDC) | 5.0 |
