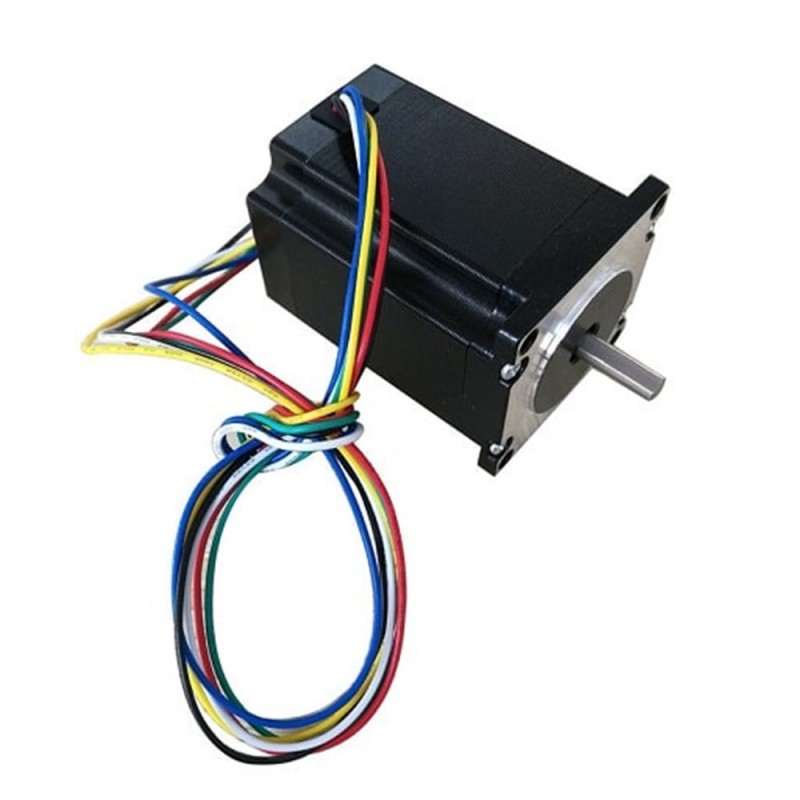

NEMA 23 Stepper Motor Unipolar 1.8deg 1.0A 1.3Nm/184.6oz.in 57x76mm 6 Wires
- Part Number: 57HS76-1006S
- Lead Time: In Stock
- Unit Price: $20.00
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This is unipolar NEMA 23 stepper motor with step angle 1.8deg and size 57x57x76mm. It has 6 wires, each phase draws 1.0A with holding torque 1.3Nm/184.6oz.in.
Electrical Specification
- Part Number: 57HS76-1006S
- Step Angle: 1.8deg
- Bipolar/Unipolar: Unipolar
- Holding Torque: 1.3Nm/184.6oz.in
- Rated Current/phase: 1.0A
- Phase Resistance: 8.6ohms
- Inductance: 18mH
- Driving Voltage: 24-72V

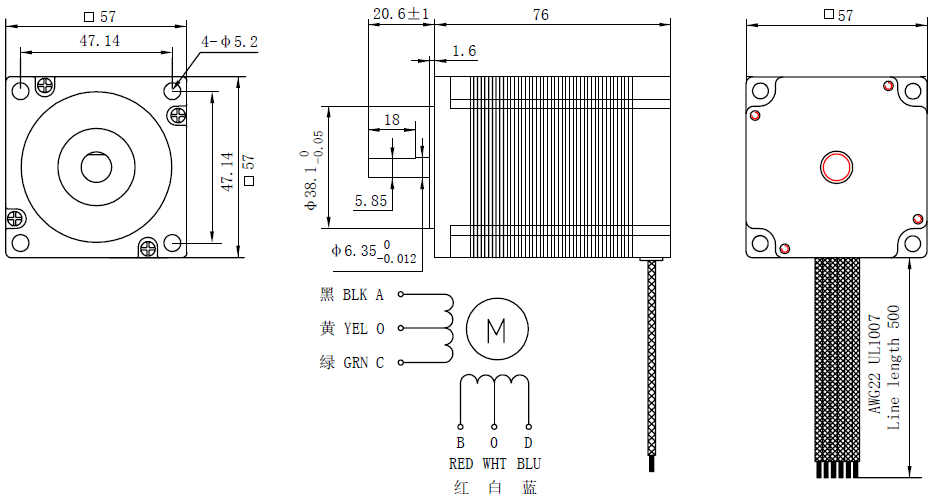

Physical Specification
- Frame Size: 57x57mm
- Body Length: 76mm
- Shaft Diameter: Φ6.35mm
- Shaft Length: 21mm
- D-cut Length: 18mm
- Number of Leads: 6
- Lead Length: 500mm
- Weight: 1.1kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Unipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 1.3 |
| Holding Torque(oz.in) | 184.6 |
| Rated Current(A) | 1.0 |
| Phase Resistance(ohm) | 8.6 |
| Phase Inductance(mH) | 18 |
| Driving Voltage(VDC) | 24-72 |
| Physical Specification | |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 76 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 6.35 |
| Shaft Length(mm) | 21 |
| No. of Leads | 6 |
| Lead Length(mm) | 500 |
| Weight(KG) | 1.1 |
