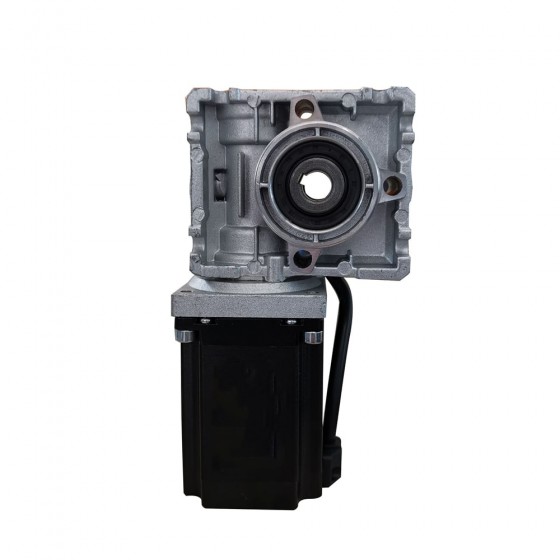

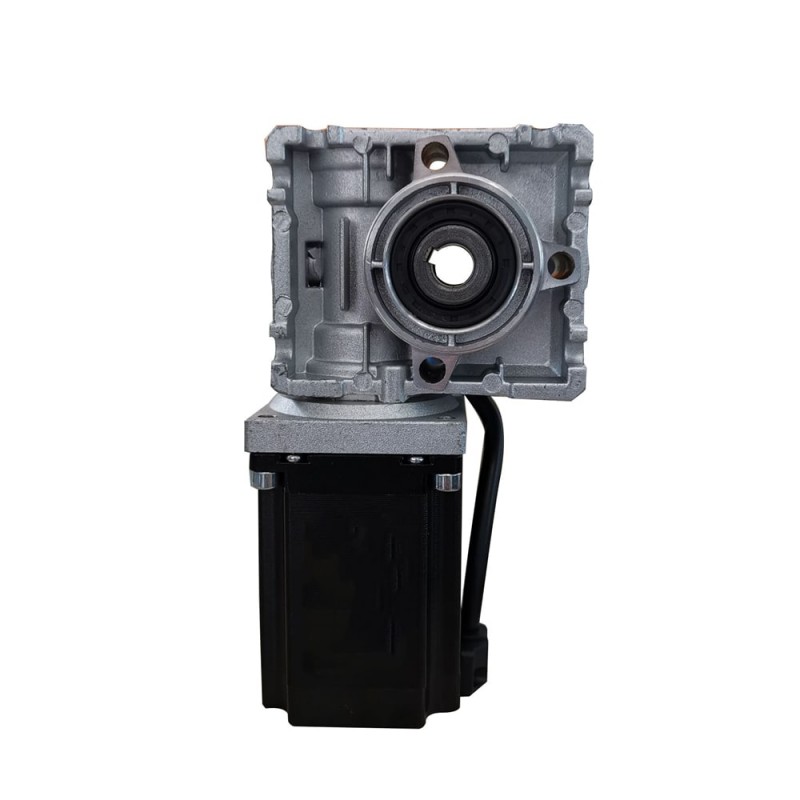

NEMA 23 Stepper Motor L=76mm 4.2A with Gear Ratio 10:1 Worm Gearbox Reducer
- Part Number: 57HS76-4204S-RV10
- Lead Time: One Week
- Unit Price: $99.00
- Sales: 6
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NENA 23 stepper motor has 76mm body and 4.2A rated current, integrated with one worm reduction gearbox of 10:1 gear ratio. It's an ideal solution to the applications that require limited space but low speed and high torque.
Motor Specification
- Part Number: 57HS76-4204S-RV10
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 1.9Nm/269.8oz.in
- Rated Current/phase:4.2A
- Driving Voltage: 24-72V
- Frame Size: 57x57mm
- Motor Length: 76mm
- Number of Leads: 4
- Lead Length: 500mm
Gearbox Specification
- Gearbox Type: Worm
- Gear Ratio: 10:1
- Shaft Diameter: Φ11mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 1.9 |
| Holding Torque(oz.in) | 269.8 |
| Rated Current(A) | 4.2 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 76 |
| Driving Voltage(VDC) | 24-72 |
| Gearbox Specification | |
| Gearbox Type | Worm |
| Gear Ratio | 10:1 |
| Shaft Diameter(mm) | 11 |
