NEMA 23 Stepper Motor L=76mm 4.2A with Gear Ratio 10:1 MG Series Planetary Gearbox
- Part Number: 57HS76-4204S-MG10
- Lead Time: In Stock
- Unit Price: $55.00
- Sales: 4
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

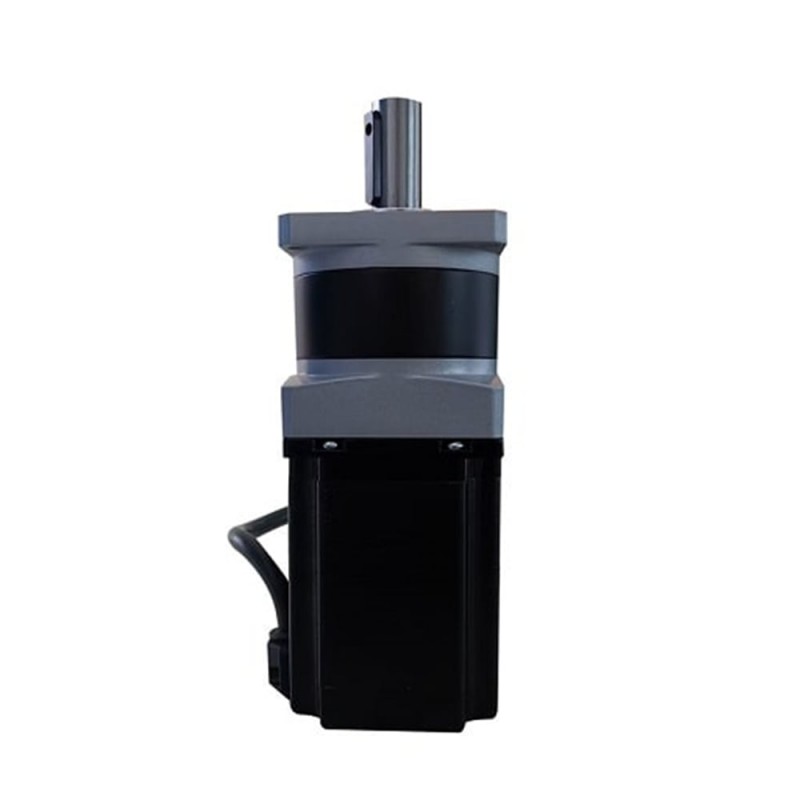

This size 57 NEMA 23 geared stepper motor is equipped with a MG series precision planetary gearbox and the gear ratio is 10:1 and the maximum backlash is 30 arc minutes. It's an ideal choice for applications that require good accuracy but low cost. Thanks to MG series' gearbox built-in shaft coupling design, you can replace the motor or gearbox easily.
Motor Specification
- Part Number: 57HS76-4204S-MG10
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 1.89Nm/268.38oz.in
- Rated Current/phase: 4.2A
- Driving Voltage: 24-72V
- Motor Length: 76mm
- Number of Leads: 4
- Lead Length: 500mm

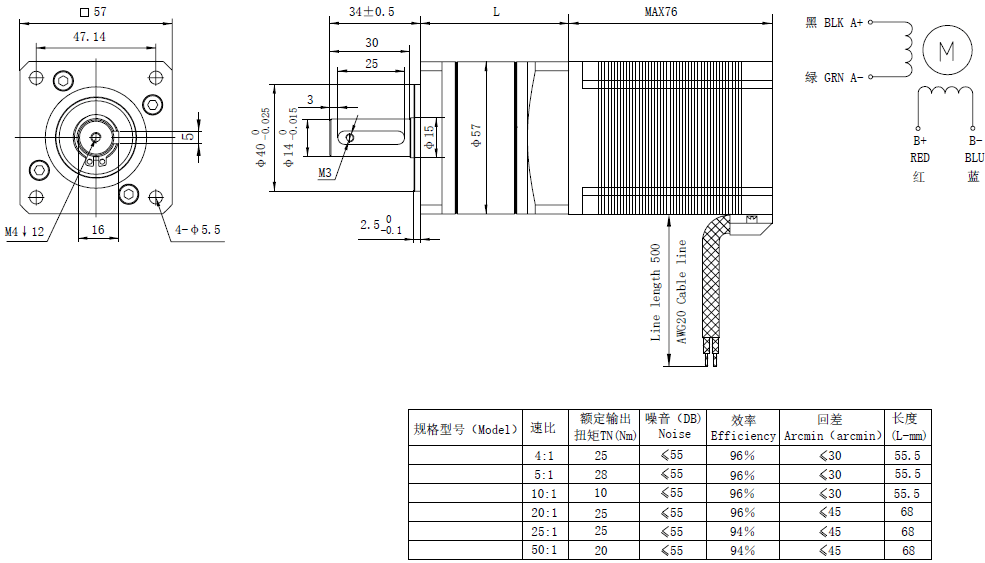

Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 10:1
- Efficiency: 96%
- Backlash at No-load: 30arcmin
- Rated Torque: 10Nm/1420oz.in
- Gearbox Length: 55.5mm
- Shaft Diameter: Φ14mm
- Shaft Length: 35mm
- Keyway length: 25mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 1.89 |
| Holding Torque(oz.in) | 268.38 |
| Rated Current(A) | 4.2 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 76 |
| Driving Voltage(VDC) | 24-72 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 10:1 |
| Efficiency | 96% |
| Backlash at No-load | 30arcmin |
| Gearbox Length(mm) | 55.5 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 34 |
