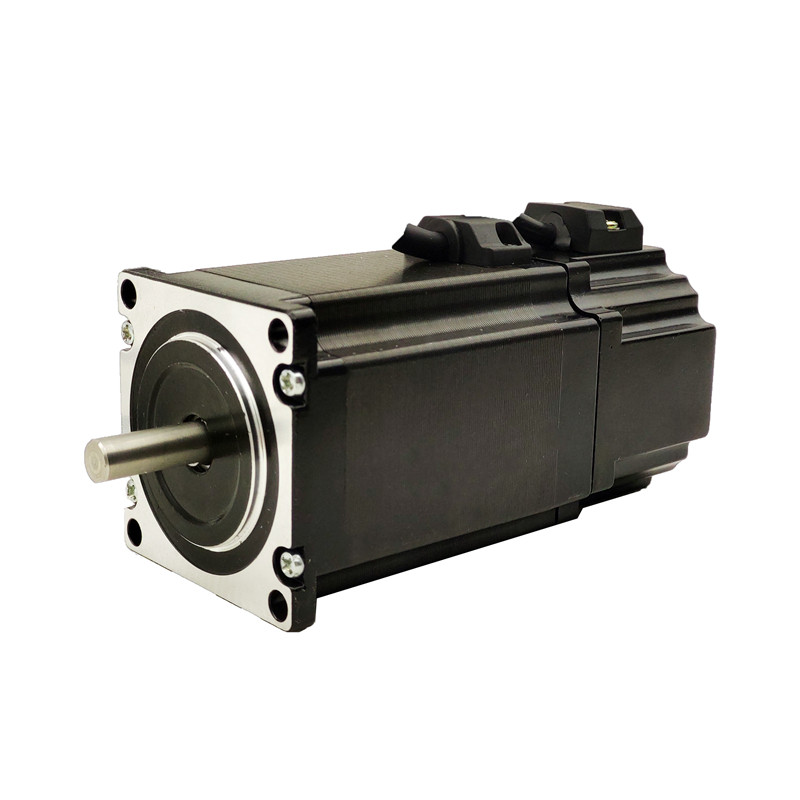

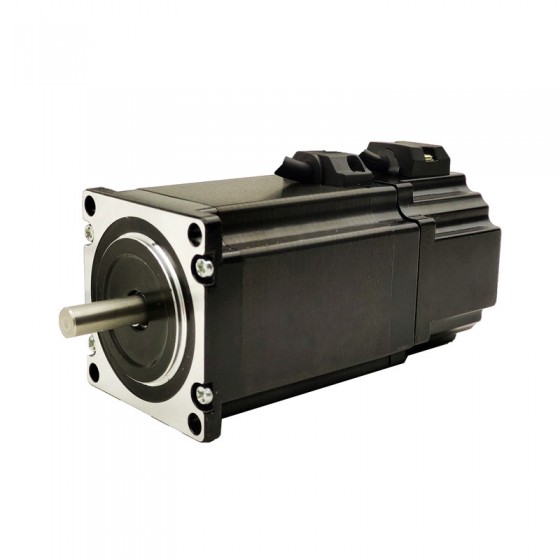

This big size 57mm NEMA 23 stepper motor has a good holding torque 2.0Nm/284oz.in with rated current 4.2A, integrated with a 24V electromagnetic brake. The brake will pause the motor shaft rotation in a very short time while the brake power is off. Frankhumotor's brake motors are absolutely an ideal solution for the machines that require frequently work and stop under vertical operation.

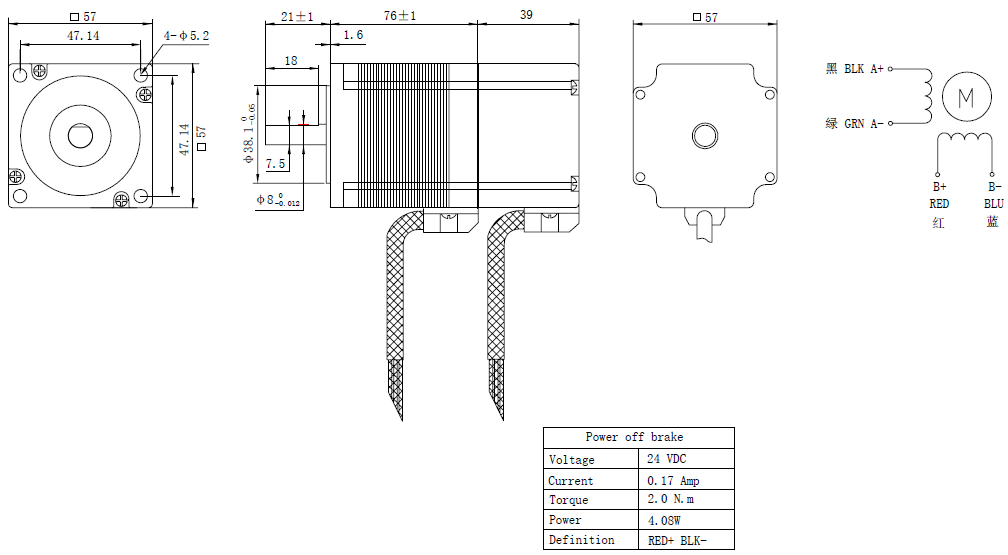

Motor Specification
- Part Number: 57HS76-4204P-B20
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 2Nm(284oz.in)
- Rated Current/phase: 4.2A
- Driving Voltage: 24-60VDC
- Frame Size: 57x57mm
- Body Length: 76mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-cut Length: 18mm
- Number of Leads: 4
- Lead Length: 500mm
Brake Connection
- Brake Type: Electromagnetic
- Brake Voltage: 24VDC
- Brake Torque: 2.0Nm
- Number of Leads: 2
- Lead Length: 500mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 2.0 |
| Holding Torque(oz.in) | 284 |
| Rated Current(A) | 4.2 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 76 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| Driving Voltage(VDC) | 24-60 |
| Brake Specification | |
| Brake Type | Electromagnetic |
| Brake Voltage(VDC) | 24 |
| Brake Torque(Nm) | 2.0 |
