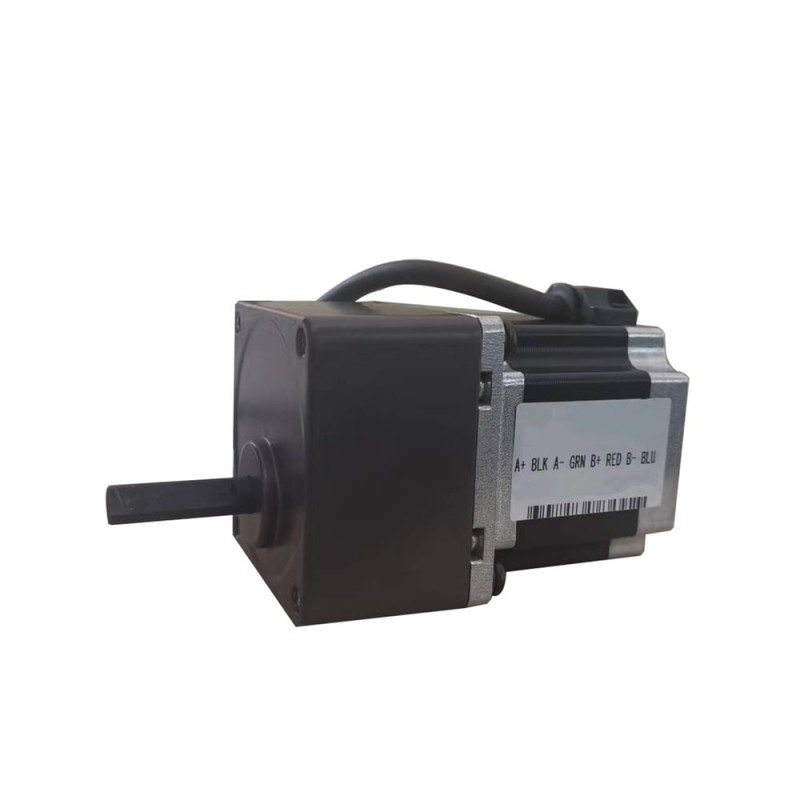

This geared NEMA 23 stepper motor has 56mm body and 2.8A rated current, integrated with one spur gearbox of gear ratio 10:1. It's an ideal solution to the applications that required limited space but low speed or high torque.
Motor Specification
- Part Number: 57HS56-2804S-SG10
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 1.2Nm/170.4oz.in
- Rated Current/phase: 2.8A
- Driving Voltage: 24-72V
- Frame Size: 57x57mm
- Motor Length: 56mm
- Number of Leads: 4
- Lead Length: 500mm
Gearbox Specification
- Gearbox Type: Spur
- Gear Ratio: 10:1
- Gearbox Length: 35mm
- Shaft Diameter: Φ8mm
- Shaft Length: 32mm
- D-cut Length: 25mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 1.2 |
| Holding Torque(oz.in) | 170.4 |
| Rated Current(A) | 2.8 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 56 |
| Driving Voltage(VDC) | 24-72 |
| Gearbox Specification | |
| Gearbox Type | Spur Gearbox |
| Gear Ratio | 10:1 |
| Gearbox Length(mm) | 35 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 32 |
