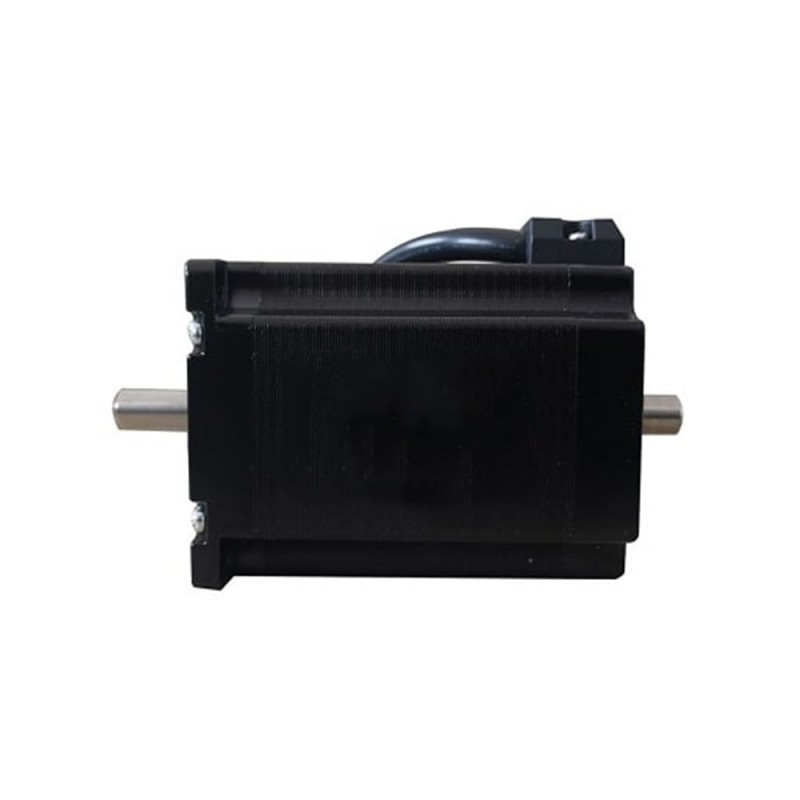

NEMA 23 Stepper Motor Dual Shaft Bipolar 1.8deg 4.2A 2.0Nm/284oz.in 57x76mm with Rear Shaft
- Part Number: 57HS76-4204D
- Lead Time: In Stock
- Unit Price: $20.00
- Sales: 8
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This is NEMA 23 stepper motor dual shaft with step angle 1.8deg and size 57x57x76mm. It has 4 wires, each phase draws larger current 4.2A, with holding torque 2.0Nm/284oz.in. A length of 15mm rear shaft is available.
Electrical Specification
- Part Number: 57HS76-4204D
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 2.0Nm/284oz.in
- Rated Current/phase: 4.2A
- Phase Resistance: 0.6ohms
- Inductance: 2.2mH
- Driving Voltage: 24-72V

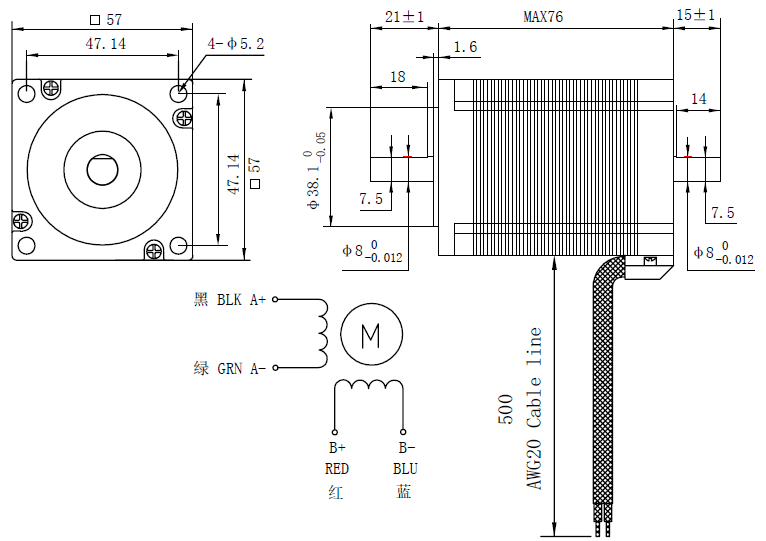

Physical Specification
- Frame Size: 57x57mm
- Body Length: 76mm
- Front Shaft Diameter: Φ8mm
- Front Shaft Length: 21mm
- Front D-cut Length: 18mm
- Rear Shaft Diameter: Φ8mm
- Rear Shaft Length: 21mm
- Rear D-cut Length: 18mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 1.1kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 2.0 |
| Holding Torque(oz.in) | 284 |
| Rated Current(A) | 4.2 |
| Phase Resistance(ohm) | 0.6 |
| Phase Inductance(mH) | 2.2 |
| Driving Voltage(VDC) | 24-72 |
| Physical Specification | |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 76 |
| Front Shaft Diameter(mm) | 8 |
| Front Shaft Length(mm) | 21 |
| Rear Shaft Diameter(mm) | 8 |
| Rear Shaft Length(mm) | 14 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 1.1 |
