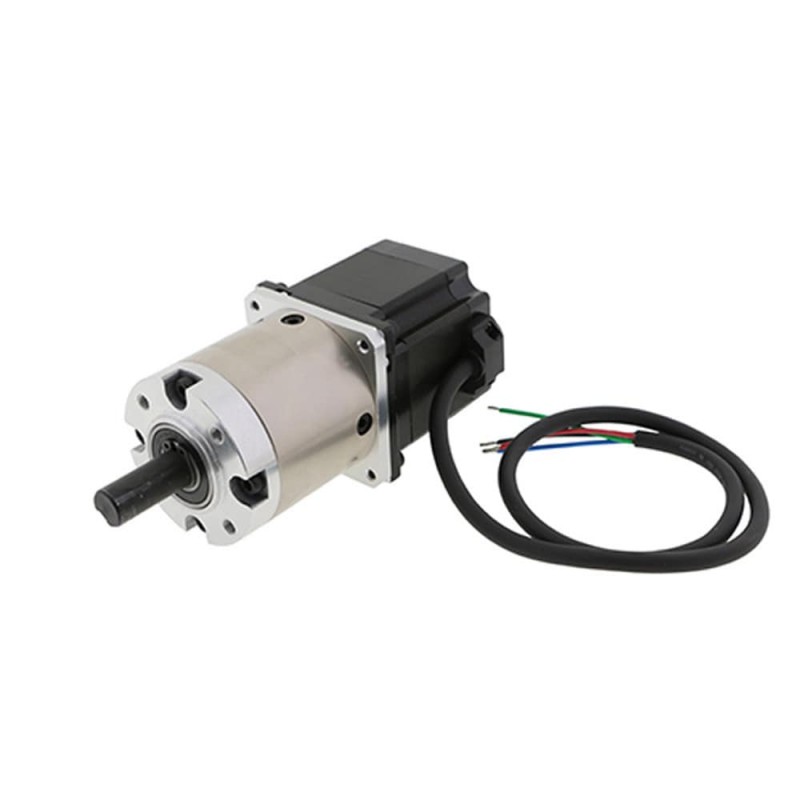

NEMA 23 Stepper Motor Bipolar L=56mm w/ Gear Ratio 4:1 Planetary Gearbox 23HS22-2804S-PG4
- Part Number: 23HS22-2804S-PG4
- Lead Time: In Stock
- Unit Price: $45.00
- Sales: 7
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 23 geared reduction stepper motor has a moderate body length 56mm and 2.8A rated current and is integrated with a planetary gearbox of 4:1 gear ratio, which generates a strong holding torque otuput upto 4.5Nm/639oz.in & a very low speed 0-125rpm. It's an ideal solution to the applications that require limited space but low speed and high torque.
Motor Specification
- Part Number: 23HS22-2804S-PG4
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 1.2Nm/170.4oz.in
- Rated Current/phase: 2.8A
- Driving Voltage: 24-72V
- Frame Size: 57x57mm
- Motor Length: 56mm
- Number of Leads: 4
- Lead Length: 500mm

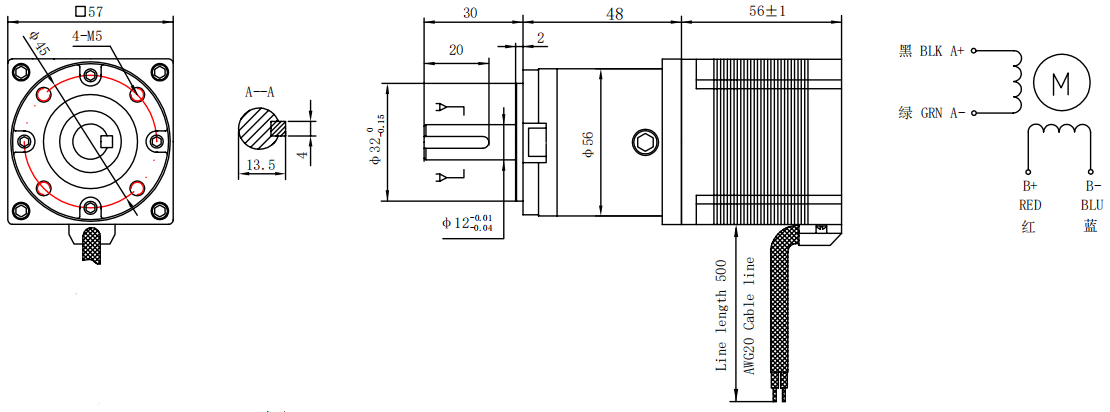

Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 4:1
- Efficiency: 90%
- Backlash at No-load: <=1.0deg
- Rated Torque: 15Nm/2130oz.in
- Maximum Permissble: 25Nm/3550oz.in
- Gearbox Length: 48mm
- Shaft Diameter: Φ12mm
- Shaft Length: 30mm
- Keyway Length: 20mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 1.2 |
| Holding Torque(oz.in) | 170.4 |
| Rated Current(A) | 2.8 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 56 |
| Driving Voltage(VDC) | 24-72 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 4:1 |
| Efficiency | 90% |
| Backlash at No-load | 1.0deg |
| Gearbox Length(mm) | 48 |
| Shaft Diameter(mm) | 12 |
| Shaft Length(mm) | 30 |
