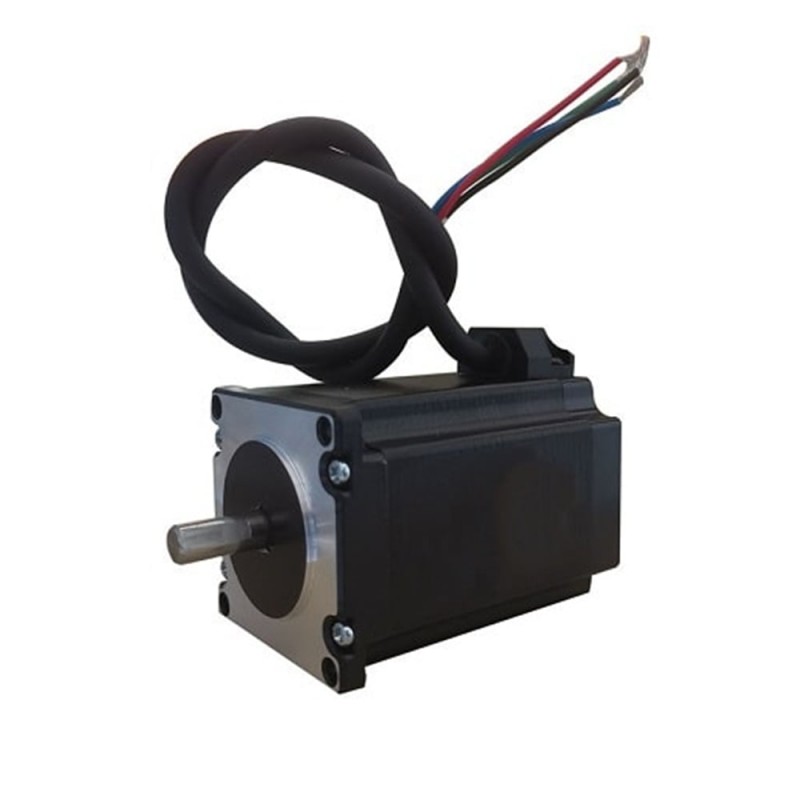

This bipolar NEMA 23 stepper motor has one strong holding torque 2.6Nm/369.2oz.in with rated current 5.0A each phase. Please note the output shaft diameter is 8mm.
Electrical Specification
- Part Number: 57HS84-5004S
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 2.6Nm/369.2oz.in
- Rated Current/phase: 5.0A
- Phase Resistance: 0.44ohms
- Inductance: 2.0mH
- Driving Voltage: 24-72V

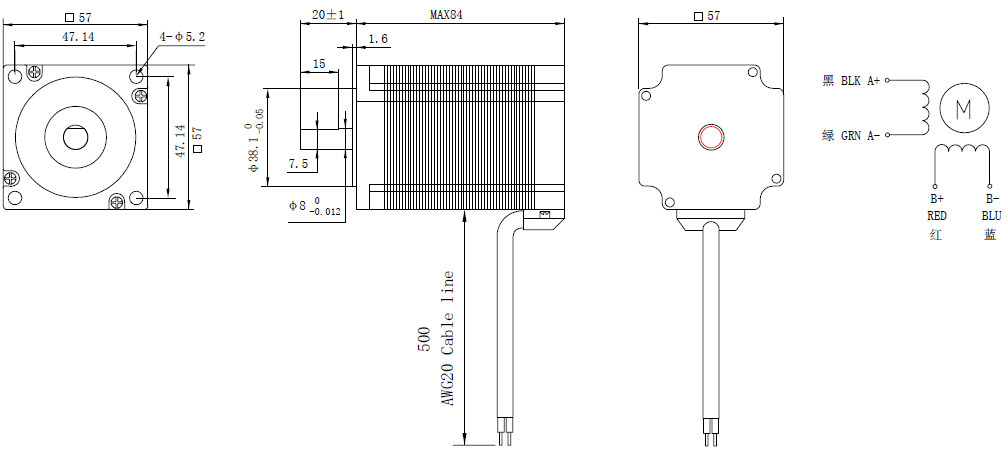

Physical Specification
- Frame Size: 57x57mm
- Body Length: 84mm
- Shaft Diameter: Φ8mm
- Shaft Length: 20mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 1.3kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 2.6 |
| Holding Torque(oz.in) | 369.2 |
| Rated Current(A) | 5.0 |
| Phase Resistance(ohm) | 0.44 |
| Phase Inductance(mH) | 2.0 |
| Driving Voltage(VDC) | 24-72 |
| Physical Specification | |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 84 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 20 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 1.3 |
