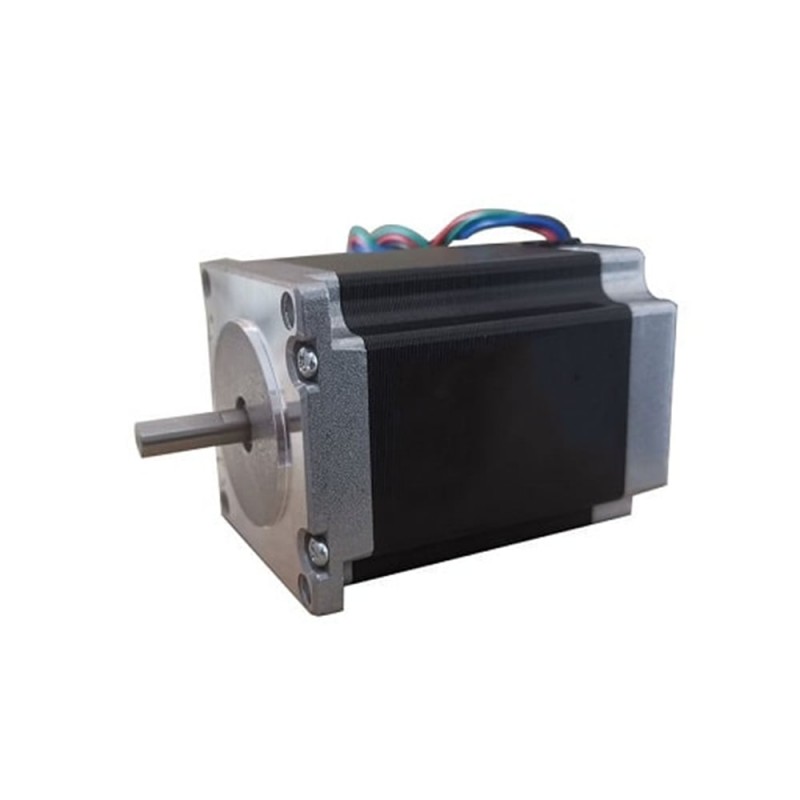

This bipolar NEMA 23 stepper motor has one holding torque 1.9Nm with rated current 3.0A each phase.
Electrical Specification
- Part Number: 57HS76-3004S
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 1.9Nm/269.8oz.in
- Rated Current/phase: 3.0A
- Phase Resistance: 1.13ohms
- Inductance: 4.8mH
- Driving Voltage: 24-72V

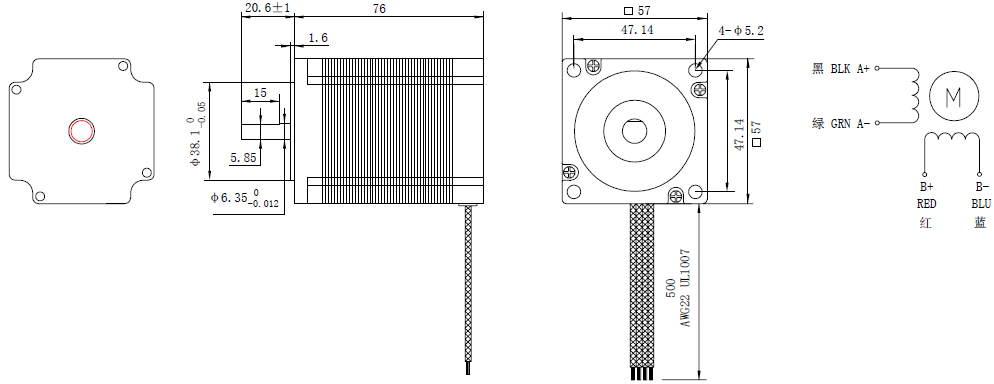

Physical Specification
- Frame Size: 57x57mm
- Body Length: 76mm
- Shaft Diameter: Φ6.35mm
- Shaft Length: 20.6mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 1.1kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 1.9 |
| Holding Torque(oz.in) | 269.8 |
| Rated Current(A) | 3.0 |
| Phase Resistance(ohm) | 1.13 |
| Phase Inductance(mH) | 4.8 |
| Driving Voltage(VDC) | 24-72 |
| Physical Specification | |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 76 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 6.35 |
| Shaft Length(mm) | 21 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 1.1 |
