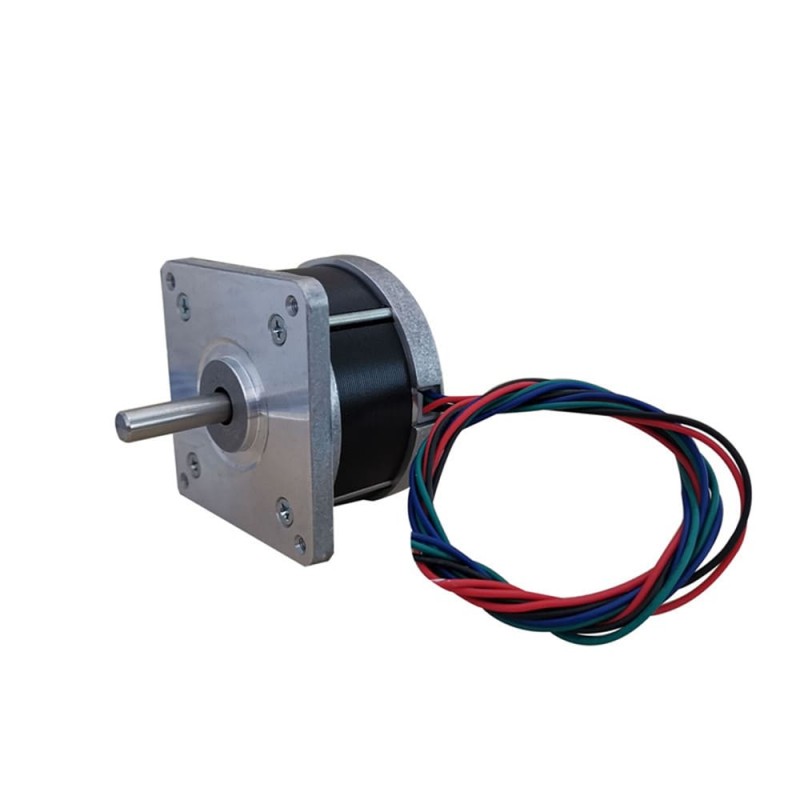

NEMA 23 Stepper Motor Bipolar 1.8deg 2.8A 0.8Nm/113.6oz.in 57x35mm Φ6.35mm Shaft
- Part Number: 57HS35-2804S
- Lead Time: In Stock
- Unit Price: $35.00
- Sales: 7
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This round NEMA 23 pancake stepper motors has one ultra thin body 35mm and 4 wires, each phase drawing 2.8A current with holding torque 0.8Nm/113.6oz.in.
Electrical Specification
- Part Number: 57HS35-2804S
- Step Angle: 1.8deg
- Bi/UnIpolar: Bipolar
- Holding Torque: 0.8m/113.6oz.in
- Rated Current/phase: 2.8A
- Phase Resistance: 0.6ohms
- Inductance: 1.7mH
- Driving Voltage: 12-60V

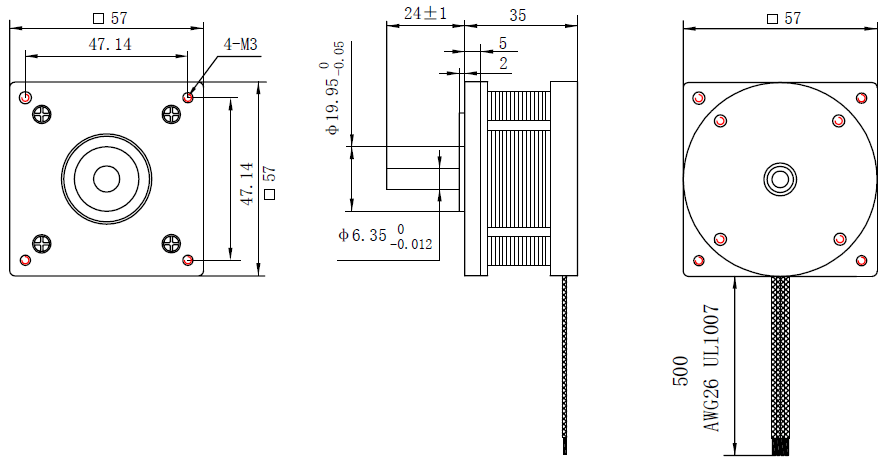

Physical Specification
- Frame Size: Φ57mm
- Body Length: 35mm
- Shaft Diameter: Φ6.35mm
- Shaft Length: 24mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.4kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.8 |
| Holding Torque(oz.in) | 113.6 |
| Rated Current(A) | 2.8 |
| Phase Resistance(ohm) | 0.6 |
| Phase Inductance(mH) | 1.7 |
| Driving Voltage(VDC) | 12-60 |
| Physical Specification | |
| Frame Size(mm) | Φ57 |
| Body Length(mm) | 35 |
| Shaft Type | Round |
| Shaft Diameter(mm) | 6.35 |
| Shaft Length(mm) | 24 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.4 |
