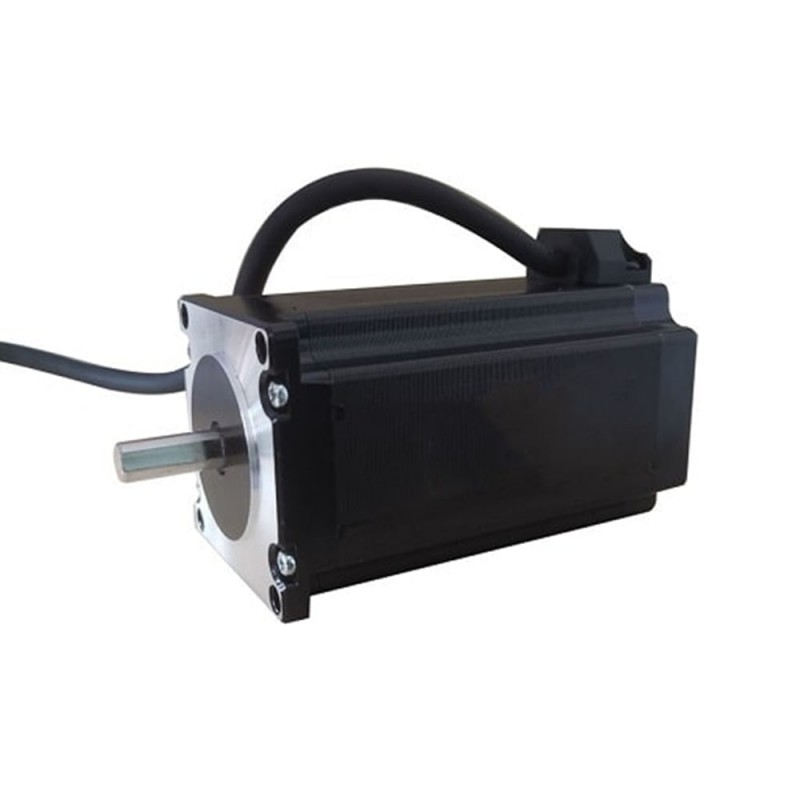

This is bipolar NEMA 23 stepper motor with step angle 1.8deg and size 57x57x100mm. It has 4 wires, each phase draws 1.8A, with holding torque 2.4Nm/340.8oz.in.
Electrical Specification
- Part Number: 57HS100-1804S
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 2.4Nm/340.8oz.in
- Rated Current/phase: 1.8A
- Phase Resistance: 2.75ohms
- Inductance: 12.0mH
- Driving Voltage: 24-72V

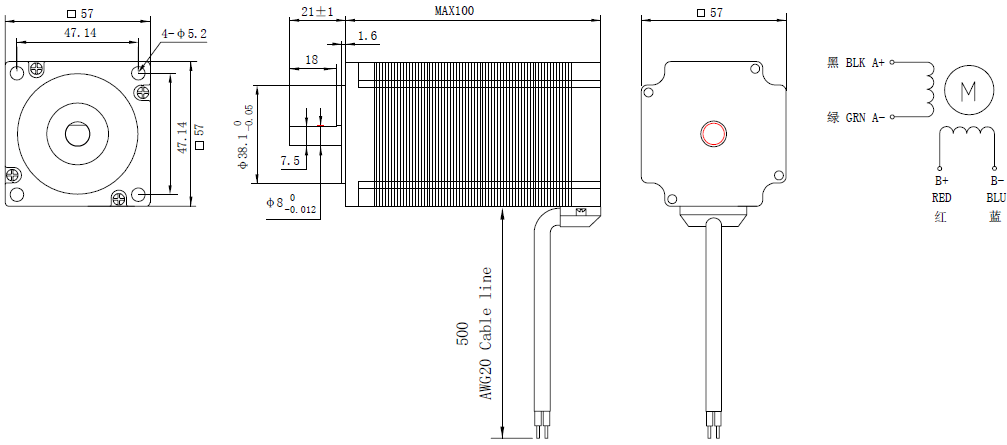

Physical Specification
- Frame Size: 57x57mm
- Body Length: 100mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-cut Length: 18mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 1.4kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 2.4 |
| Holding Torque(oz.in) | 340.8 |
| Rated Current(A) | 1.8 |
| Phase Resistance(ohm) | 2.75 |
| Phase Inductance(mH) | 17 |
| Driving Voltage(VDC) | 24-72 |
| Physical Specification | |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 100 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 1.4 |
