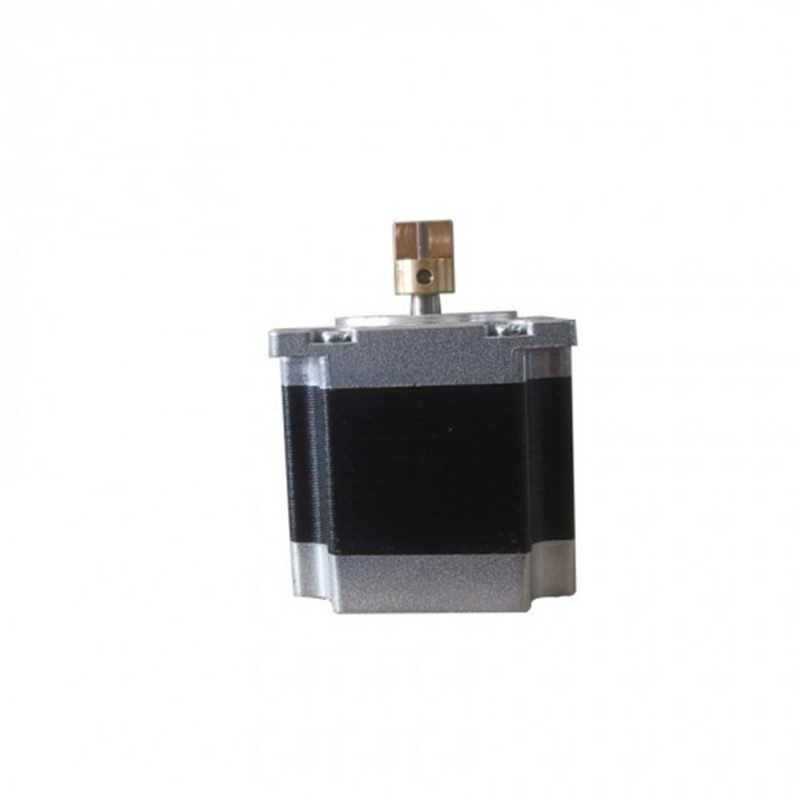

This bipolar NEMA 23 stepper motor has one holding torque 0.8Nm/113..6oz.in with rated current 1.5A each phase. A shaped joint is installed into the output shaft to be specially used for peristaltic pump.
Electrical Specification
- Part Number: 57HS56-1504KC
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.8Nm/113.6oz.in
- Rated Current/phase: 1.5A
- Phase Resistance: 1.4ohms
- Inductance: 4.3mH
- Driving Voltage: 24-72V

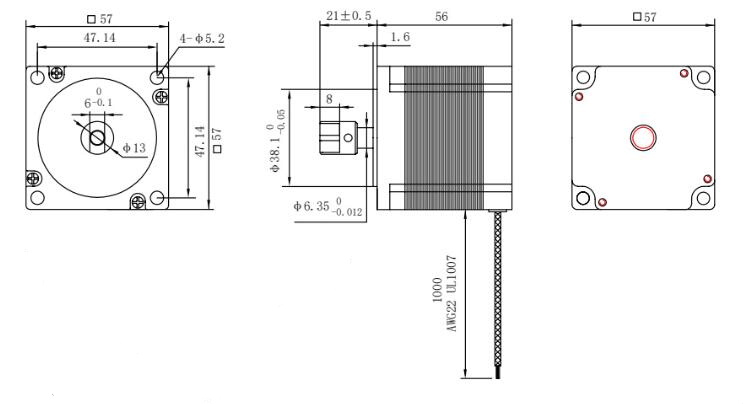

Physical Specification
- Frame Size: 57x57mm
- Body Length: 56mm
- Shaft Diameter: Φ6.35mm
- Shaft Length: 21mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 0.7kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.8 |
| Holding Torque(oz.in) | 113.6 |
| Rated Current(A) | 1.5 |
| Phase Resistance(ohm) | 1.4 |
| Phase Inductance(mH) | 4.3 |
| Driving Voltage(VDC) | 24-72 |
| Physical Specification | |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 56 |
| Shaft Type | Round |
| Shaft Diameter(mm) | 6.35 |
| Shaft Length(mm) | 21 |
| No. of Leads | 4 |
| Lead Length(mm) | 1000 |
| Weight(KG) | 0.7 |
