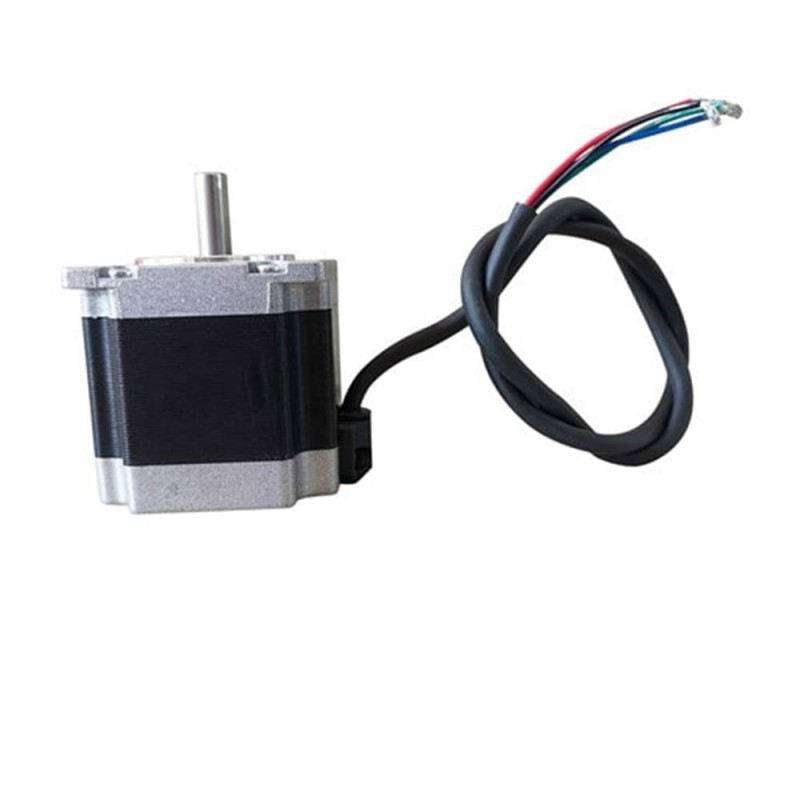

NEMA 23 Stepper Motor Bipolar 0.9deg 2.8A 1.15Nm/163.3oz.in 57x56mm Φ6.35mm Shaft
- Part Number: 57HM56-2804S
- Lead Time: In Stock
- Unit Price: $20.00
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This is bipolar NEMA 23 stepper motor with step angle 0.9degree/400 stes per revolution and szie 57x57x56mm. It has 4 wires, each phase draws current 2.8A and with holding torque 1.15Nm/163.3oz.in and a output shaft diameter 6.35mm.
Electrical Specification
- Part Number: 57HM56-2804S
- Step Angle: 0.9deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 1.15Nm/163.3oz.in
- Rated Current/phase: 2.8A
- Phase Resistance: 1.0ohms
- Inductance: 4.5mH
- Driving Voltage: 24-72V

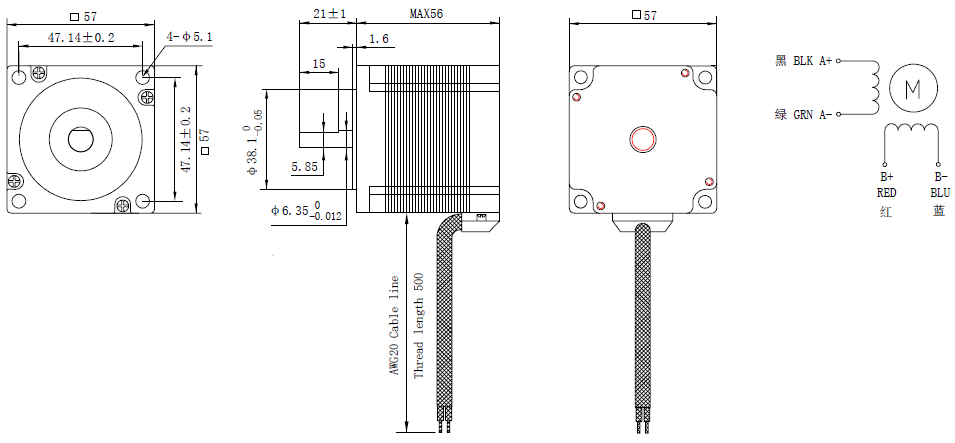

Physical Specification
- Frame Size: 57x57mm
- Body Length: 56mm
- Shaft Diameter: Φ6.35mm
- Shaft Length: 21mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.6kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 0.9 |
| Holding Torque(Nm) | 1.15 |
| Holding Torque(oz.in) | 163.3 |
| Rated Current(A) | 2.8 |
| Phase Resistance(ohm) | 1.0 |
| Phase Inductance(mH) | 4.5 |
| Driving Voltage(VDC) | 24-72 |
| Physical Specification | |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 56 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 6.35 |
| Shaft Length(mm) | 21 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.6 |
