NEMA 23 Linear Actuator Stepper Motor 56mm Stack 2.0A Lead 4mm Screw Length 200mm
- Part Number: 57AI56-2004E-200L114
- Lead Time: In Stock
- Unit Price: $65.00
- Sales: 7
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

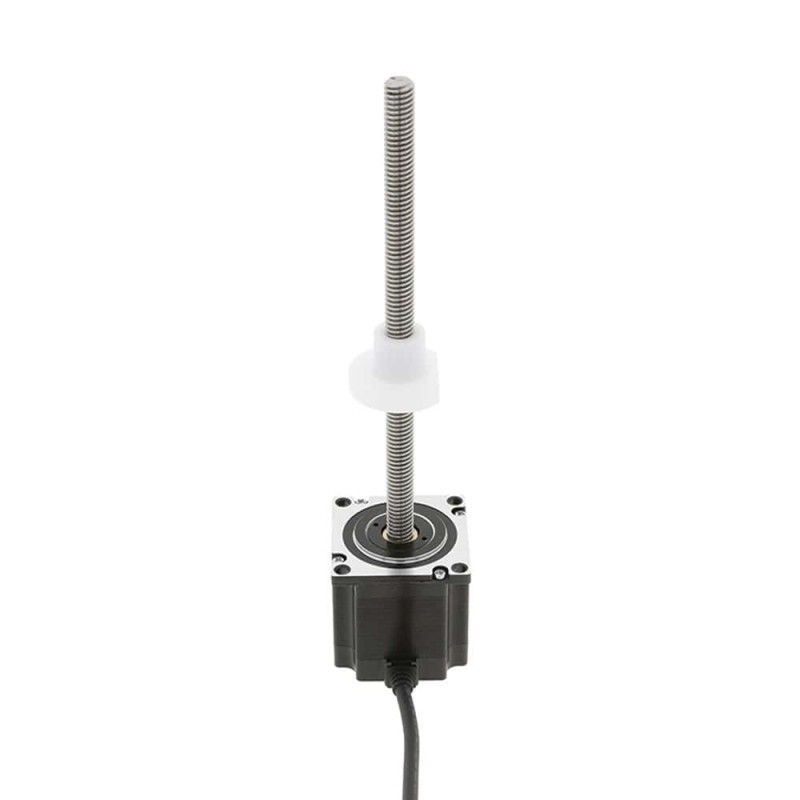

This electric motor is a NEMA 23 External linear actuator with body part 56mm size 57 stepper motor. It is integrated with with a Φ11mm diameter 200mm length lead screw and a POM screw nut and the linear travel is 4mm per revolution & 0.02mm per step.
Electrical Specification
- Part Number: 57AI56-2004E-200L114
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 1.2Nm170.4oz.in
- Rated Current/phase: 2.0A
- Driving Voltage: 24-110V
Physical Specification
- Frame Size: 57x57mm
- Body Length: 56mm
- Lead Screw Length: 200mm
- Lead Screw Diameter: Φ11mm
- Lead /Step: 0.02mm
- Lead/Revolution: 4mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.7kg
Contact Us
| Motor Specification | |
| Motor Type | External |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 1.2 |
| Holding Torque(oz.in) | 170.4 |
| Rated Current(A) | 2.0 |
| Frame Size(mm) | 57x57 |
| Stack Length(mm) | 56 |
| Driving Voltage(VDC) | 24-72 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 200 |
| Lead Screw Diameter(mm) | 11 |
| Lead Travel/Revolution(mm) | 4 |
| Lead Travel/Step(mm) | 0.02 |
