NEMA 23 Linear Actuator Non-captive Stepper Motor 76mm Stack 4.2A Lead 4mm Length 300mm
- Part Number: 57HS76-G300N114
- Lead Time: In Stock
- Unit Price: $70.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

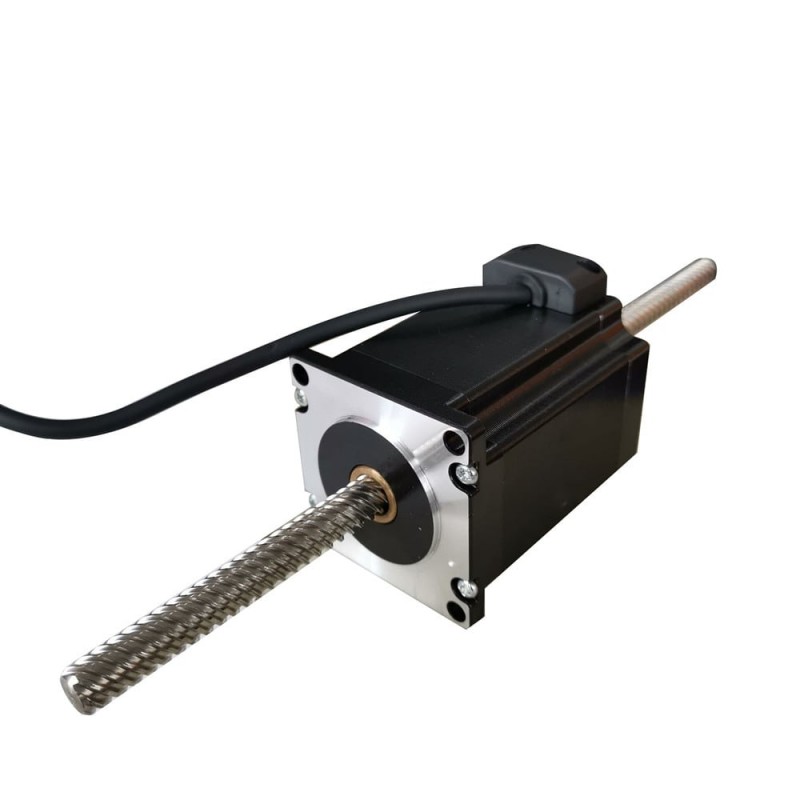

This noncaptive linear actuator electric motor is one size 57mm NEMA 23 linear motion stepper motor with a 76mm body length, 1.8 degree step angle and 4.2A rated current. It is integrated with a 11mm diameter lead screw & lead 4mm per revolution/0.02mm per step, and lead screw length is 300mm.
Electrical Specification
- Part Number: 57HS76-G300N114
- Motor Type: Non-catpive Linear Stepper
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 1.8Nm(255.6oz.in)
- Rated Current/phase: 4.0A
- Driving Voltage: 24-60V

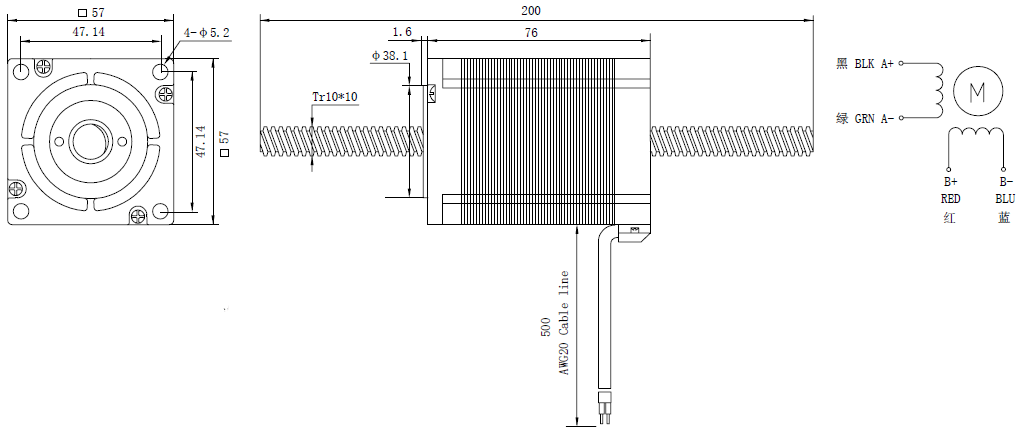

Physical Specification
- Frame Size: 57x57mm
- Motor Length: 76mm
- Lead Screw Length: 300mm
- Lead Screw Diameter: Φ11mm
- Lead Screw/Step: 0.02mm
- Lead Screw/Revolution: 4mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 1.3KG
Contact Us
| Motor Specification | |
| Motor Type | Non-captive Linear Stepper |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 1.8 |
| Holding Torque(oz.in) | 255.6 |
| Rated Current(A) | 4.2 |
| Frame Size(mm) | 57x57 |
| Stack Length(mm) | 76 |
| Driving Voltage(VDC) | 24-60 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 300 |
| Lead Screw Diameter(mm) | 11 |
| Lead Travel/Revolution(mm) | 4 |
| Lead Travel/Step(mm) | 0.02 |
