NEMA 23 Linear Actuator External Stepper Motor 56mm Stack 2.8A Lead 8mm Length 300mm
- Part Number: 57HS56-2804E-300N88
- Lead Time: In Stock
- Unit Price: $55.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

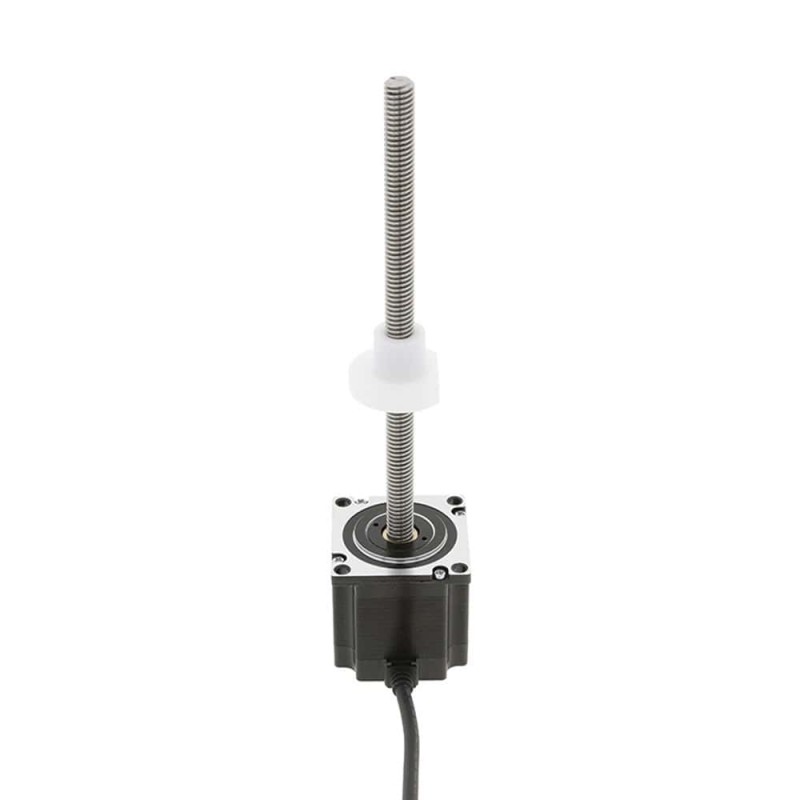

This external linear actuator electric motor is one size 57mm NEMA 23 linear motion stepper motor with a 56mm body length, 1.8 degree step angle and 2.8A rated current. It is integrated with a 8mm diameter lead screw & lead 8mm per revolution/0.04mm per step, POM screw nut, and lead screw length is 300mm.
Electrical Specification
- Part Number: 57HS56-2804E-300N88
- Motor Type: External Linear Stepper
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 1.2Nm(170.4oz.in)
- Rated Current/phase: 2.8A
- Driving Voltage: 24-60V

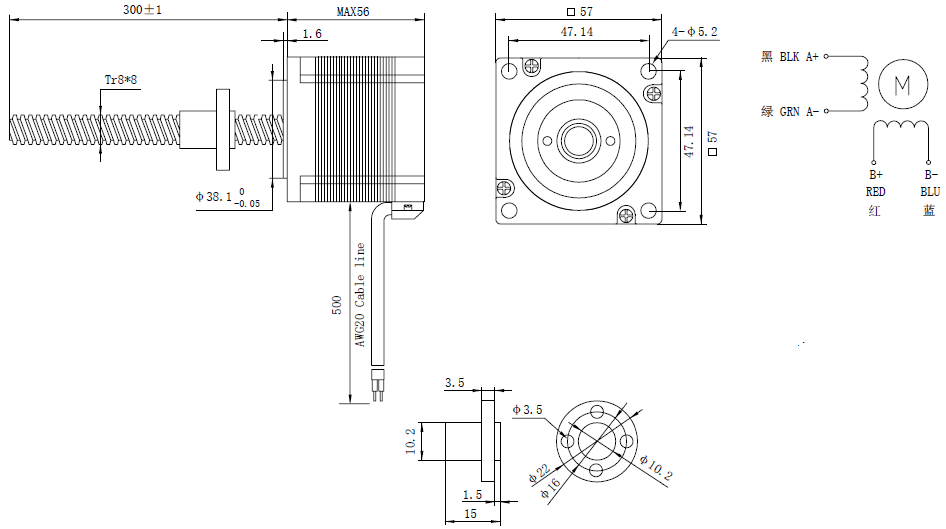

Physical Specification
- Frame Size: 57x57mm
- Motor Length: 56mm
- Lead Screw Length: 300mm
- Lead Screw Diameter: Φ8mm
- Lead Screw/Step: 0.04mm
- Lead Screw/Revolution: 8mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.7KG
Contact Us
| Motor Specification | |
| Motor Type | External Linear Stepper |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 1.2 |
| Holding Torque(oz.in) | 170.4 |
| Rated Current(A) | 2.8 |
| Frame Size(mm) | 57x57 |
| Stack Length(mm) | 56 |
| Driving Voltage(VDC) | 24-60 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 300 |
| Lead Screw Diameter(mm) | 8 |
| Lead Travel/Revolution(mm) | 8 |
| Lead Travel/Step(mm) | 0.04 |
