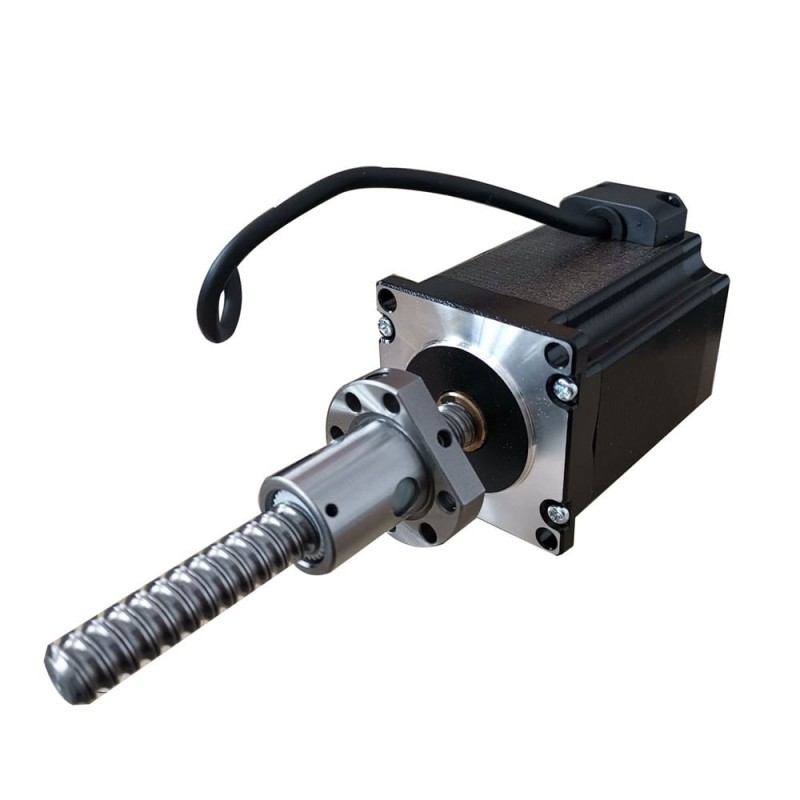

NEMA 23 Linear Actuator Ball Screw Stepper Motor 76mm Stack 4.2A Lead 4mm Length 200mm
- Part Number: 57HS76-4204G-200N1204
- Lead Time: In Stock
- Unit Price: $80.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This ball screw linear actuator electric motor is one size 57mm NEMA 23 linear motion stepper motor with a 76mm body length, 1.8 degree step angle and 4.2A rated current. It is integrated with a 12mm diameter ball screw & lead 4mm per revolution/0.02mm per step, and ball screw length is 200mm.
Electrical Specification
- Part Number: 57HS76-4204G-200N1204
- Motor Type: Ball Screw Linear Stepper
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 1.8Nm(255.6oz.in)
- Rated Current/phase: 4.0A
- Driving Voltage: 24-60V

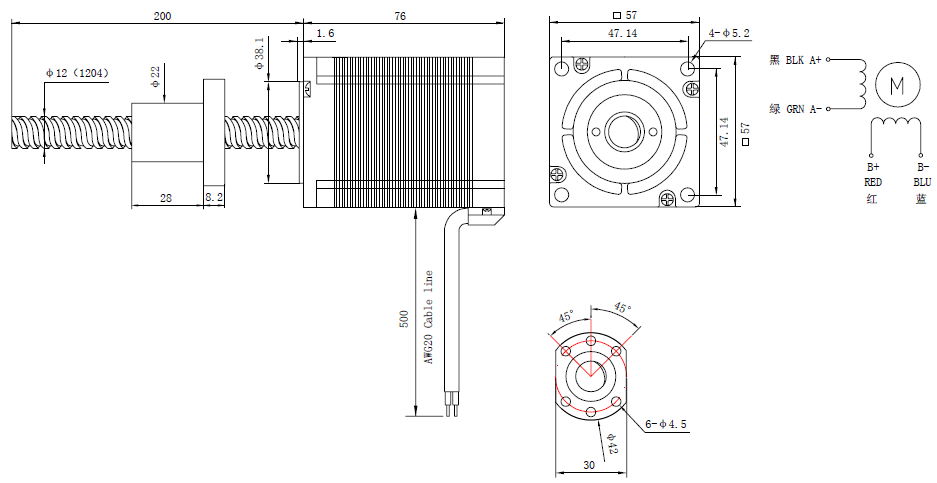

Physical Specification
- Frame Size: 57x57mm
- Motor Length: 76mm
- Ball Screw Length: 200mm
- Ball Screw Diameter: Φ12mm
- Ball Screw/Step: 0.02mm
- Ball Screw/Revolution: 4mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 1.3KG
Contact Us
| Motor Specification | |
| Motor Type | Ball Screw Linear Stepper |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 1.8 |
| Holding Torque(oz.in) | 255.6 |
| Rated Current(A) | 4.2 |
| Frame Size(mm) | 57x57 |
| Stack Length(mm) | 76 |
| Driving Voltage(VDC) | 24-72 |
| Ball Screw Specification | |
| Ball Screw Length(mm) | 200 |
| Ball Screw Diameter(mm) | 12 |
| Ball Screw Travel/Revolution(mm) | 4 |
| Ball Screw Travel/Step(mm) | 0.02 |
