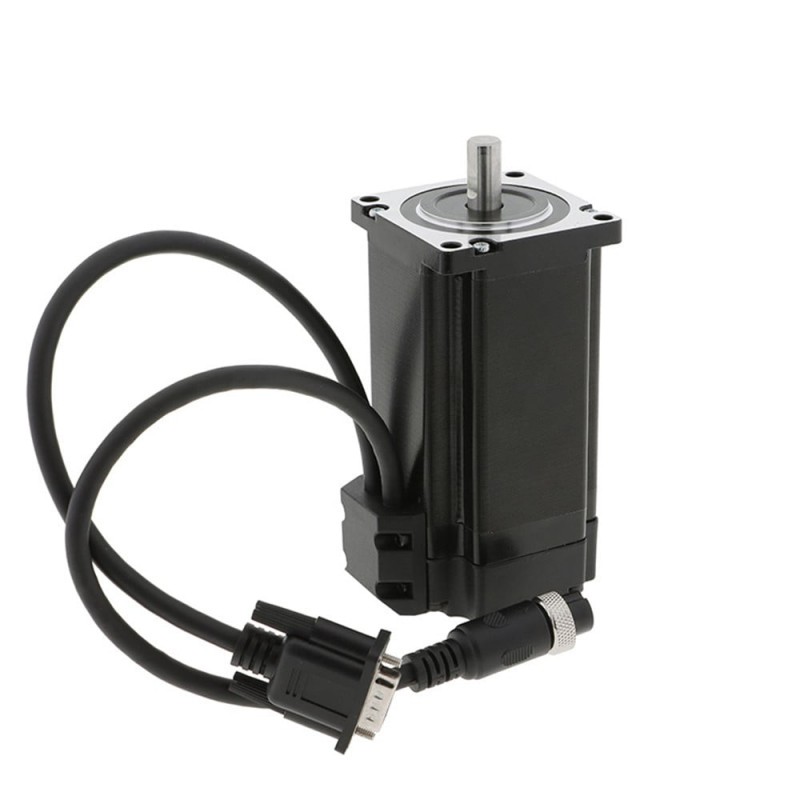

NEMA 23 Closed-loop Stepper Motor 3.5A 1.2Nm/170.4oz.in
- Part Number: 57HS56-3504E1K
- Lead Time: In Stock
- Unit Price: $40.00
- Sales: 12
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This big closed-loop NEMA 23 stepper motor, which is integrated with a 1000cpr optical incremental encoder, has a rated current of 3.5A and a holding torque of 1.2Nm(170.4oz.in). it performs more accuracy, higher torque, less motor heating, lower power consumption, and better response to external factors, compared to the open loop stepper motors.

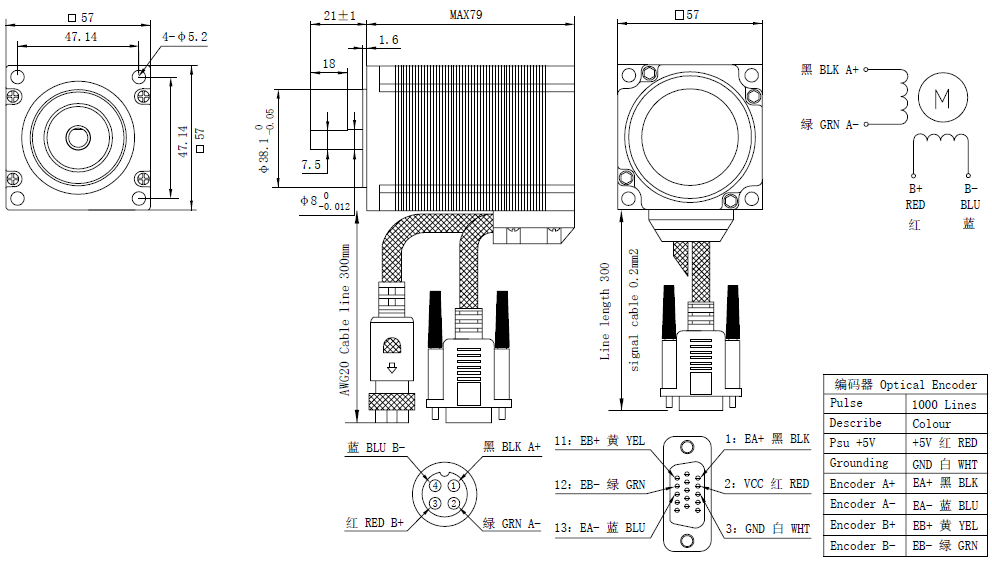

Electrical Specification
- Part Number: 57HS56-3504E1K
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 1.2Nm/170.4oz.in
- Rated Current/phase: 3.5A
- Driving Voltage: 24-72V
- Frame Size: 57x57mm
- Body Length: 56mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 300mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000CPR
- Encoder Signal Channels: 2
- No. of Leads: 6
- Lead Length: 300mm
- Supply Voltage: 5.0V
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 1.2 |
| Holding Torque(oz.in) | 170.4 |
| Rated Current(A) | 3.5 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 56 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| Driving Voltage(VDC) | 24-60 |
| Encoder Specification | |
| Encoder Resolution(CPR) | 1000 |
| Encoder Type | Incremental |
| Supply Voltage(VDC) | 5.0 |
