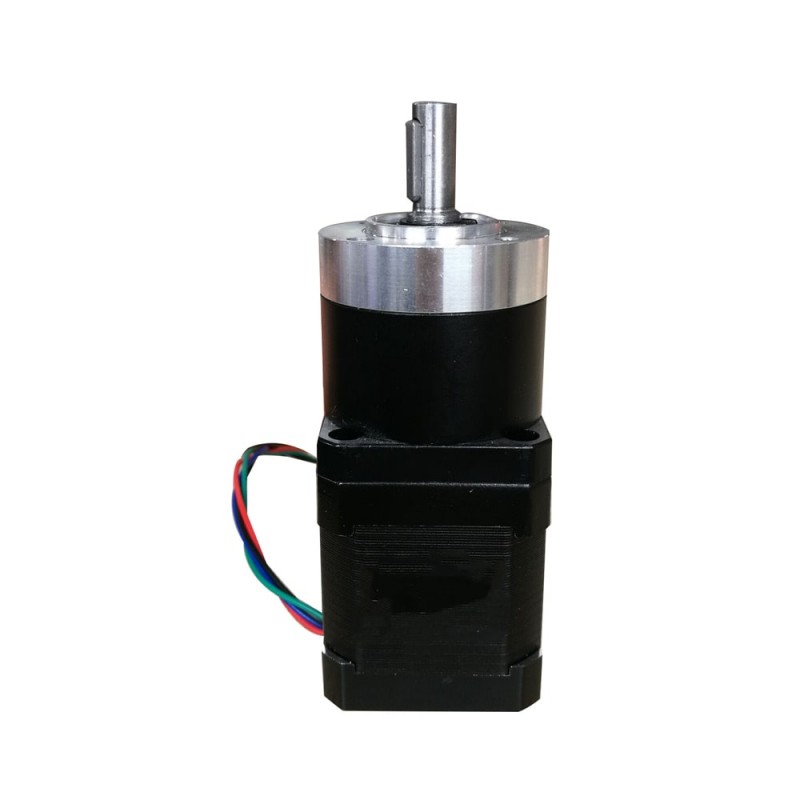

NEMA 17 Stepper Motor L=48mm 1.68A with Gear Ratio 10:1 Precision Planetary Gearbox
- Part Number: 42HS48-1684S-HG10
- Lead Time: In Stock
- Unit Price: $50.00
- Sales: 3
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 17 geared reduction stepper motor has a moderate body length 48mm and 1.68A rated current, which is integrated with a precision & low backlash planetary gearbox of 10:1 gear ratio, generating a strong holding torque otuput upto 4.8Nm/681.6oz.in & a very low speed 0-100rpm. It's an ideal solution to the applications that require limited space but low speed and high torque.

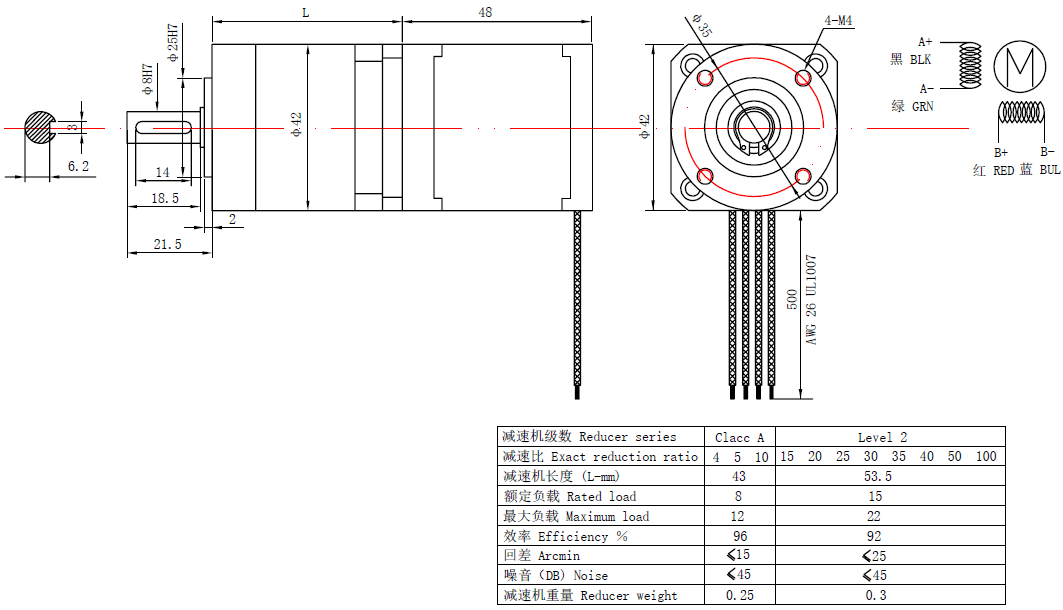

Motor Specification
- Part Number: 42HS48-1684S-HG10
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.5Nm/71oz.in
- Rated Current/phase: 1.68A
- Driving Voltage: 12-24V
- Frame Size: 42x42mm
- Motor Length: 48mm
- Number of Leads: 4
- Lead Length: 500mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 10:1
- Efficiency: 96%
- Backlash at No-load: 15arcmin
- Rated Torque: 8Nm/1136oz.in
- Gearbo Length: 43mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21.5mm
- Keyway Length: 14mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.5 |
| Holding Torque(oz.in) | 71 |
| Rated Current(A) | 1.68 |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 48 |
| Driving Voltage(VDC) | 12-24 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 10:1 |
| Efficiency | 96% |
| Backlash at No-load | 15arcmin |
| Gearbox Length(mm) | 43 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21.5 |
