NEMA 17 Stepper Motor Dual Shaft L=40mm with Gear Ratio 10:1 High Precision Planetary Gearbox
- Part Number: 42HS40-1684B-KG10
- Lead Time: In Stock
- Unit Price: $50.00
- Sales: 26
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

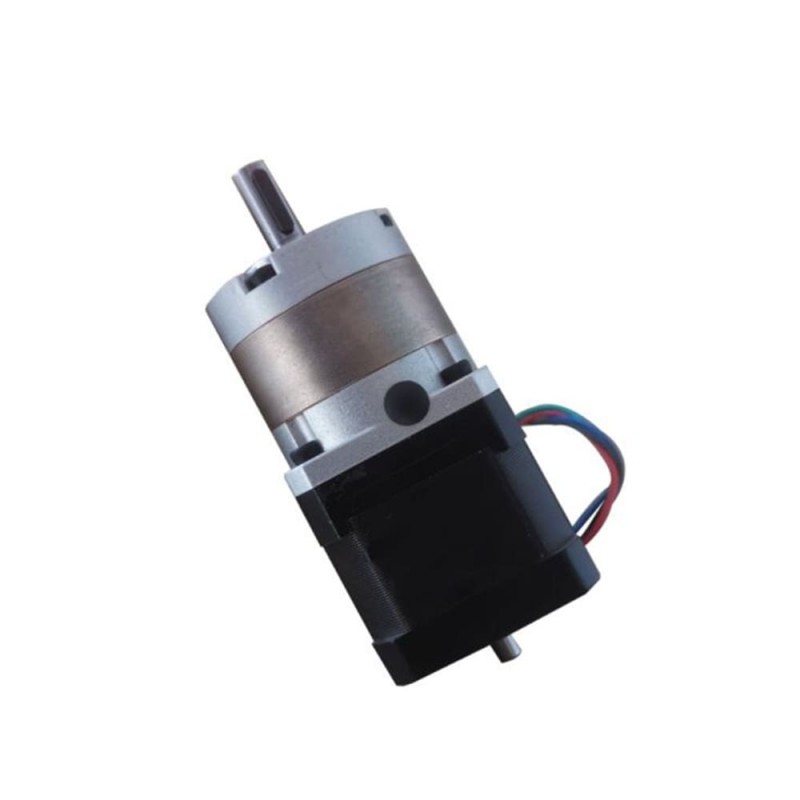

This NEMA 17 geared reduction stepper motor DUAL SHAFT has a moderate body length 40mm and 1.68A rated current and is integrated with a high precision & low backlash planetary gearbox of 10:1 gear ratio, which generates a strong holding torque otuput upto 4.3Nm/610.6oz.in & a very low speed 0-100rpm. A leng of 9.5mm rear shaft and four M3 threaded holes on the back of cap are available. It's an ideal solution to the applications that require limited space but low speed and high torque.
Motor Specification
- Part Number: 42HS40-1684B-KG10
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.45Nm/63.9oz.in
- Rated Current/phase: 1.68A
- Driving Voltage: 12-24V
- Frame Size: 42x42mm
- Motor Length: 40mm
- Rear Shaft Diameter:Φ5mm
- Rear Shaft Length: 9.5mm
- Number of Leads: 4
- Lead Length: 1200mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 10:1
- Efficiency: 96%
- Backlash at No-load: 15arcmin
- Gearbo Length: 40mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21.5mm
- Keyway Length: 14mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.45 |
| Holding Torque(oz.in) | 63.9 |
| Rated Current(A) | 1.68 |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 40 |
| Rear Shaft Diameter(mm) | 5 |
| Rear Shaft Length(mm) | 9.5 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 10:1 |
| Efficiency | 96% |
| Backlash at No-load | 15arcmin |
| Gearbox Length(mm) | 40 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21.5 |
