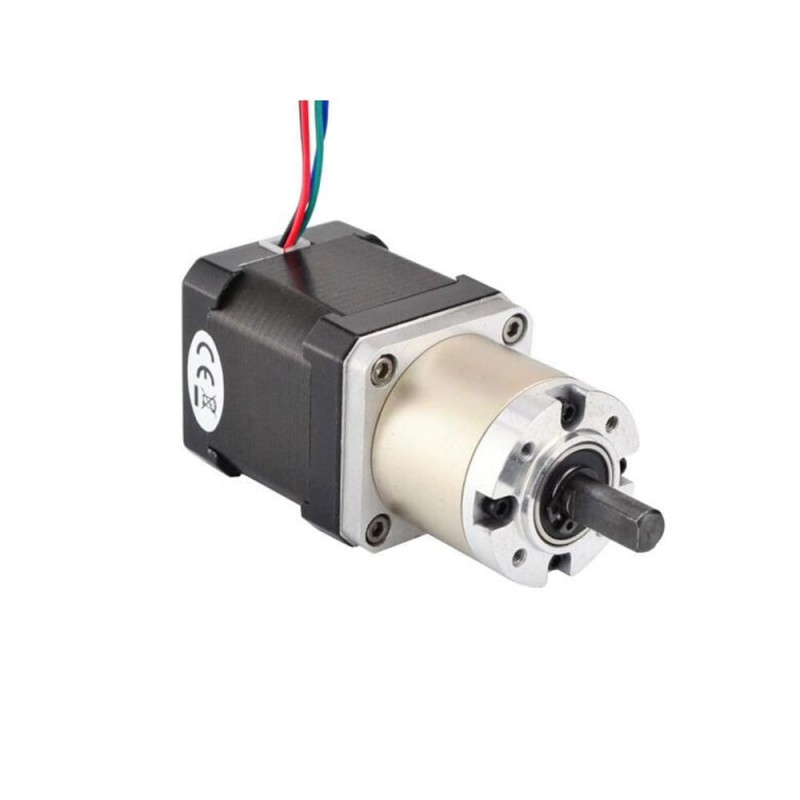

NEMA 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 19:1 Planetary Gearbox 17HS19-1684S-PG19
- Part Number: 17HS19-1684S-PG19
- Lead Time: In Stock
- Unit Price: $25.00
- Sales: 9
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This geared NEMA 17 stepper motor has 48mm body and 1.68A rated current, integrated with one planetary gearbox of 19:1 gear ratio. It's an ideal solution to the applications that require limited space but low speed and high torque.
Motor Specification
- Part Number: 17HS19-1684S-PG19
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.52Nm/73.84oz.in
- Rated Current/phase: 1.68A
- Phase Resistance: 1.8ohms
- Inductance: 4.4mH
- Frame Size: 42x42mm
- Motor Length: 48mm
- Number of Leads: 4
- Lead Length: 500mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 19:1
- Efficiency: 80%
- Backlash at No-load: <=1.5deg
- Rated Torque: 3.0Nm
- Maximun Torque: 5.0Nm
- Gearbox Length: 36.8mm
- Shaft Diameter: Φ8mm
- Shaft Length: 20mm
- D-cut Length: 15mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.52 |
| Holding Torque(oz.in) | 73.84 |
| Rated Current(A) | 1.68 |
| Frame Size(mm) | 42x42 |
| Driving Voltage(VDC) | 12-24 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 19:1 |
| Efficiency | 80% |
| Backlash at No-load | 1.5deg |
| Gearbox Length(mm) | 36.8 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 20 |
