NEMA 17 Stepper Motor Bipolar 1.8deg 1.0A 0.16Nm/22.72oz.in 42x22mm 4 Leads
- Part Number: 42HS22-1004S
- Lead Time: In Stock
- Unit Price: $7.50
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

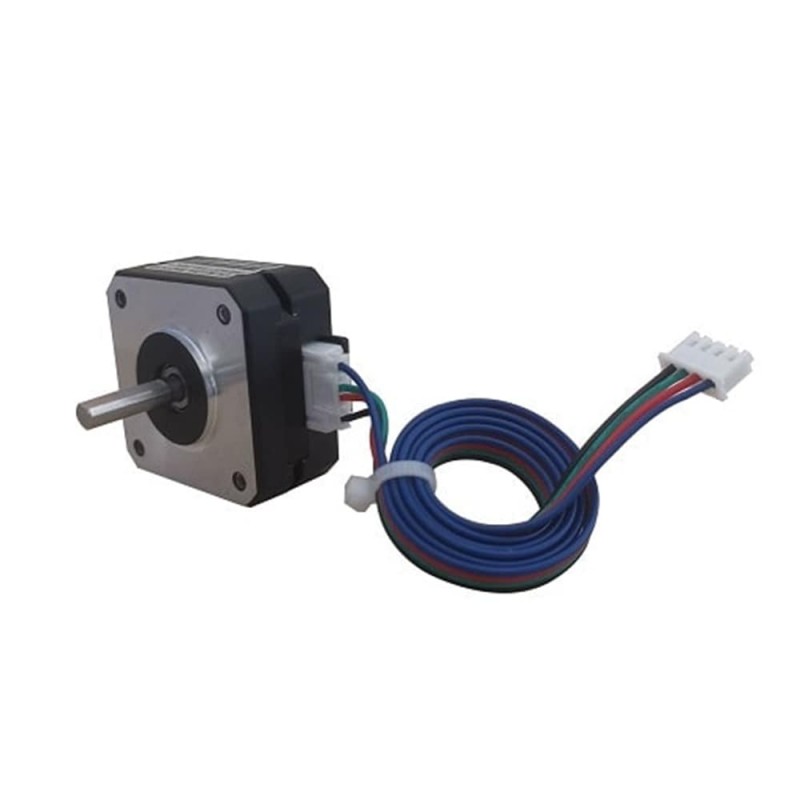

This NEMA 17 stepper motor with 22mm body length has holding torque 0.16Nm/22.72oz.in and 1.0A rated current each phase. A JST XH 2.54mm 4 Pin connector is fixed at the terminal of the wires.
Electrical Specification
- Part Number: 42HS22-1004S
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.16Nm/22.72oz.in
- Rated Current/phase: 1.0A
- Phase Resistance: 4.1ohms
- Inductance: 3.6mH
- Driving Voltage: 12-24V

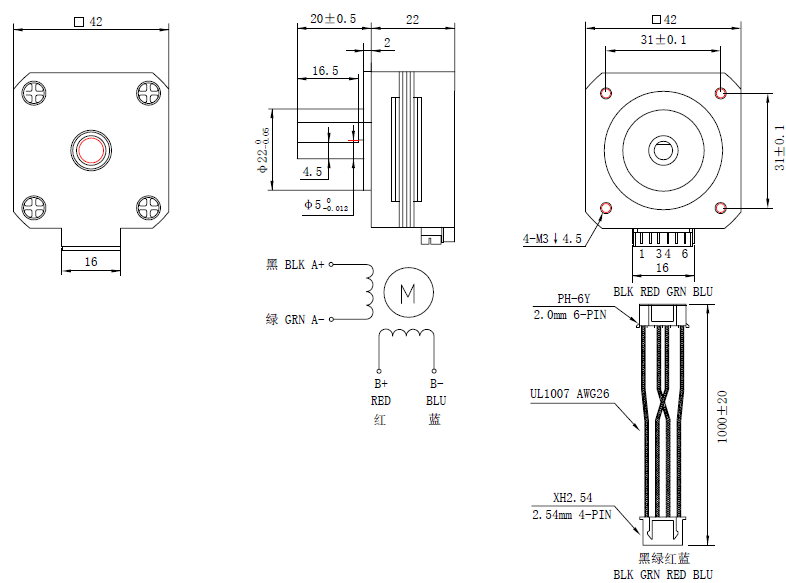

Physical Specification
- Frame Size: 42x42mm
- Body Length: 22mm
- Shaft Diameter: Φ5mm
- Shaft Length: 20mm
- D-cut Length: 16.5mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 0.14kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.16 |
| Holding Torque(oz.in) | 22.72 |
| Rated Current(A) | 1.0 |
| Phase Resistance(ohm) | 4.1 |
| Phase Inductance(mH) | 3.6 |
| Physical Specification | |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 22 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| No. of Leads | 4 |
| Lead Length(mm) | 1000 |
| Weight(KG) | 0.14 |
