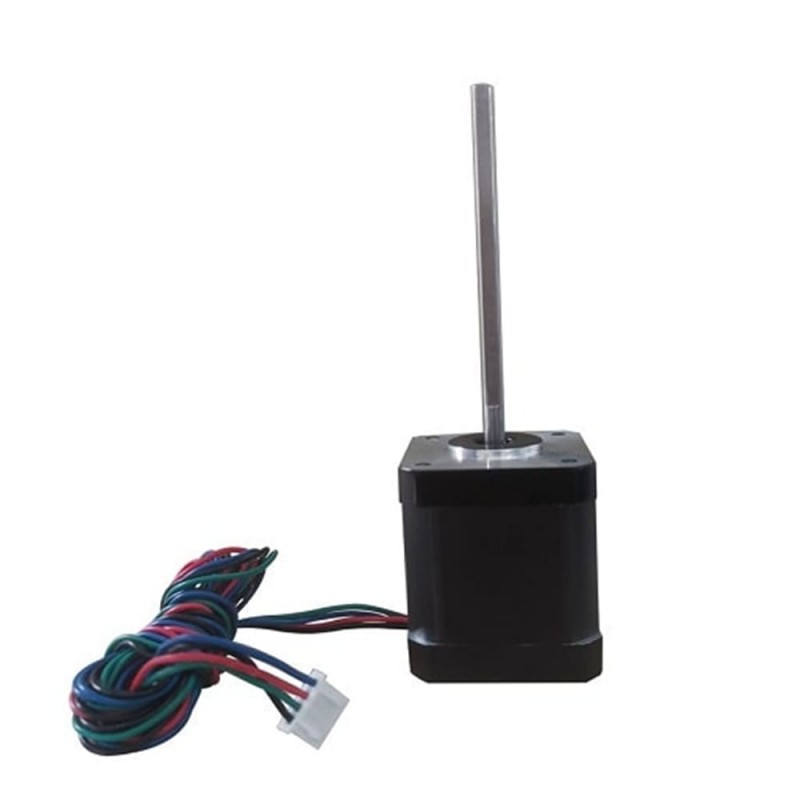

This bipolar NEMA 17 stepper motor has step angle 0.9deg with 48mm body length, each phase draws 2.0A with holding torque 0.44Nm/62.48oz.in. This ANX-K3MKT NEMA 17 Stepper Motor is specially designed for Annex K3 3D Printer Kit.
Electrical Specification
- Part Number: 42HM48-2004D80
- Step Angle: 0.9deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.44Nm/62.48oz.in
- Rated Current/phase: 2.0A
- Phase Resistance: 1.4ohms
- Inductance: 3.0mH
- Driving Voltage: 12-24V

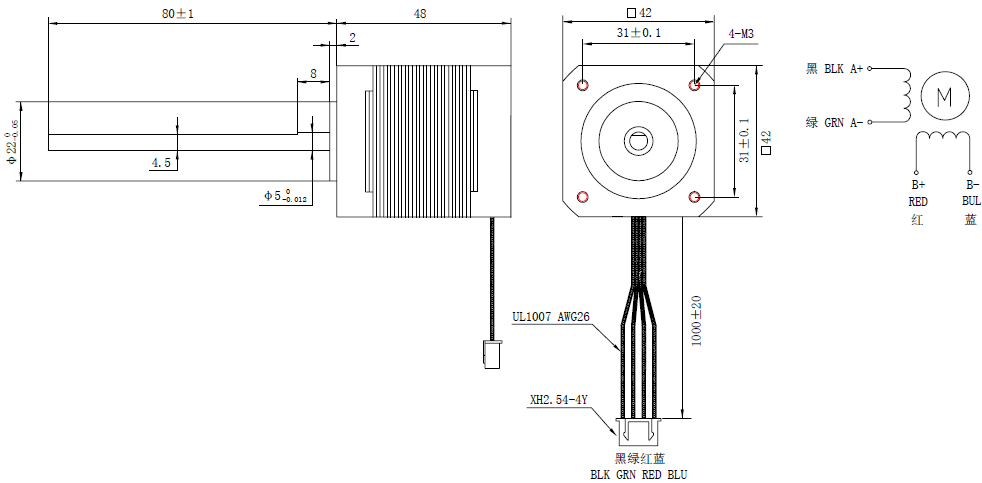

Physical Specification
- Frame Size: 42x42mm
- Body Length: 48mm
- Shaft Diameter: Φ5mm
- Shaft Length: 80mm
- D-cut Length: 70mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 0.38kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 0.9 |
| Holding Torque(Nm) | 0.44 |
| Holding Torque(oz.in) | 62.48 |
| Rated Current(A) | 2.0 |
| Phase Resistance(ohm) | 1.4 |
| Phase Inductance(mH) | 3.0 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 48 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 80 |
| No. of Leads | 4 |
| Lead Length(mm) | 1000 |
| Weight(KG) | 0.38 |
