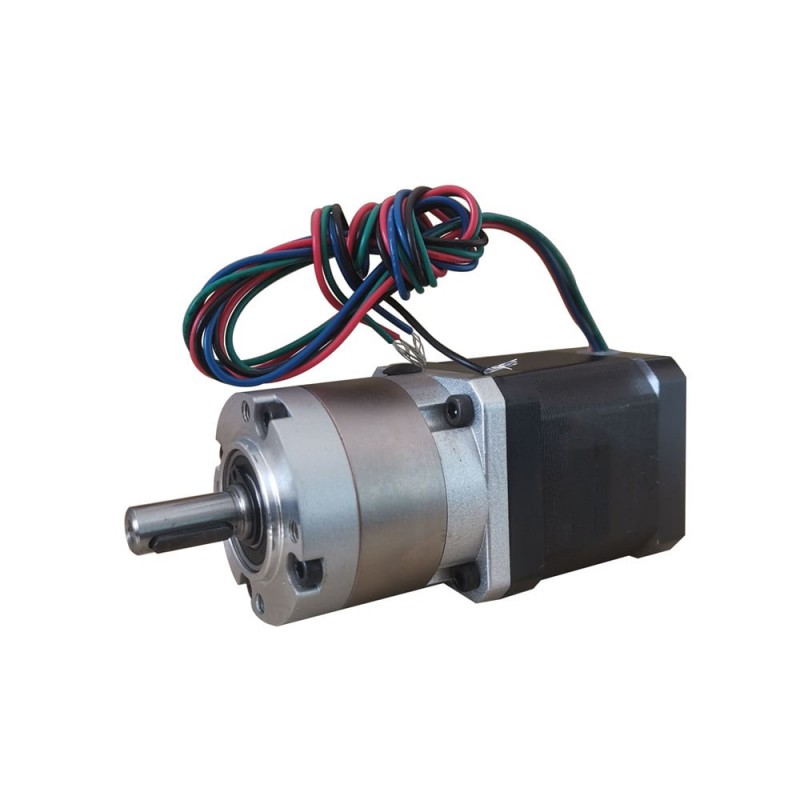

NEMA 17 Stepper Motor 0.9deg L=48mm 1.7A with Gear Ratio 10:1 High Precision Planetary Gearbox
- Part Number: 42HS48-1704S-KG10
- Lead Time: One Week
- Unit Price: $55.00
- Sales: 12
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 17 geared reduction stepper motor with 0.9degree step angle has a moderate body length 48mm and 1.7A rated current, which is integrated with a high precision & low backlash planetary gearbox of 10:1 gear ratio, generating a strong holding torque otuput upto 3.8Nm/539.6oz.in & a very low speed 0-100rpm. It's an ideal solution to the applications that require limited space but low speed and high torque.

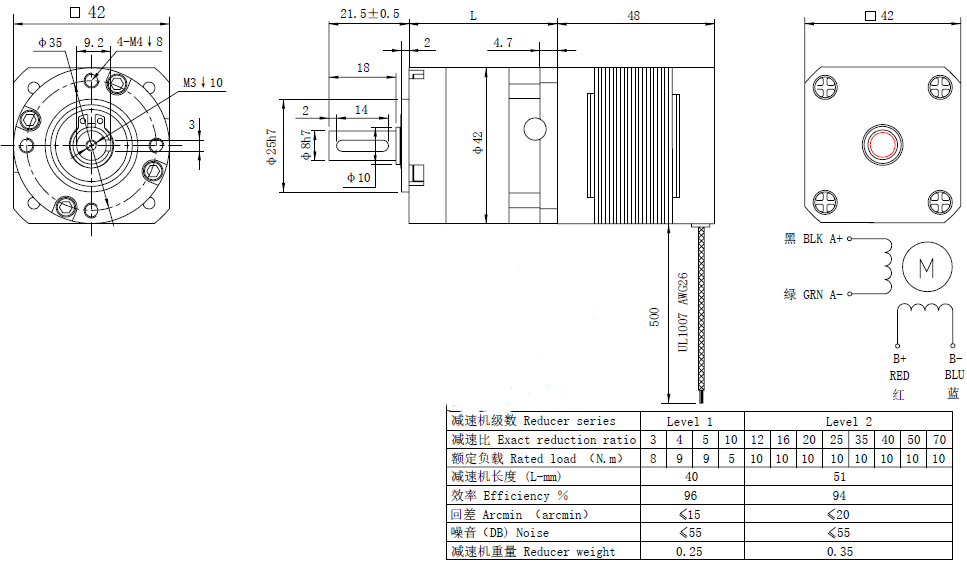

Motor Specification
- Part Number: 42HS48-1704S-KG10
- Step Angle: 0.9deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.4Nm/56.8oz.in
- Rated Current/phase: 1.7A
- Driving Voltage: 12-24V
- Frame Size: 42x42mm
- Motor Length: 48mm
- Number of Leads: 4
- Lead Length: 500mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 10:1
- Efficiency: 96%
- Backlash at No-load: 15arcmin
- Rated Torque: 5Nm/710oz.in
- Gearbo Length: 40mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21.5mm
- Keyway Length: 14mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 0.9 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.4 |
| Holding Torque(oz.in) | 56.8 |
| Rated Current(A) | 1.7 |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 48 |
| Driving Voltage(VDC) | 12-24 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 10:1 |
| Efficiency | 96% |
| Backlash at No-load | 15arcmin |
| Gearbox Length(mm) | 40 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21.5 |
